Model 10 Feeder Base Unit for 10" - 18" Vibratory Bowls

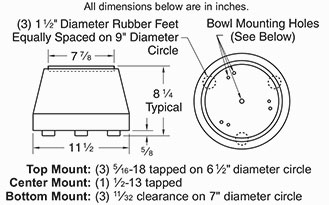

Model 10 Base Unit    Model 10 Base Unit with Cover    Model 10 Diagram

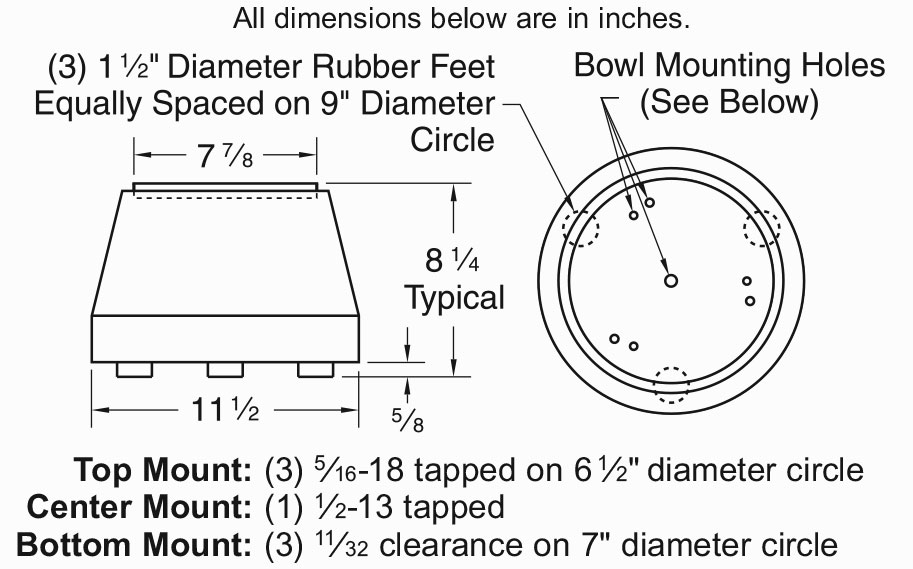

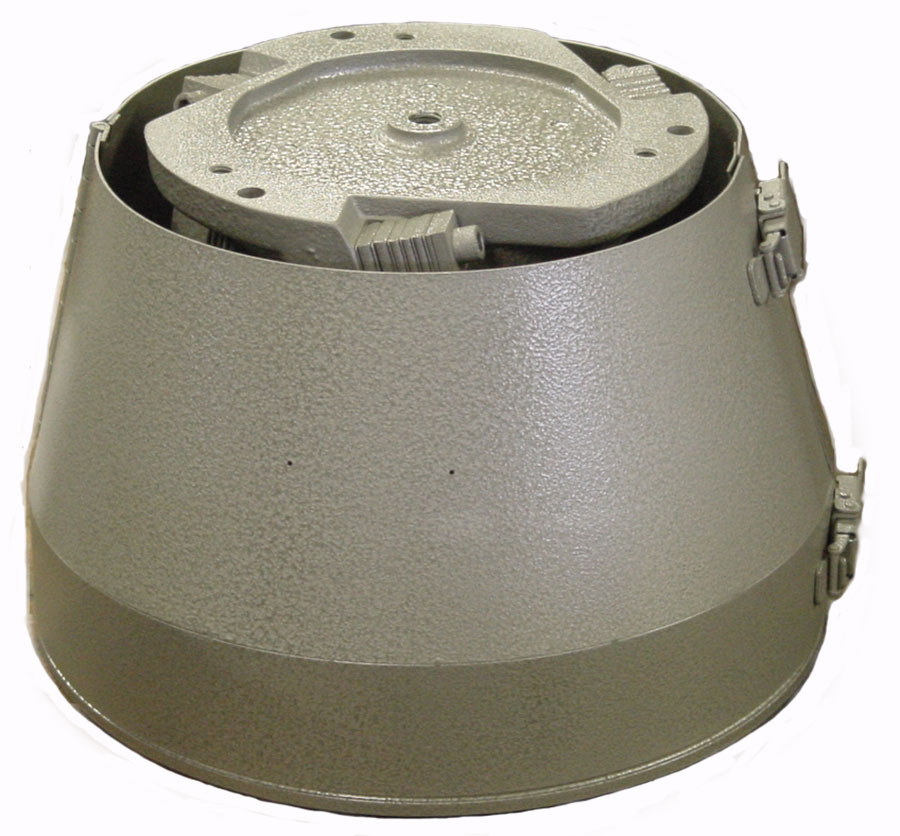

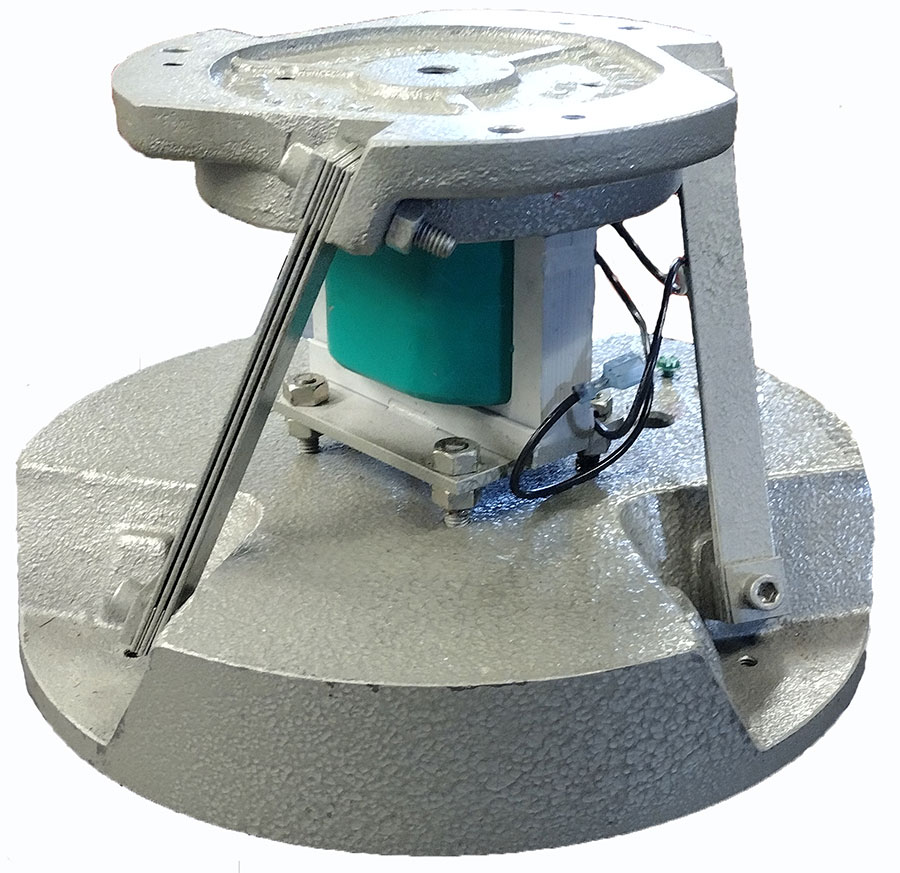

                                                Model 10 Base Unit                             Model 10 Base Unit with Cover                 All dimensions are in inches. Top Mount: (3) 5/16-18 tapped on 6                                                                                                                                                                                                                1/2'' diameter circle; Center Mount: (1) 1/2-13 tapped; Bottom                                                                                                                                                                                                                      Mount: (3) 11/32 clearance on 7'' diameter cirlce



Model Number Rotation Input Voltage Input Current Use Controller

10CC.1

CC 120 VAC 2.5A Model 6000.1

10CC.2

CC 240 VAC 1.2A Model 6000.2

10CK.1

CK 120 VAC 2.5A Model 6000.1

10CK.2

CK 240 VAC 1.2A Model 6000.2

*CC stands for Counter-clockwise
*CK stands for Clockwise
*Now available in 24V!

Spring Angle 25°
Shipping Weight 74 pounds
Foot Locator when using 0508/0508S Stud Feet 7901
Foot Locator when using 1008/1008S Bumper Feet 7911
Single Stud Foot - Standard 0508
Single Stud Foot - Soft 0508S
Double Stud Foot 0510-4
Bumper Style Foot - Hard 1008
Bumper Style Foot - Soft 1008S
Locator Style Foot 1508



Model 10 Base Unit Resources

Model 10 Assembly
5/24/2022, 9:12 AM
Model 10 Dimensional Drawing DWG
8/11/2016, 12:55 PM
Model 10 Dimensional Drawing PDF
8/11/2016, 12:56 PM
Model 10 Dimensional Drawing WMF
8/11/2016, 12:56 PM
