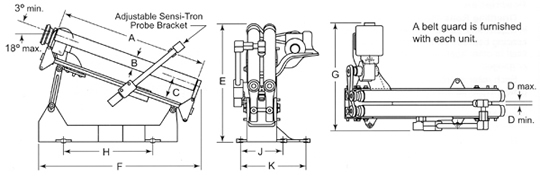

Orienting Roll Dimensions and Weights
| Model Number | A (IN) | B (IN) | C (IN) | D (MIN-MAX) (IN) | E (MIN-MAX) (IN) | F (IN) | G (IN) | H (IN) | J (IN) | K (IN) | Shipping Weight (Pounds) |
|
7600 |
12 | 1 | 2 | 0 - 3/4 | 7 3/4 - 10 7/8 | 13 1/4 | 12 5/8 | 7 | 4 7/8 | 7 5/8 | 30 |
|
7700 |
18 | 1 1/2 | 3 | 0 - 7/8 | 10 3/16 - 13 1/2 | 19 1/4 | 13 13/16 | 10 7/8 | 5 3/8 | 7 3/4 | 55 |
|
7800 |
24 | 2 | 4 | 1/4 - 1 3/8 | 13 5/16 - 18 5/8 | 25 1/2 | 14 13/16 | 13 5/8 | 7 3/8 | 11 1/2 | 110 |
