6" to 8" Vibratory Feeder Bowls For Use With Model 5 Base Unit
|
Bowl Diameter (Inches) |
Track Width (Inches) |
Bowl Depth (Inches) |
Bowl Weight (Pounds) |
Bowl Part Number | Track Configuration | |
| Clockwise | Counterclockwise | |||||

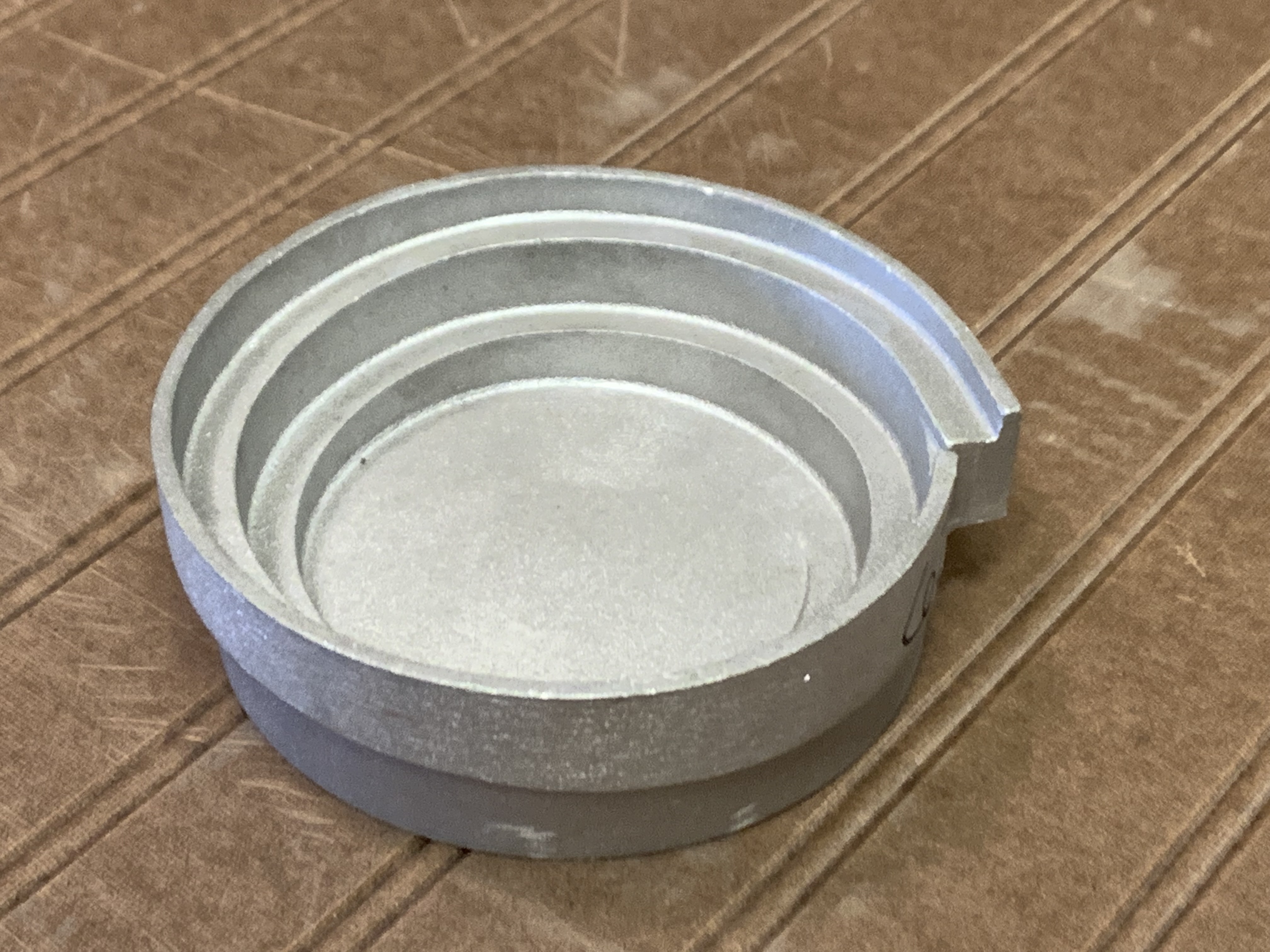

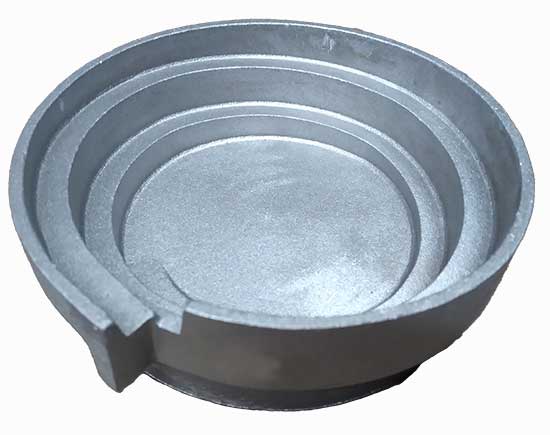

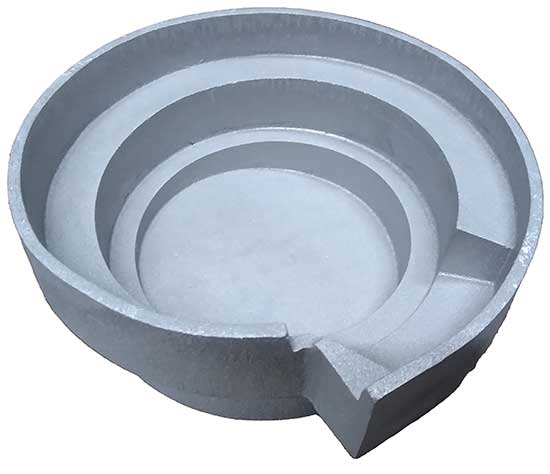

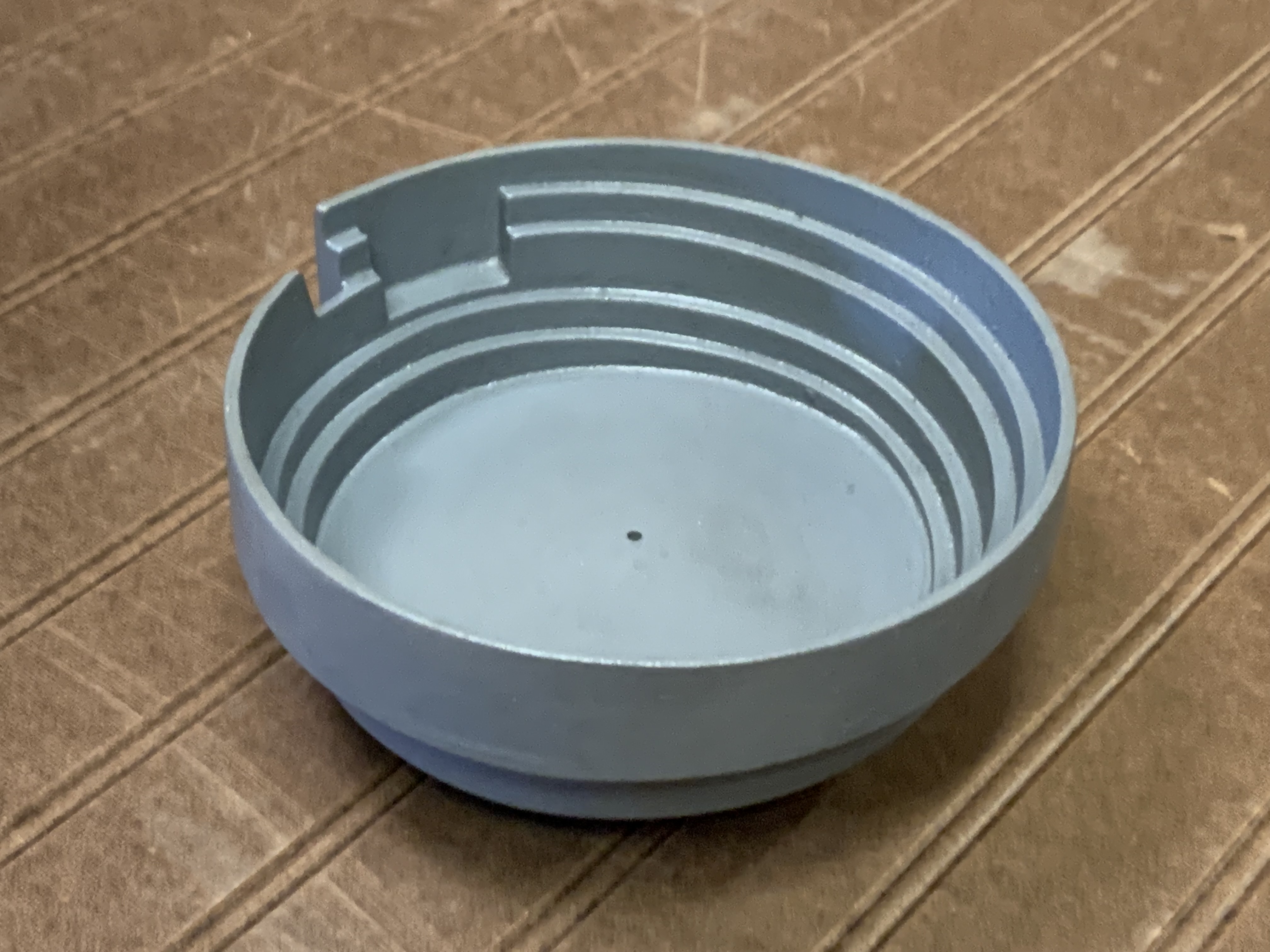

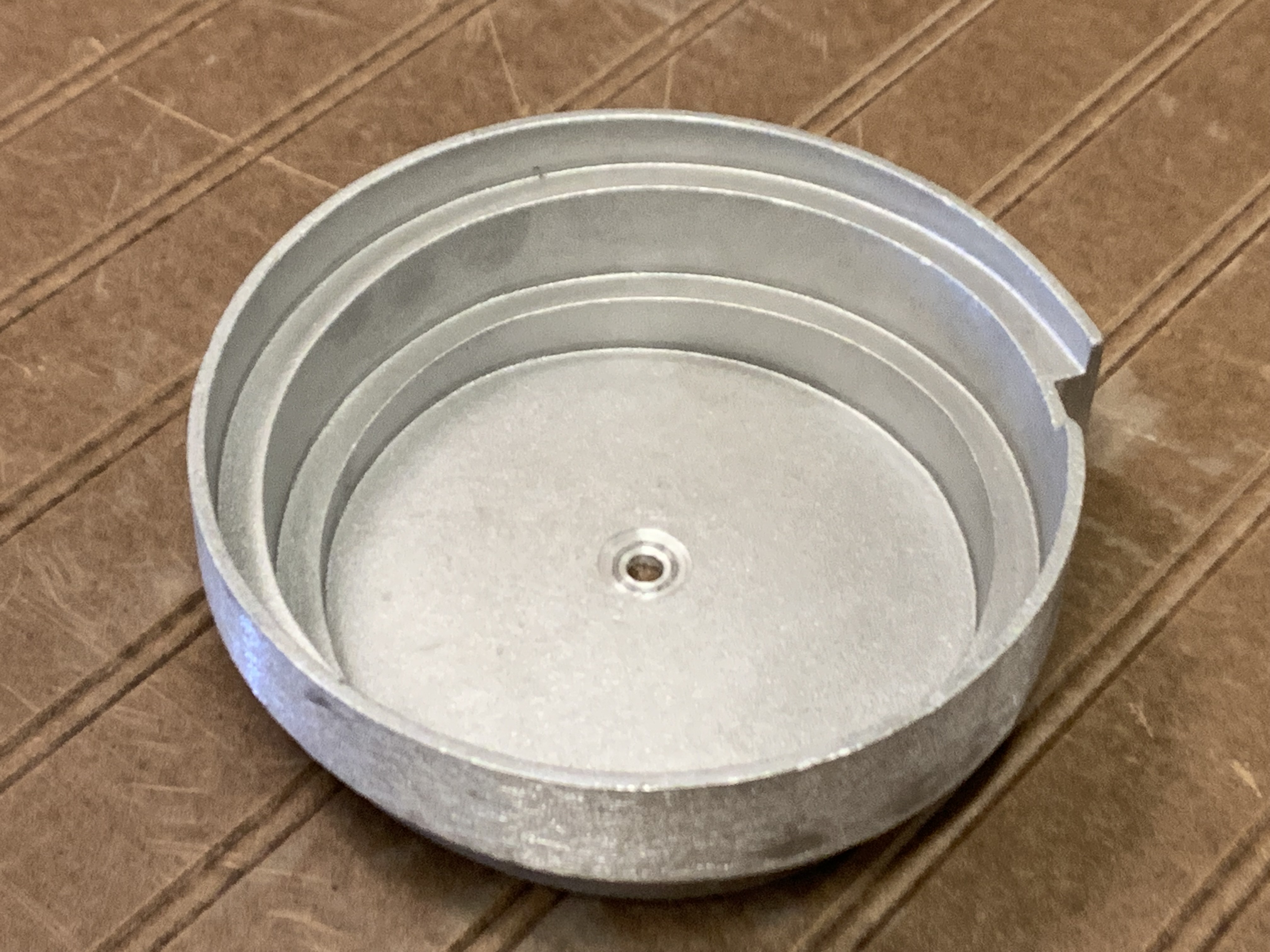

| 6 | 3/8 | 1 7/16 | 1 3/4 |
|
|
Positive Track |

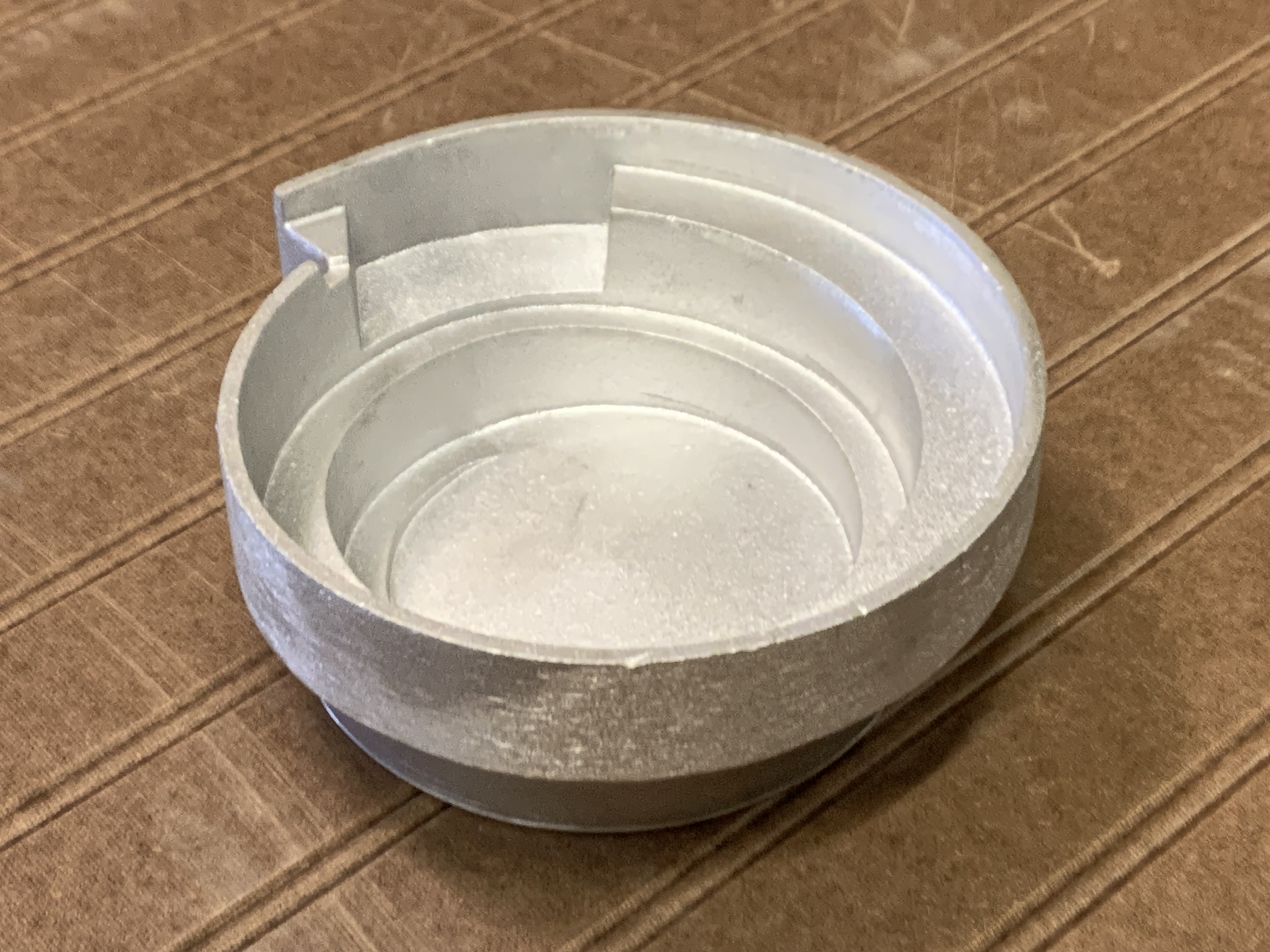

| 7 | starts 3/8, ends 13/16 | 2 3/8 | 2 1/2 |
|
|
Positive Track with Pocket Cast in Discharge |

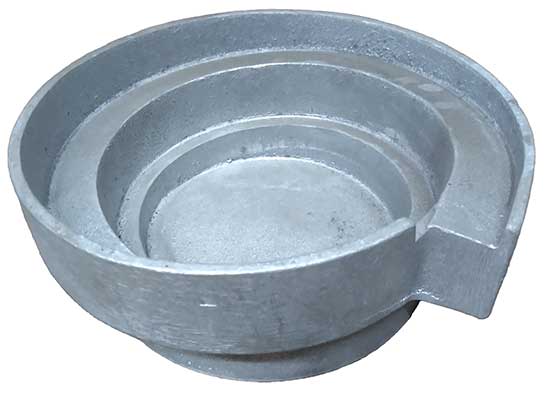

| 7 | starts 3/8, ends 13/16 | 2 3/8 | 2 1/2 |
|
|
Positive Track with Extra Stock in Discharge |

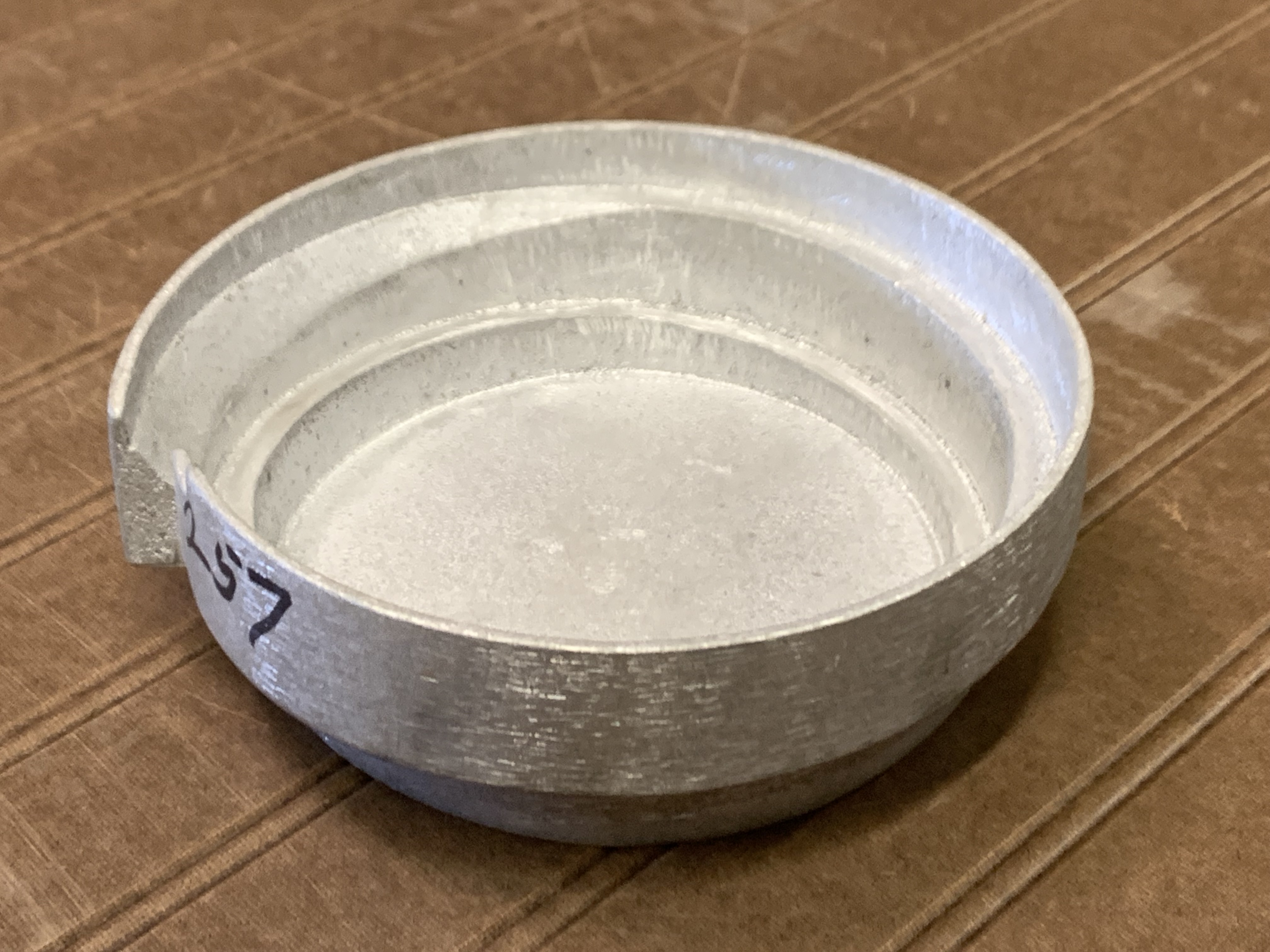

| 8 | 3/16 | 2 1/8 | 1 1/2 |
|
Dual Track with Pocket Cast in Discharge | |

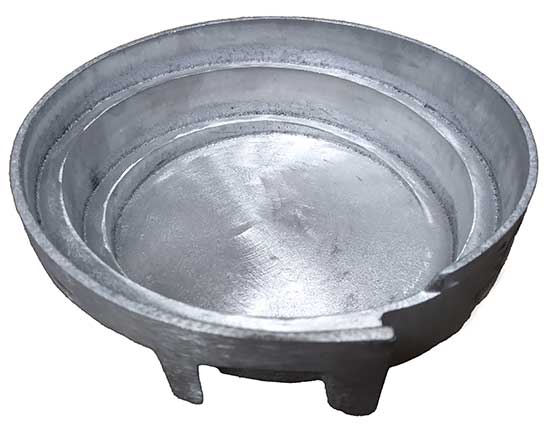

| 8 | 3/16 | 2 1/8 | 3 |
|
Dual Track | |

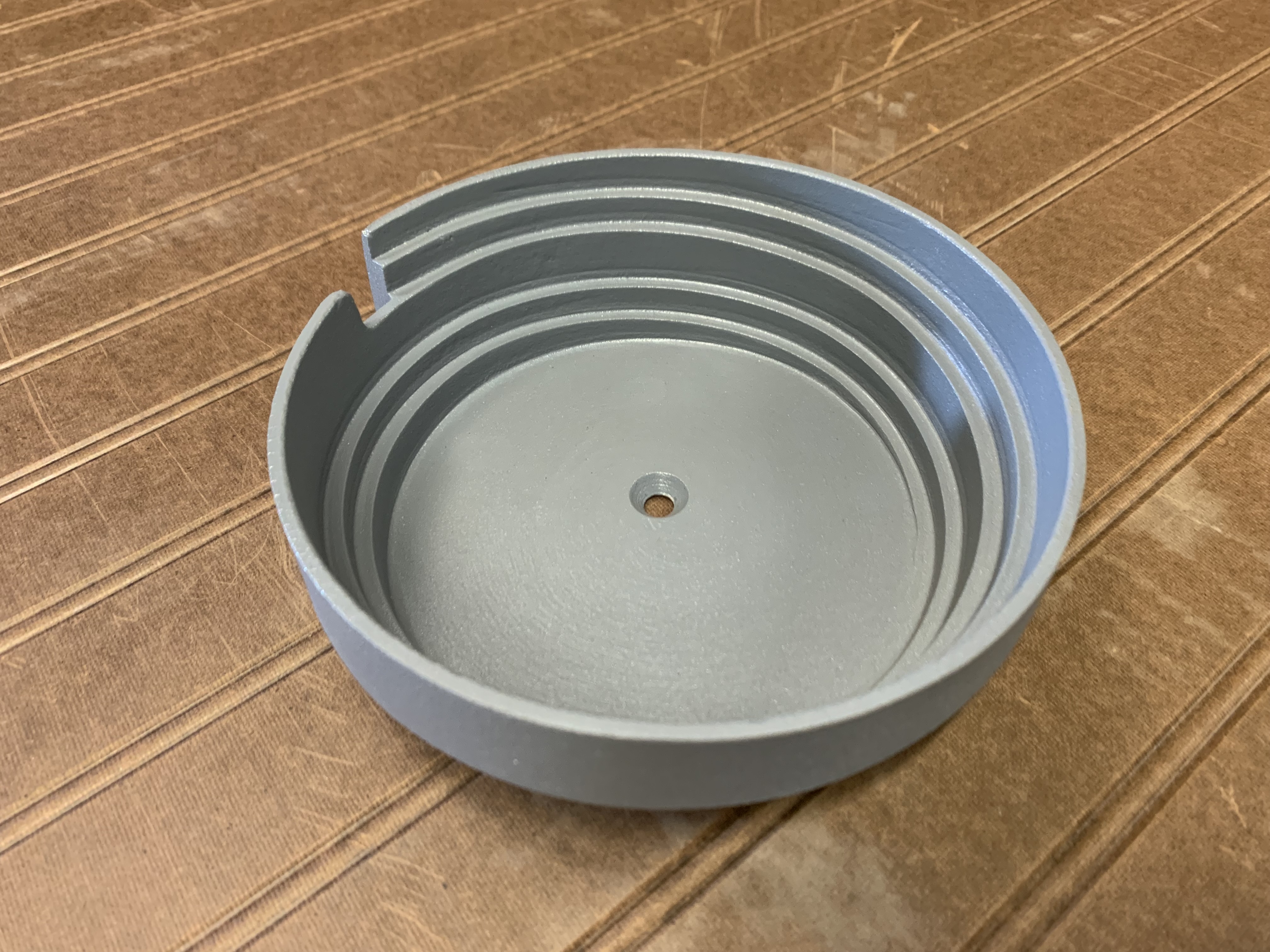

| 8 | 3/8 | 2 1/8 | 1 3/4 |
|
|
Positive Track |

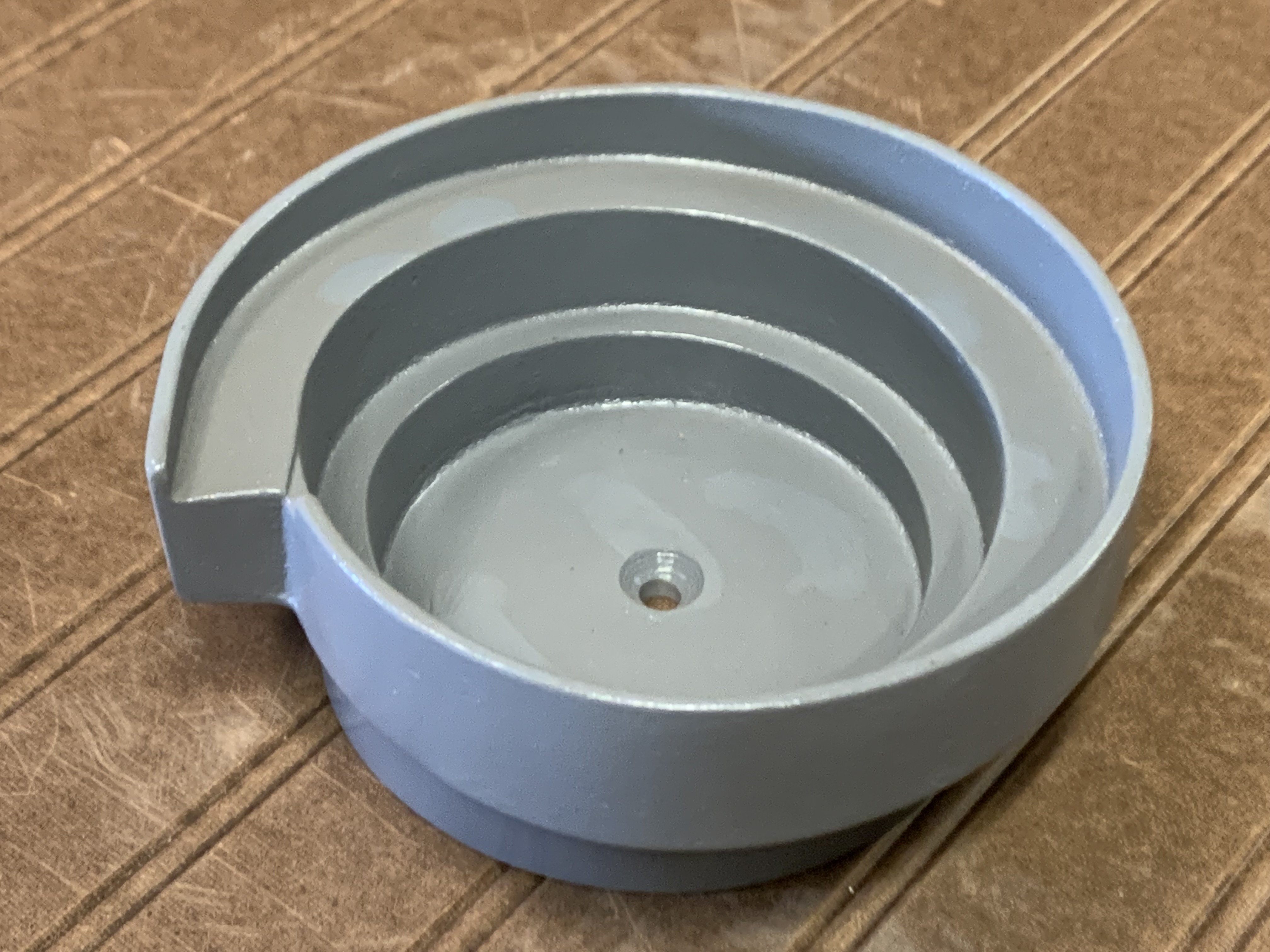

| 8 | 3/8 | 2 1/8 | 1 3/4 |
CB248
|
|
60º Negative Track |
Note: If a picture of the bowl you want is not available, please refer to the model's opposite clock operation as either picture is a mirror image of the other.
Dimensional Drawings for 6-8" Bowls (DWG)
