24" to 25" Vibratory Feeder Bowls For Use With Model 20 Base Unit

Bowl Diameter

(Inches)

Track Width

(Inches)

Bowl Depth

(Inches)

Bowl Weight

(Pounds)

Bowl Part Number Track Configuration
Clockwise  Counterclockwise
25 1 5 1/2  39

CB136

CB059

Dual Track
24 1 1/2 5 1/4 39

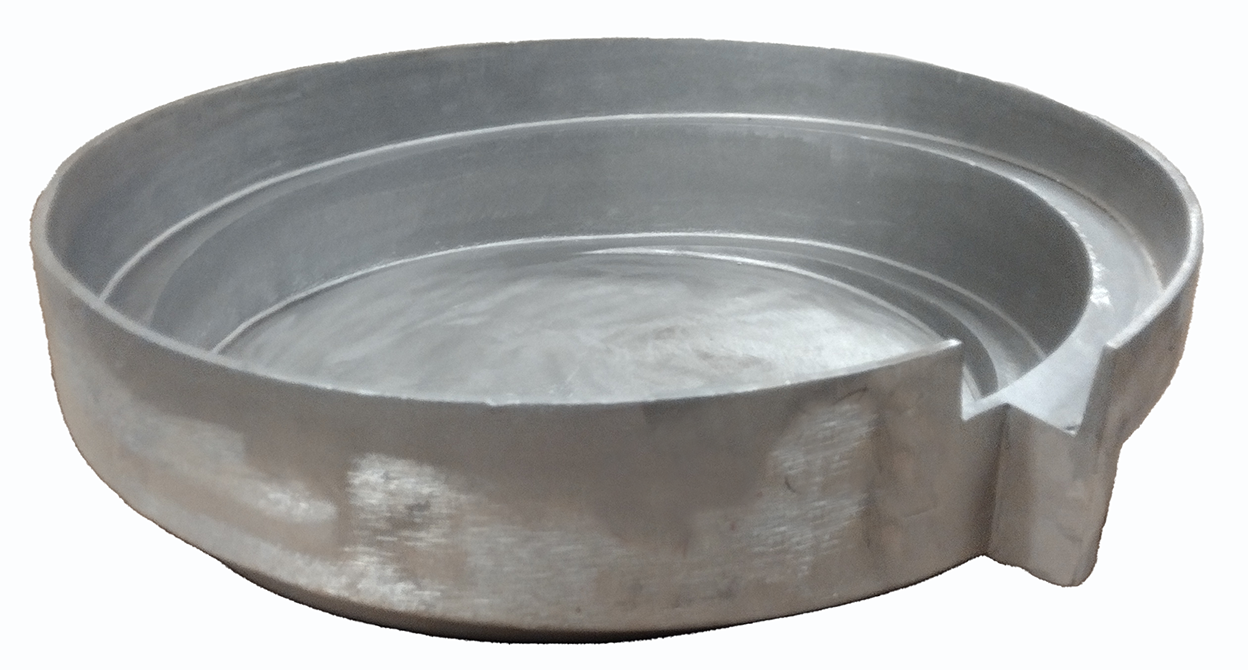

CB064

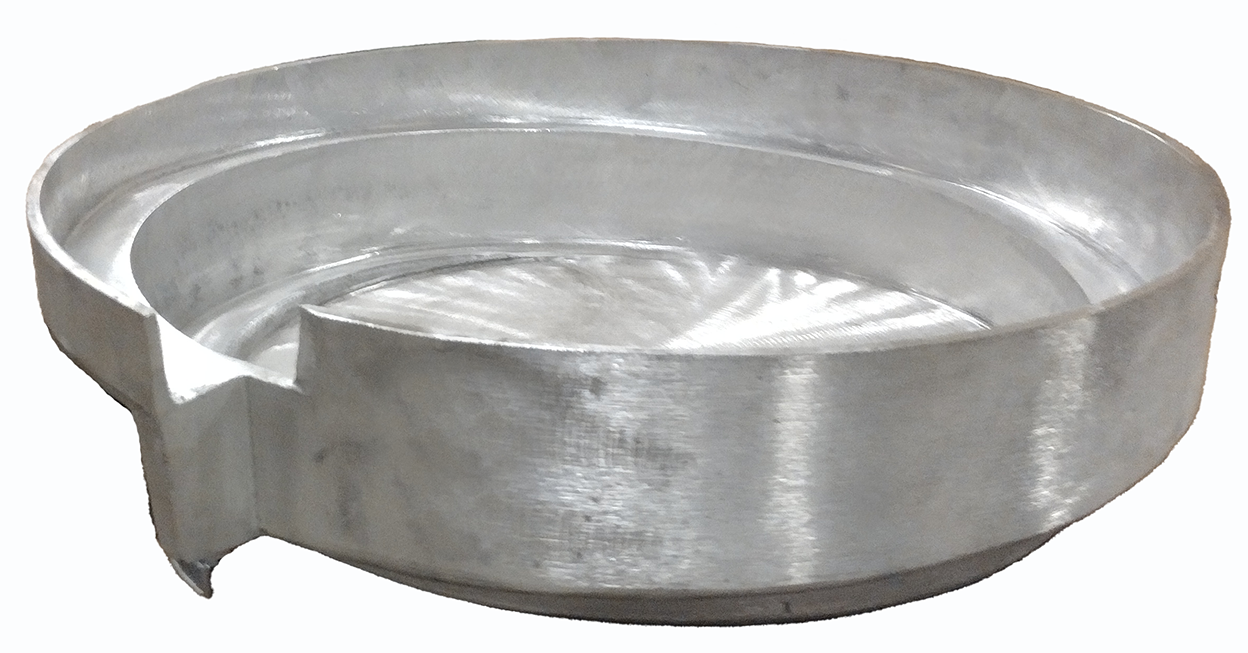

CB063

Positive Track
24 1 1/2 5 1/4 41

CB084

  120º V-Track
24 1 1/2 5 1/4 45

CB164

60º Negative Discharge

Note: If a picture of the bowl you want is not available, please refer to the model's opposite clock operation as either picture is a mirror image of the other.



Dimensional Drawings for 24-25" Bowls (DWG)

CB059
5/15/2017, 2:26 PM
CB063
5/15/2017, 2:26 PM
CB064
5/15/2017, 2:27 PM
