10" to 11" Vibratory Feeder Bowls For The Model 8 Base Unit

Bowl Diameter

(Inches)

Track Width

(Inches)

Bowl Depth

(Inches)

Bowl Weight

(Pounds)

Bowl Part Number

Clockwise  Counterclockwise
Track Configuration
 10 5/8  3 1/2  3 3/4

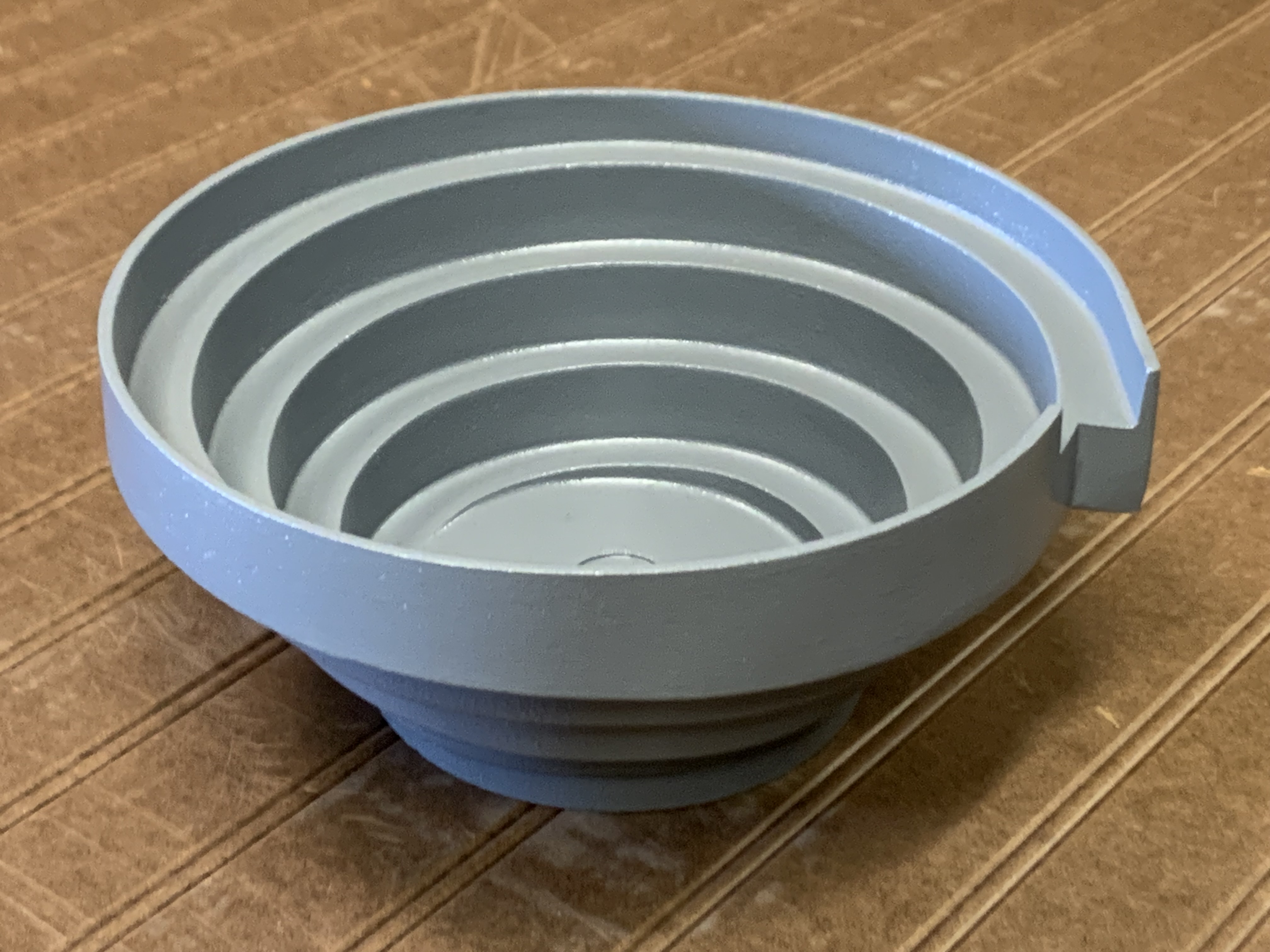

CB404

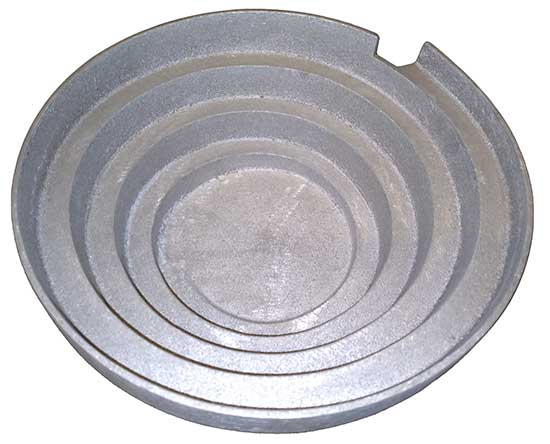

CB405

Positive Track (3 1/2 Revolutions)
11 1/2 2 3

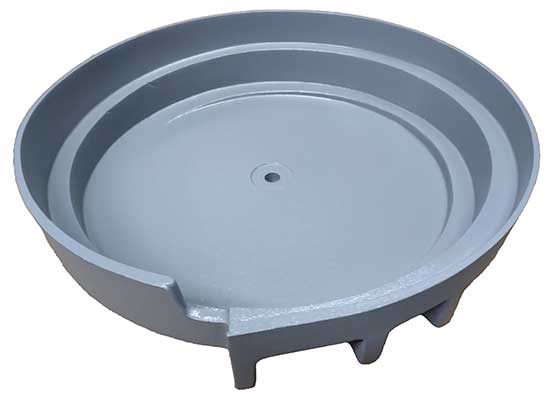

CB274

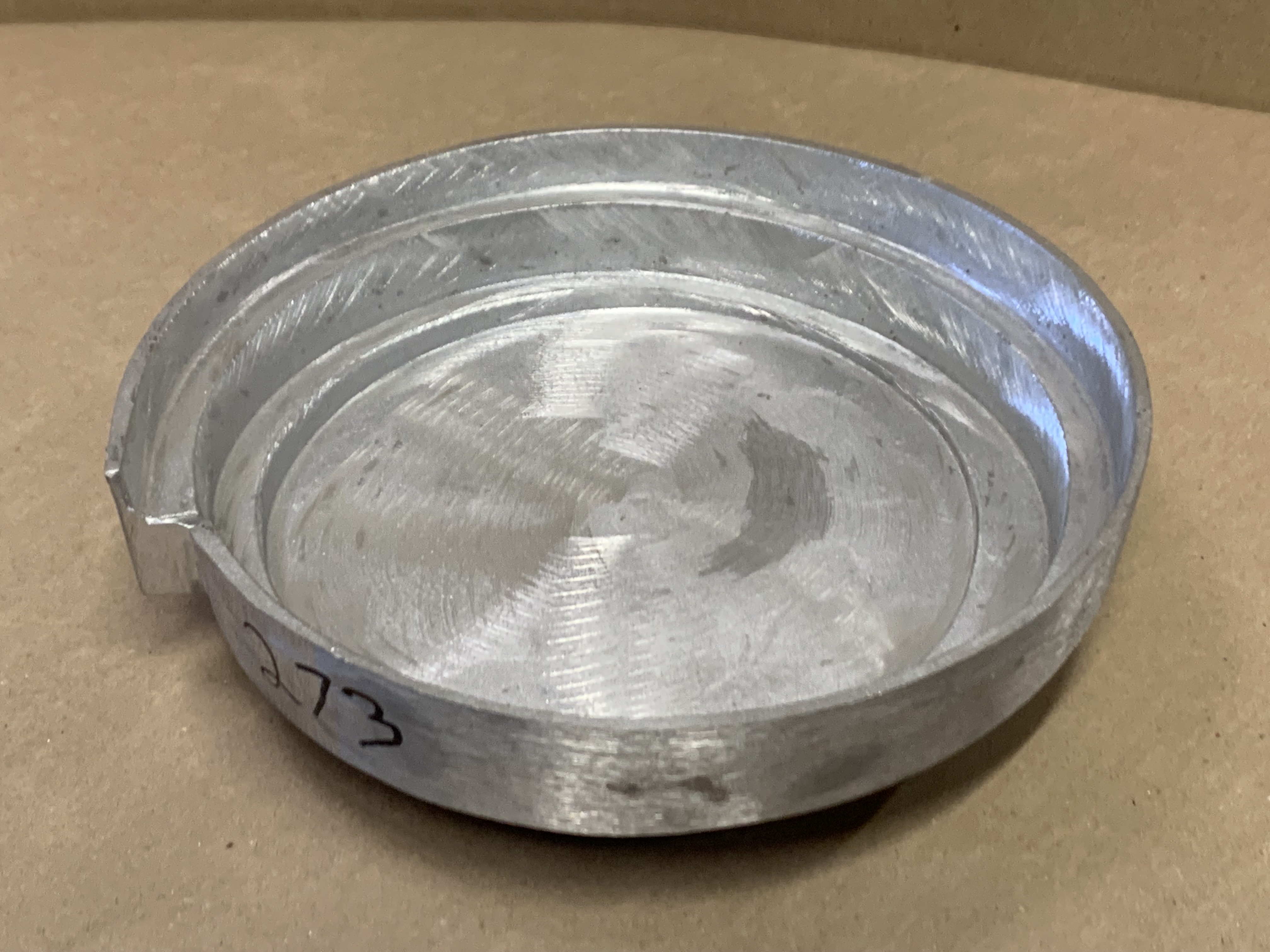

CB273

Positive Track
11 1/2 2 3 1/2



CB353

120º V-Track
11 3/4 2 3

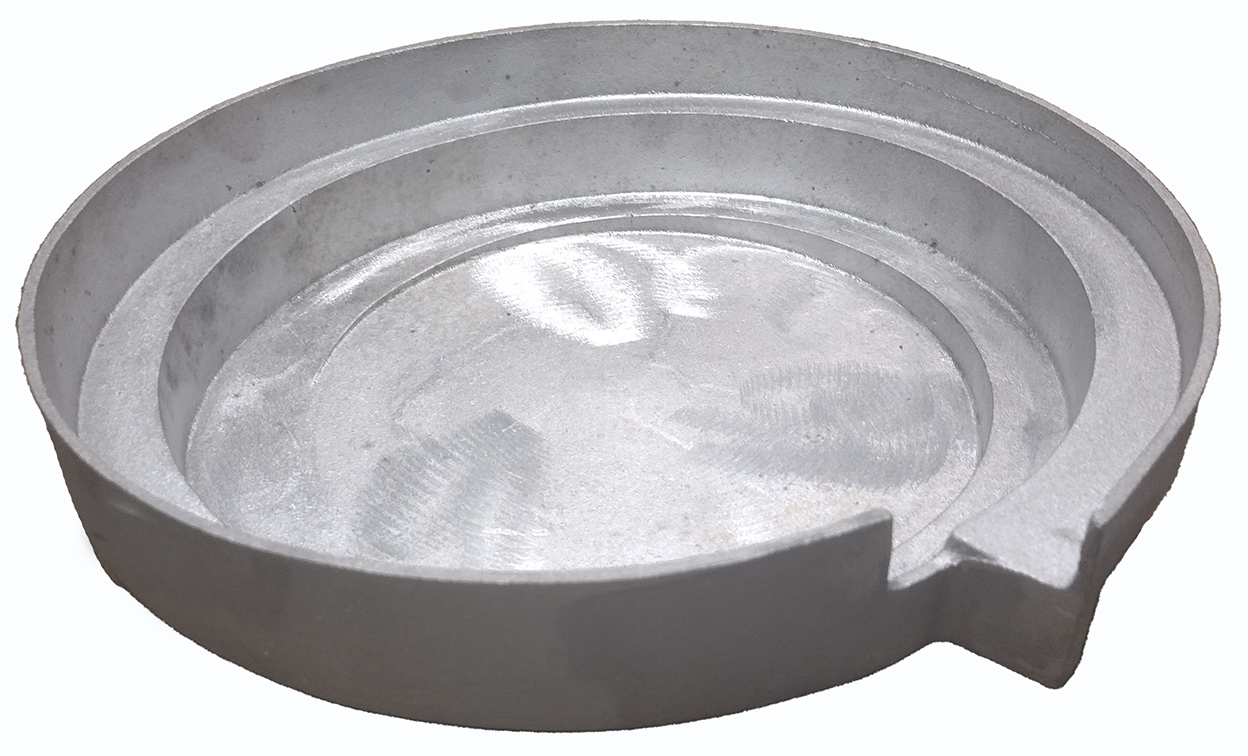

CB276

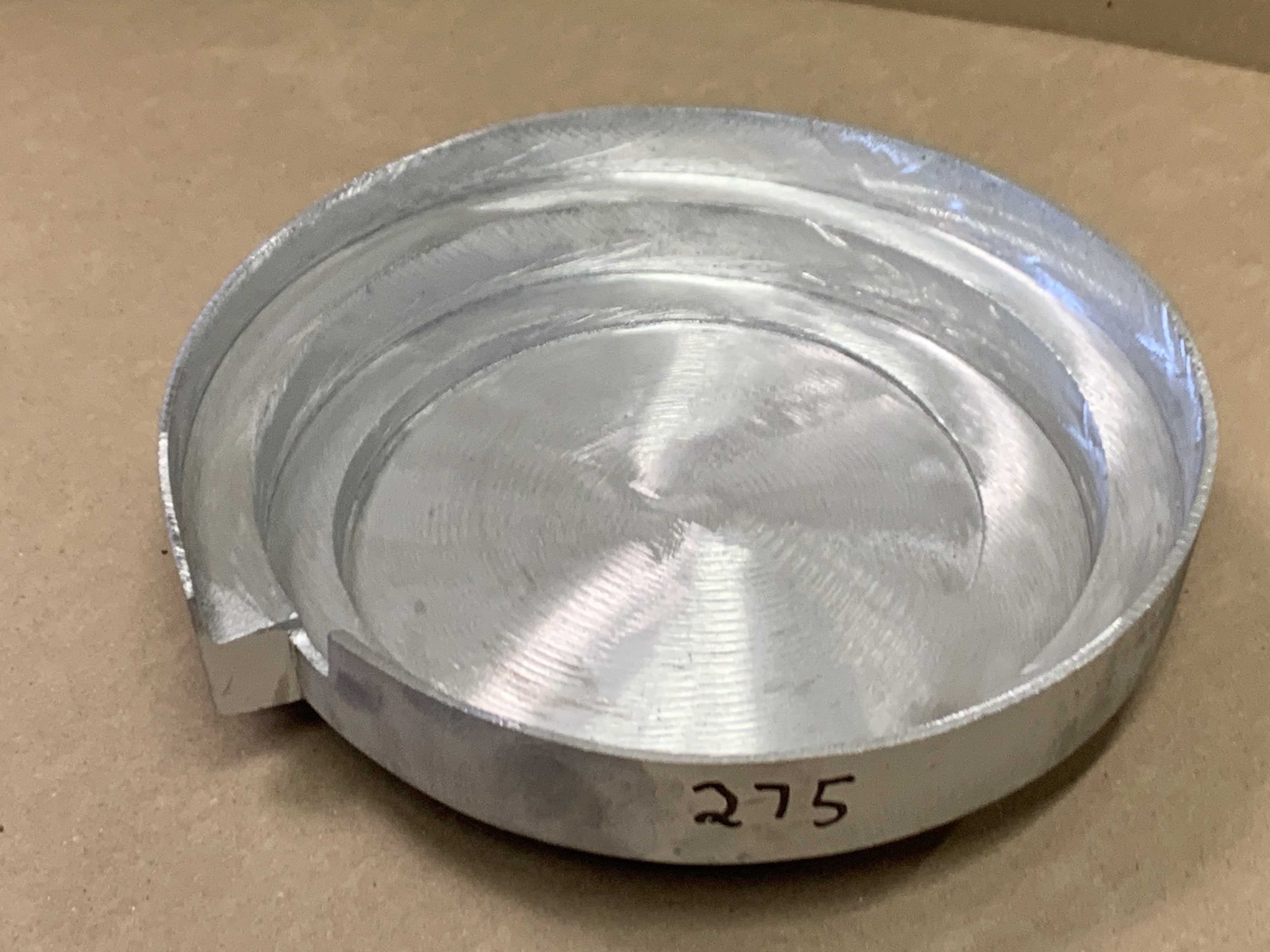

CB275

Positive Track
11 3/4 2 3 1/2

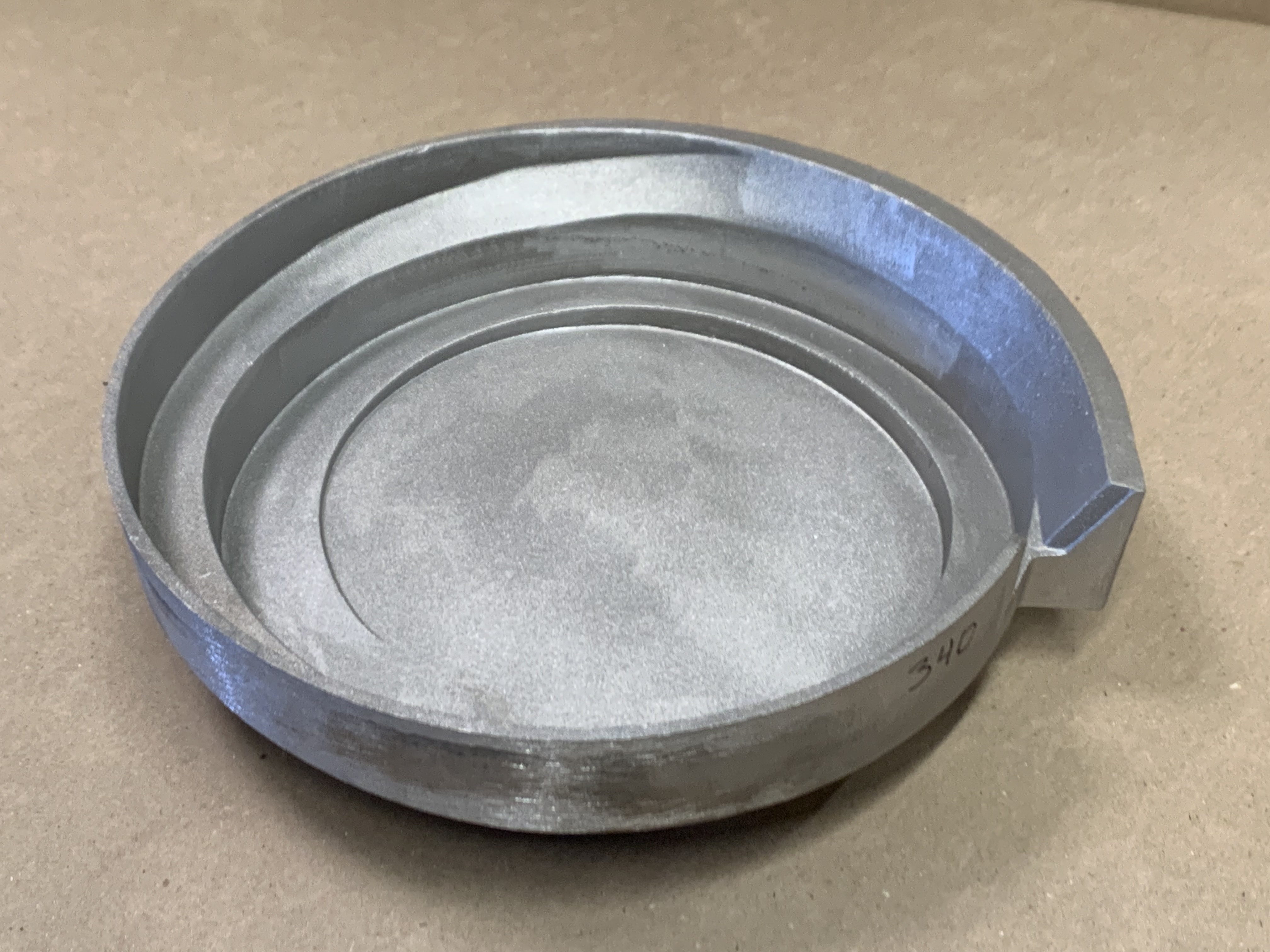

CB340

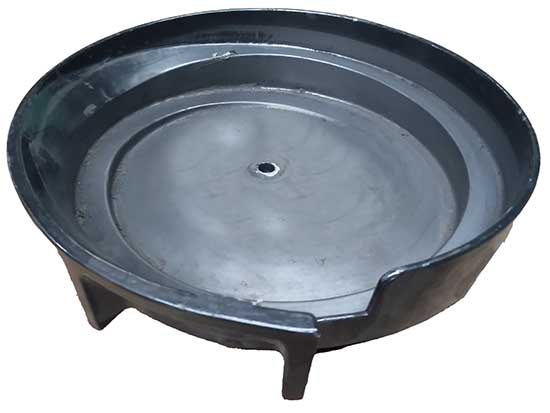

CB341

60º Negative Discharge

Note: If a picture of the bowl you want is not available, please refer to the model's opposite clock operation as either picture is a mirror image of the other.

CK = CLOCKWISE          CC = COUNTER-CLOCKWISE

Dimensional Drawings for 10-11" Bowls (DWG)

CB273
8/31/2016, 3:26 PM
CB274
3/15/2017, 10:47 AM
CB275
8/31/2016, 3:27 PM
CB276
3/15/2017, 10:46 AM
CB340
3/15/2017, 10:47 AM
CB341
8/31/2016, 3:28 PM
CB353
8/31/2016, 3:27 PM
CB404
3/15/2017, 10:48 AM
CB405
8/31/2016, 3:26 PM



View All Cast Aluminum Bowls         Contact Us
