Vibratory Feeder Rubber Feet

Rubber feet for a vibratory feederAutomation Devices manufactures several styles of rubber feet. Two main types are Standard and Locator Style. The Standard type includes Single-Stud, Double-Stud and Bumper Styles.

Rubber Mounting Feet

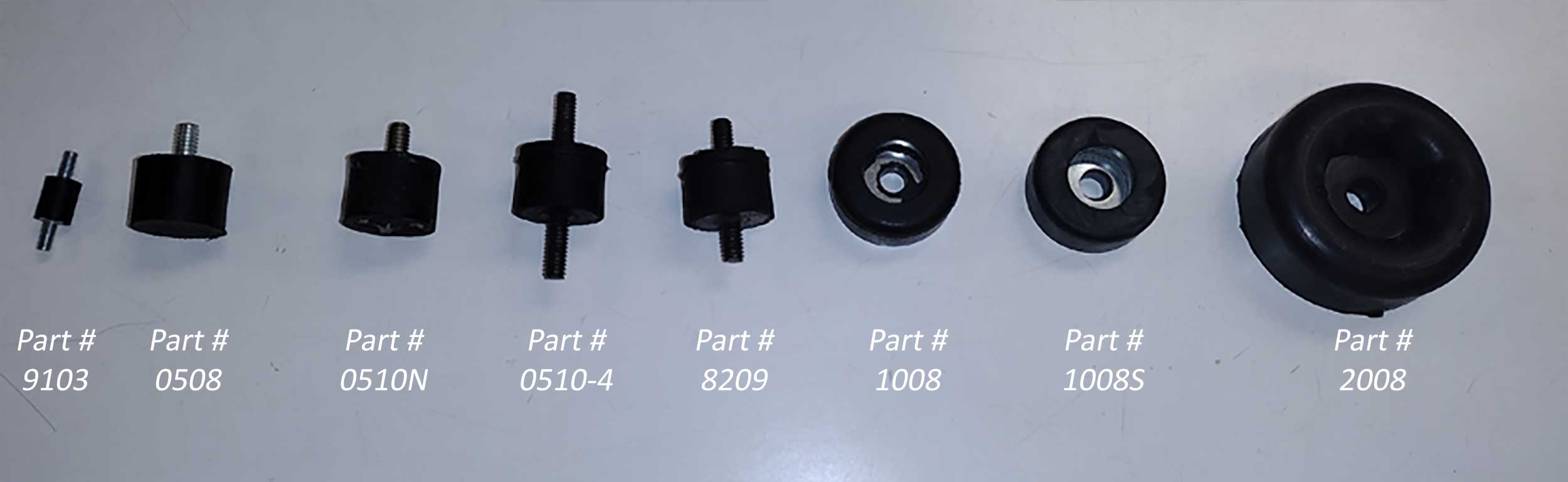

Synthetic rubber-like compounds such as Neoprene and Buna N are used in the manufacturing of most ADI mounting feet. Both of these compounds exhibit good resistance to oil, oxygen, heat, and flame. They have good abrasion resistance and will not elongate when cut. Part numbers 0508S, 1008, 1008S, 2008, and 2008S are not suitable for outdoor use.



Double stud rubber feet for vibratory feeder
Double stud rubber feet for vibratory feeder
Single stud rubber feet for vibratory feeder
Single stud rubber feet for vibratory feeder

Double stud rubber feet vibratory feeder

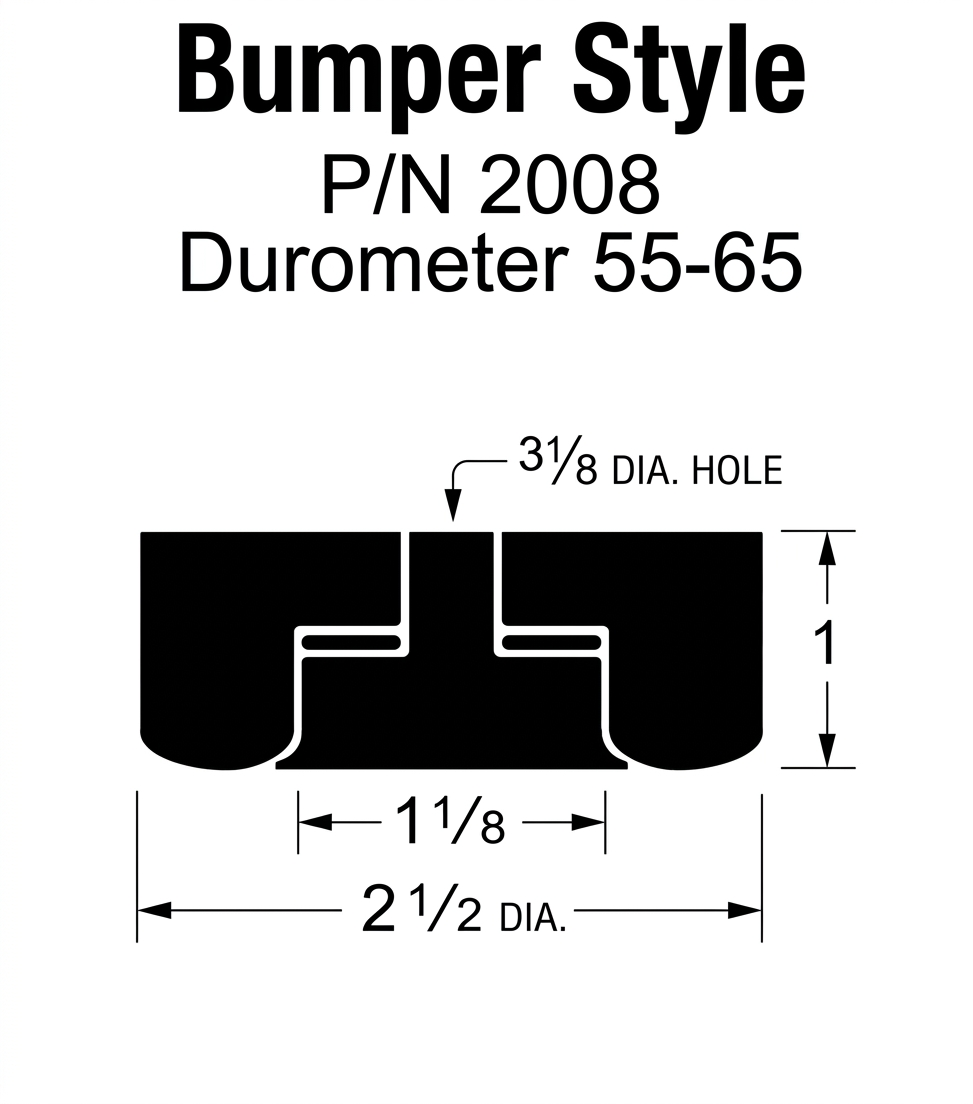

Bumper rubber feet for vibratory feeder

Bumper style rubber feet for vibratory feeder

Double stud rubber feet for vibratory feeder



Bumper style rubber feet for vibratory feeder

Locator Style Rubber FootLocator Style Rubber Feeder Feet

Locator Style Rubber Feet combine the vibration isolation function of a rubber foot with the secure feeder bowl alignment of the standard Foot Locator. Once secured, the feeder can be moved in and out of a production area with no loss of alignment to a discharge track.



Part Number Use on Base Unit A B C D E F G
(Inches)

 0808

 5.8  2 1/2 1 1/8  1/2  1 7/16 5/8  9/32  1/2

1508

10, 15  3 1/4  3/4  1 3/4 1 1/2  13/32  1/2

3008

 20, 25, 30, 5500 Hopper 2 3/4  2 1/8 1 1/2  7/16  3/4



Locator Style Base 815
Locator Style Base 816
Locator Style Base 817





Rubber Feet Resources
