Stainless Steel Vibratory Feeder Bowls

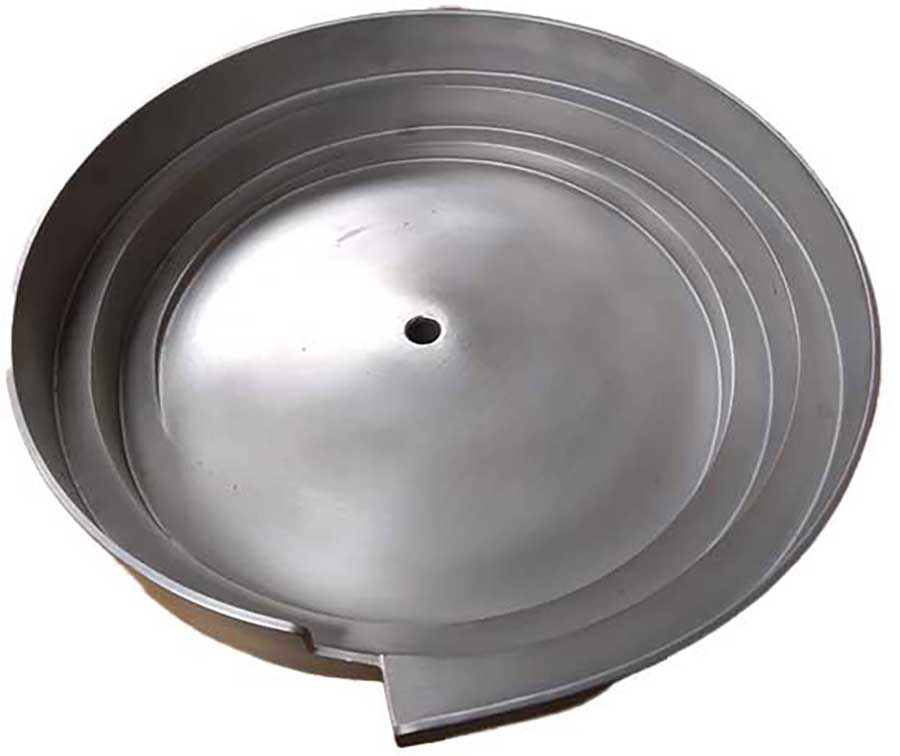

 Cascade Stainless Steel FeederFabricated stainless tooled vibratory bowls account for nearly 80% of the tooled bowls produced at our facility at any given moment. Our customers expect and receive fast delivery on straightwall and cascade stainless steel vibratory feeder bowls. Need a specially fabricated bowl? We welcome inquiries.

  • Vibratory Feeder Bowl diameters and track widths can be designed for the particular part being fed.
  • Fabricated vibratory bowls are available in both STRAIGHTWALL and CASCADE construction.
  • Stainless extends wear in abrasive applications, reducing maintenance and repair costs.
  • 316 Stainless Feeder Bowl Available

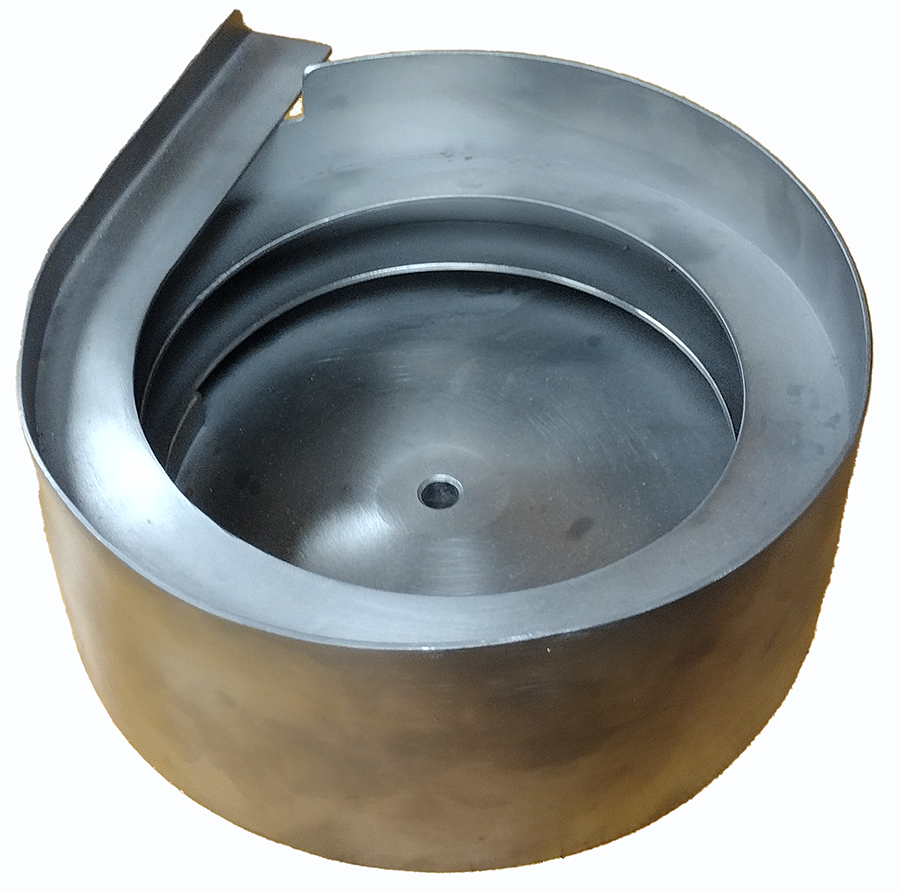

Blank Straightwall Stainless Steel Feeder BowlWhether you choose ADI to tool your bowls or you tool your own, you will always receive the parts feeding industry's most expert advice and assistance.

Disclaimer

Due to the volatility of stainless steel prices, stainless steel bowls are quoted at time of request.

Straightwall Stainless Steel Vibratory Feeder Bowls

Bowl Diameter

(Inches)

Track Width

(Inches)

Bowl Depth

(Inches)

Bowl Weight

(Pounds)

Bowl Part Number Use With Base Unit
Clockwise Counter-Clockwise
12 1/2 2 1/2 12

FB576

FB577

10
18 1 3 1/2 28

FB580

FB581

15 or 18
24 1 1/2 4 37

FB584

FB585

20 or 25
30 2 5 48

FB588

FB589

25 or 30

Contruction Notes:

  • Straightwall vibratory feeder bowls are fabricated from 12 or 16 gauge #304 stainless steel on 12 inch diameter and smaller bowls and from 10 or 12 gauge on larger bowls.
  • Standard bowl tracks consist of 1 1/2 revolutions. The track configuration is 7° positive.
  • All standard stainless parts feeder bowls have a brushed finish.
  • Electropolishing and Hand Polishing are available upon request.

Cascade Vibratory Feeder Bowls

Bowl Diameter

(Inches)

Track Width

(Inches)

Bowl Depth

(Inches)

Bowl Weight

(Pounds)

Bowl Part Number Use With Base Unit
Clockwise Counter-Clockwise
8 3/8 2 5

FB5600

FB601

5 or 8
11 3/4 2 6

FB602

FB603

8
12 1 2 1/2 8

FB604

FB605

10
14 3/4 4 9

FB606

FB607

10
18 1 4 12

FB610

FB611

10
18 1 1/4 4 13

FB612

FB613

15
24 1 1/2 5 1/2 29

FB618

FB619

15
30 2 7 60

FB620

FB621

25

Construction Notes:

  • Cascade fabricated vibratory bowls are made using 10 gauge #304 stainless steel throughout.
  • Standard vibratory bowl tracks consist of 1 1/2 revolutions. The track configuration is 7° positive.
  • All standard parts feeder bowls have a brush finish.
  • Electropolishing and Hand Polishing are available upon request.
