Orienting Rolls


Orienting Rolls (also known as Orienting Rollers) effectively orient and convey parts in a quiet and gentle non-vibratory manner. Increased spacing between parts is often achieved, lending itself to other applications where parts are inspected or gauged.

Each roller is precision ground and hard chrome plated. Optional coatings can be applied for special applications such as handling food or pharmaceutical items. Abrasion-resistant coatings may also be applied to the rollers.

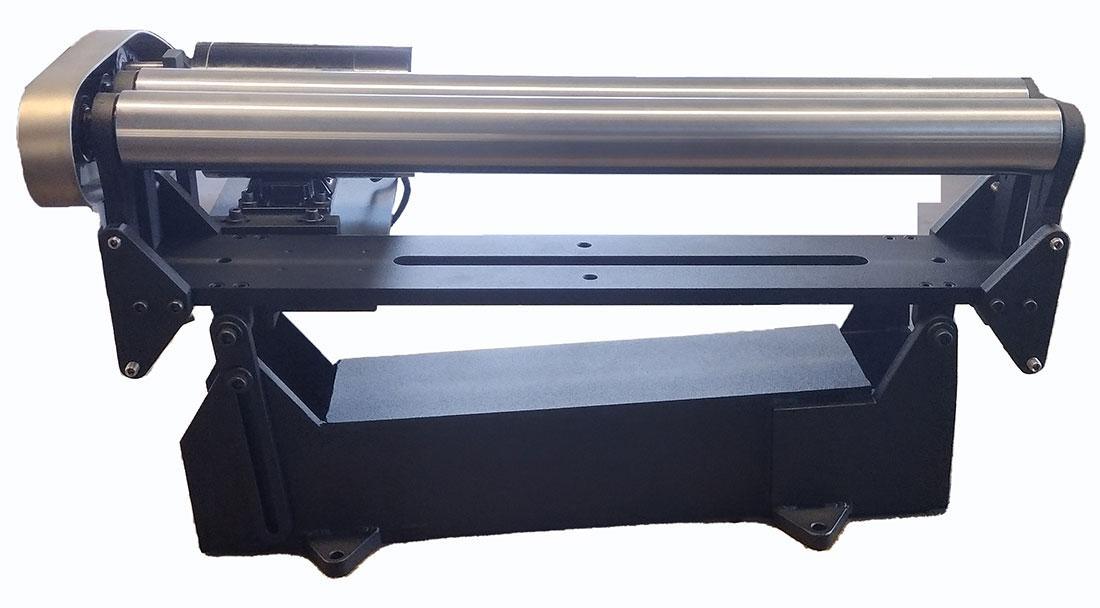

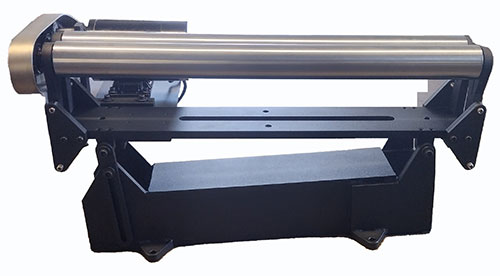

7800 orienting roll

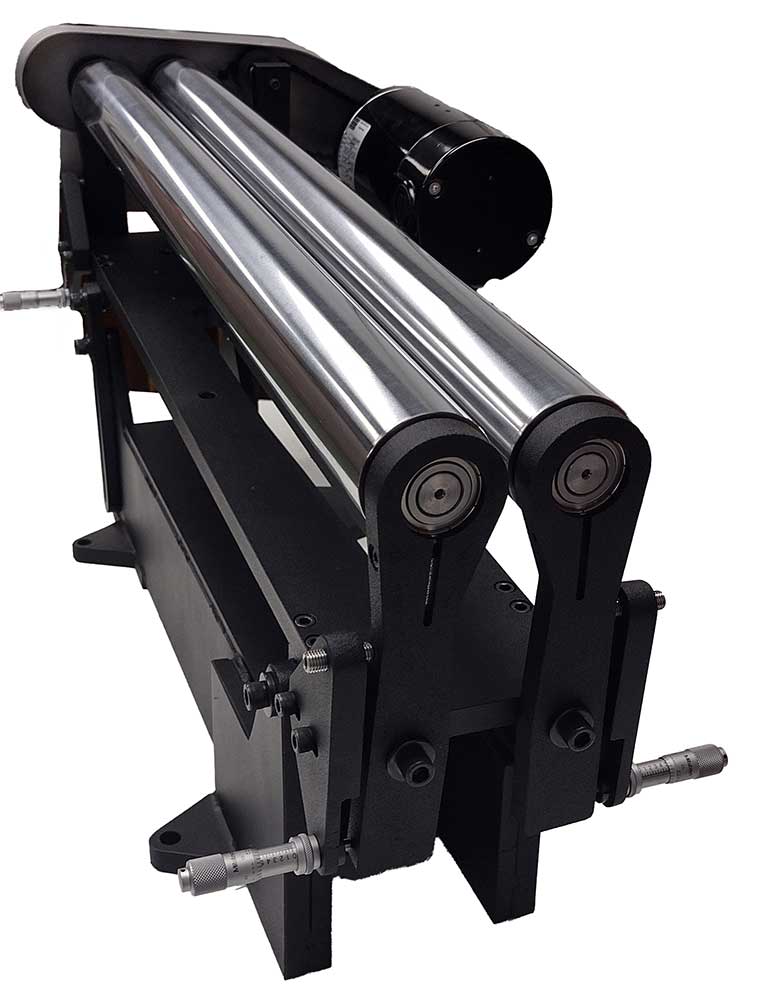

Micrometer orienting roll7600 orienting roll



Micro-Adjustment

Orienting Rolls can be equipped with micrometer adjusters that permit fast and accurate changeover to the next part. Consult the factory about including them in your application.







Model Selection Table

Model Number Roller Length (Inches) Motor Speed (RPM) Input Voltage Input Current

7600F

12

0-2500

Variable

120 VAC 1.80 A

7700F

18

0-2500

Variable

120 VAC 1.80 A

7800F

24

0-2500

Variable

120 VAC 1.80 A

*Note: 240 VAC models are quoted upon request
