Multipurpose Vibratory Feeder Bowls

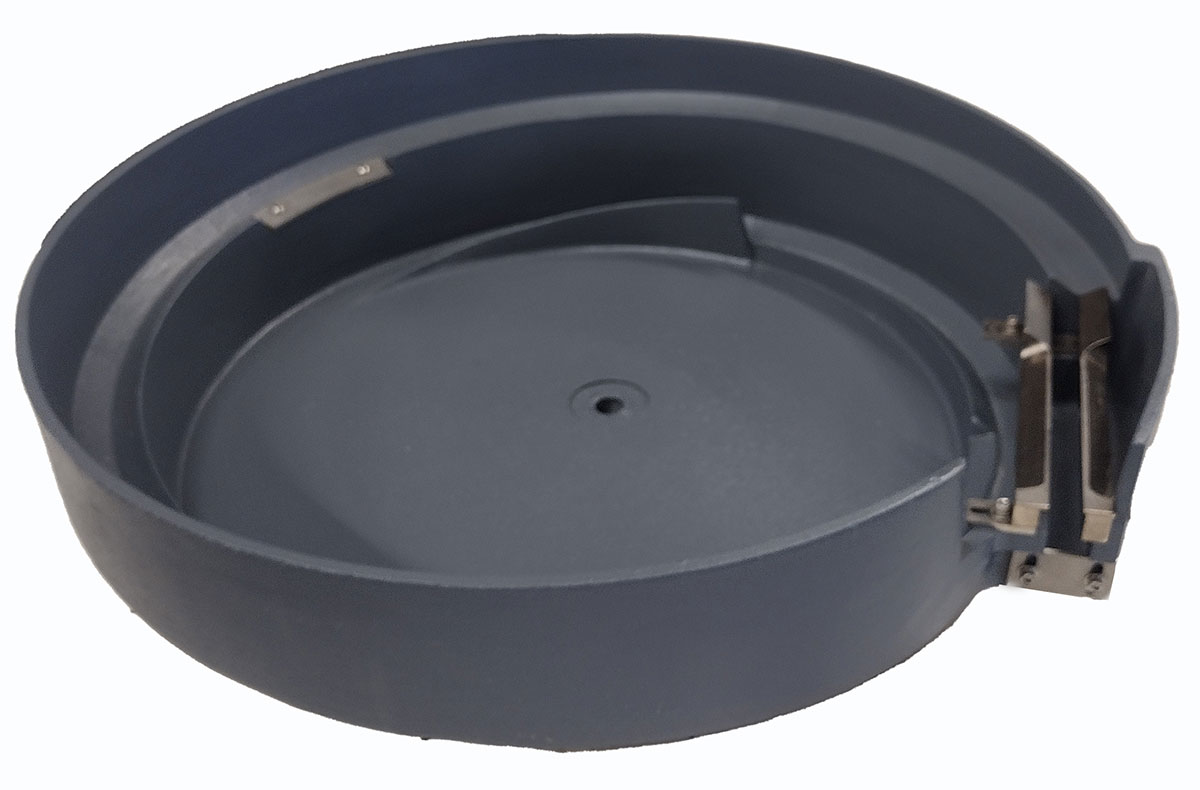

Multipurpose Vibratory Feeder Bowl thumbADI's Multipurpose Bowl with Adjustable Tooling enables one feeding system to orient and feed a variety of screws, rivets, tapered parts and many others with a single unit.

  • An adjustable rail in the bowl's discharge facilitates the orienting of headed parts like screws, rivets and other fasteners with varying shank lengths and diameters.
  • Cylindrical parts, with a larger diameter close to one end versus the other, orient reliably in this bowl's "hanging" style tooling.
  • The feeder bowls are IN-STOCK and available in two sizes: 12 inches or 18 inches in diameter and a clockwise or counterclockwise spiral track.
  • Options include hardened tooling and wear-resistant linings.
  • Complete feeding systems include the tooled bowl, a base unit, and a vibratory feeder controller.
Feeder Bowl Type Rotation RFQ
12" Tooled Bowl Only Clockwise
Counterclockwise
12" Tooled Bowl with 120 Volt Model Base Unit and 6000.1 Controller Clockwise
 Counterclockwise
12" Tooled Bowl with 240 Volt Model Base Unit and 6000.2 Controller Clockwise
 Counterclockwise
18" Tooled Bowl Only Clockwise
 Counterclockwise
18" Tooled Bowl with 120 Volt Model Base Unit and 6000.1 Controller Clockwise
 Counterclockwise
18" Tooled Bowl with 240 Volt Model Base Unit and 6000.2 Controller Clockwise
 Counterclockwise

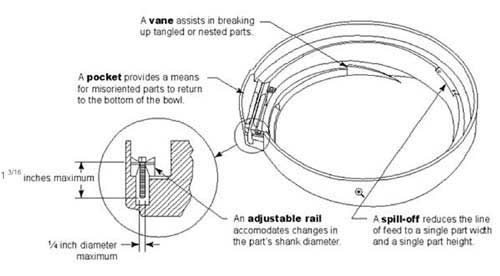

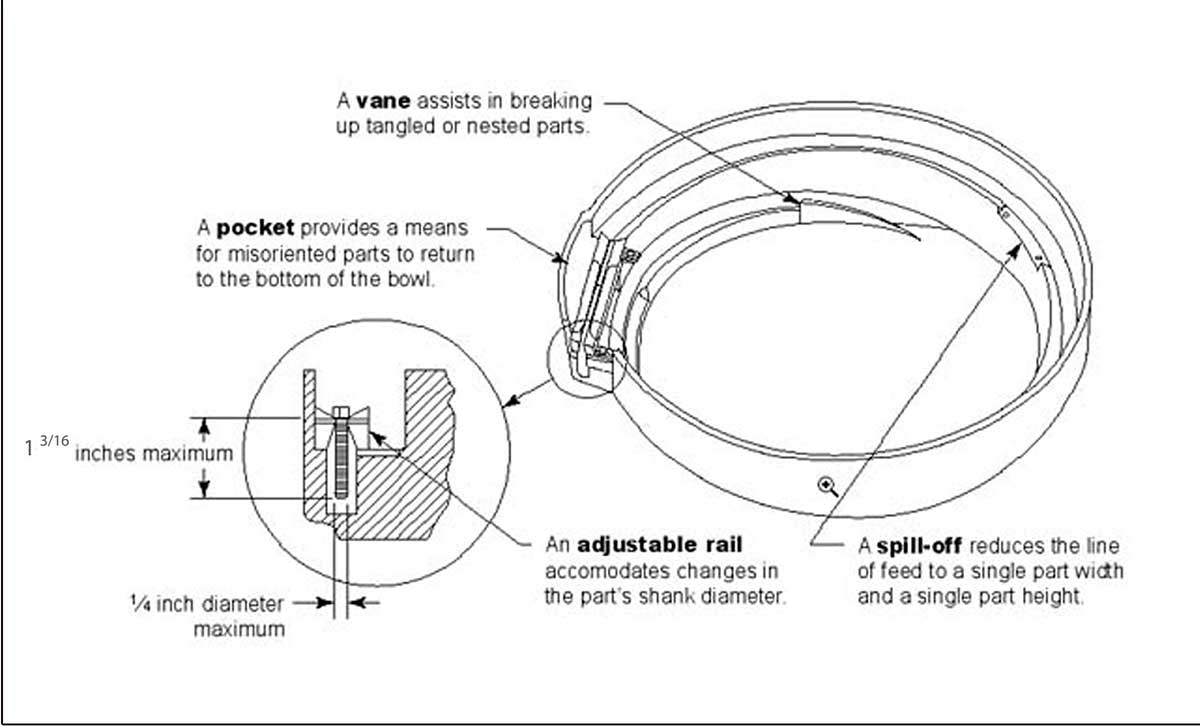

12 Inch Bowl Diagram

12 inch multipurpose feeder bowl diagram

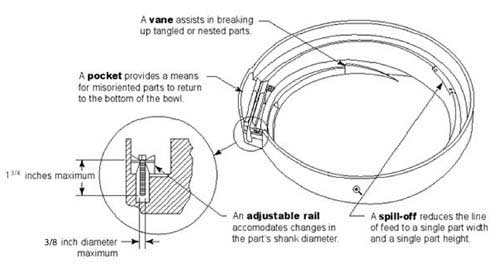

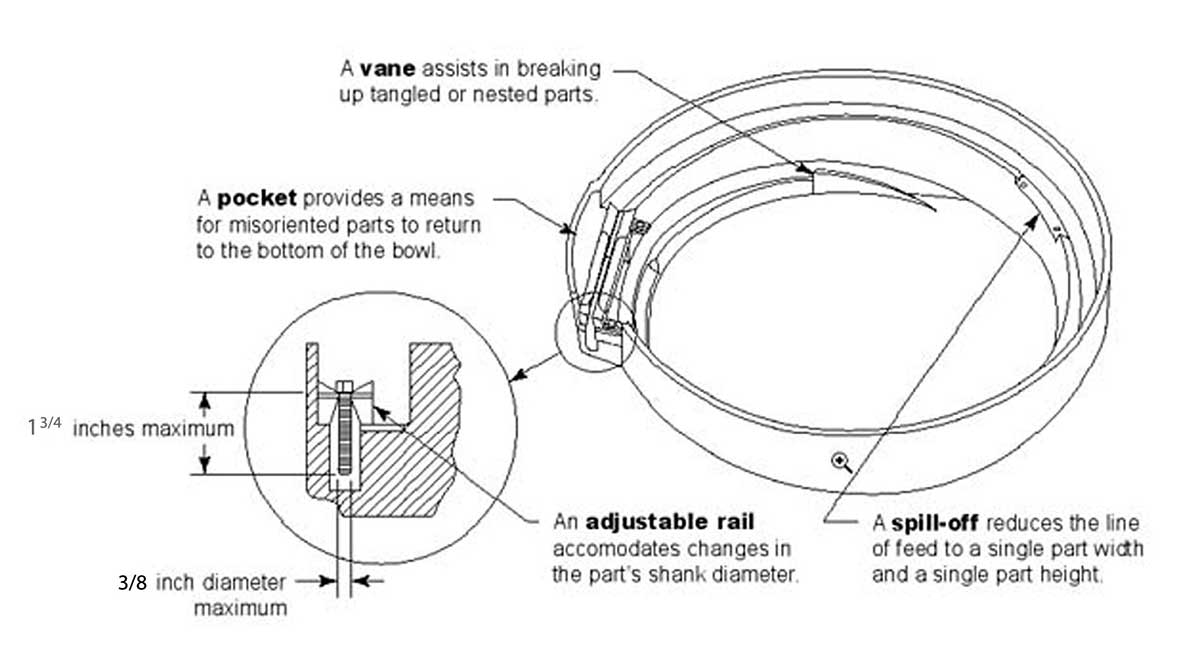

18 Inch Bowl Diagram

18 inch multipurpose feeder bowl diagram
