Model 8 Feeder Base Unit for 10" - 11" Vibratory Bowls

RoHS compliant

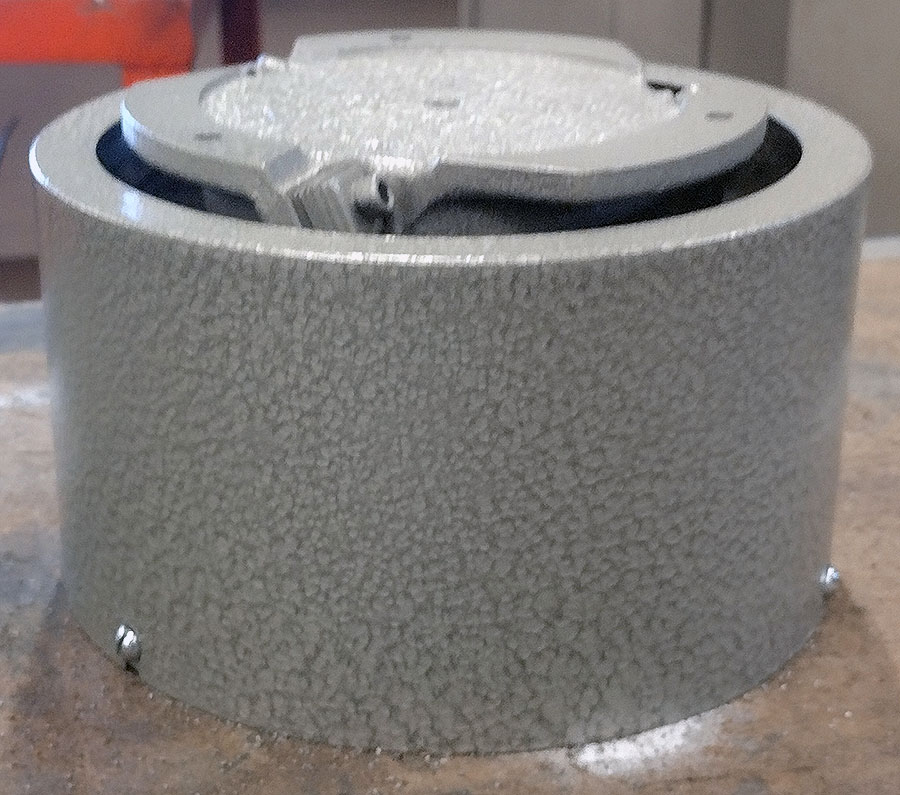

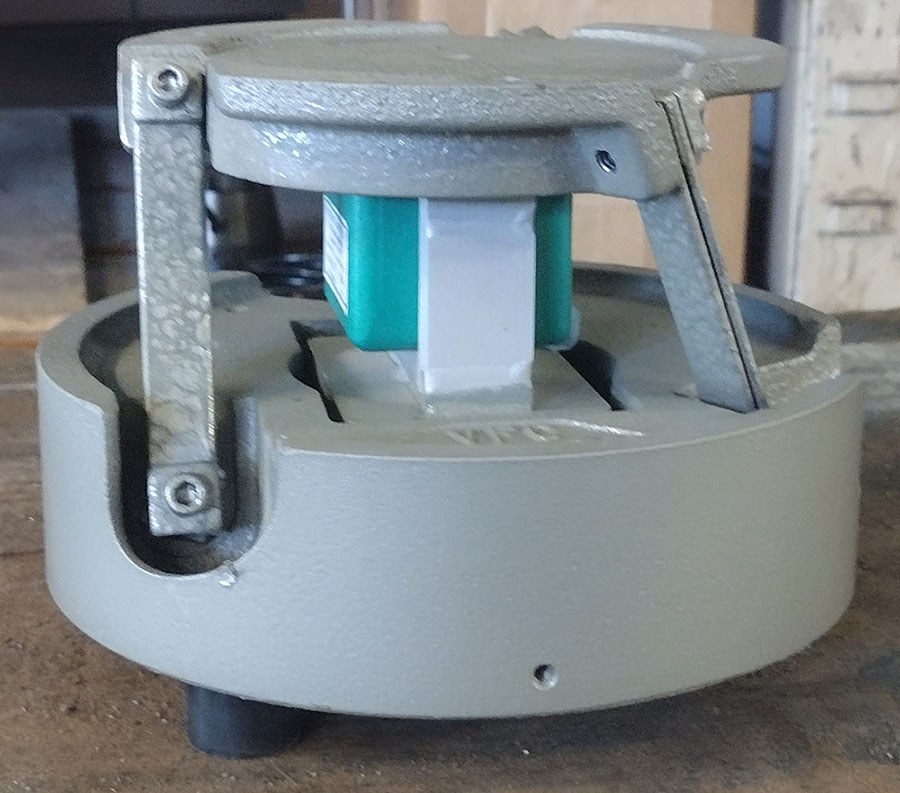

Model 8 standard base unit

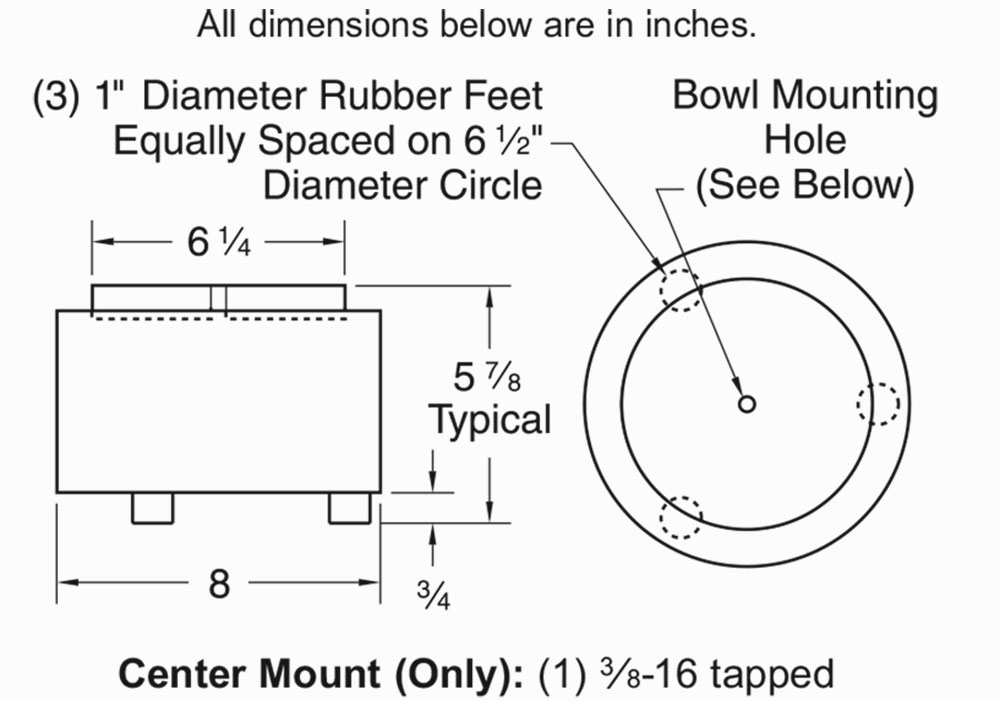

Model 8 standard base unit dimensions

All dimensions are in inches. Center mount (Only): (1) 3/8-16 tapped



Model Number Rotation Input Voltage Input Current Use Controller

08CC.1

CC 120 VAC 0.75A Model 6000.1

08CC.2

CC 240 VAC 0.30A Model 6000.2

08CK.1

CK 120 VAC 0.75A Model 6000.1

08CK.2

CK 240 VAC 0.30A Model 6000.2

*CC stands for Counter-clockwise
*CK stands for Clockwise

Spring Angle 25°
Shipping Weight 32 pounds
Foot Locator when using 0508/0508S Stud Feet 7901
Foot Locator when using 1008/008S Bumper Feet 7911
Single Stud Foot - Standard 0508
Single Stud Foot - Soft 0508S
Double Stud Foot 0510-4
Locator Style Foot 0808



Model 8 Base Unit Resources

Model 8 Assembly
8/11/2016, 12:51 PM
Model 8 Dimensional Drawing DWG
8/11/2016, 12:53 PM
Model 8 Dimensional Drawing PDF
8/11/2016, 12:53 PM
Model 8 Dimensional Drawing WMF
8/11/2016, 12:54 PM
