Model 6005 Internal Mount Feeder Controller

6005 Internal Mount Controller Specifications

This internal mount controller allows for remote placement of the potentiometer in applications that demand it to be positioned away from the control panel.

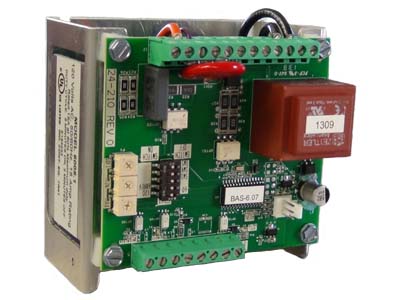

Model 6005.1 Series Amplitude Controller

Model 6005.1

  • 120 Volts AC
  • 15 Amps
  • Open Frame Enclosure
  • Remote Pot w/ 48" cord
  • Min and Max Adjustment
  • Fuses Included

Model 6005.1 Resources

6005 Dimensional Drawing DWG
8/24/2016, 2:35 PM
6005 Dimensional Drawing PDF
8/24/2016, 2:33 PM
6005 Dimensional Drawing WMF
8/24/2016, 2:33 PM
6005.1 Instructions and Wiring
8/24/2016, 2:29 PM
Good Wiring Practices
8/24/2016, 2:40 PM

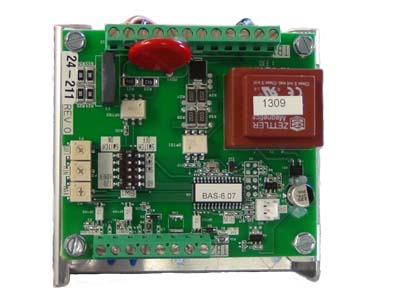

Model 6005.2 Amplitude Controller

Model 6005.2

  • 240 Volts AC
  • 8 Amps
  • Open Frame Enclosure
  • Remote Pot w/ 48" cord
  • Min and Max Adjustment
  • Fuses Included

Model 6005.2 Resources

6005 Dimensional Drawing DWG
8/24/2016, 2:43 PM
6005 Dimensional Drawing PDF
8/24/2016, 2:42 PM
6005.2 Instructions
8/24/2016, 2:38 PM
Good Wiring Practices
8/24/2016, 2:40 PM

For Controllers Purchased Prior to July 2005

Please refer to this document if you purchased your controller prior to July 2005

Instructions for Controllers Purchased before July 2005 »
