Model 5 Feeder Base Unit for 6" - 8" Vibratory Bowls

RoHS compliant

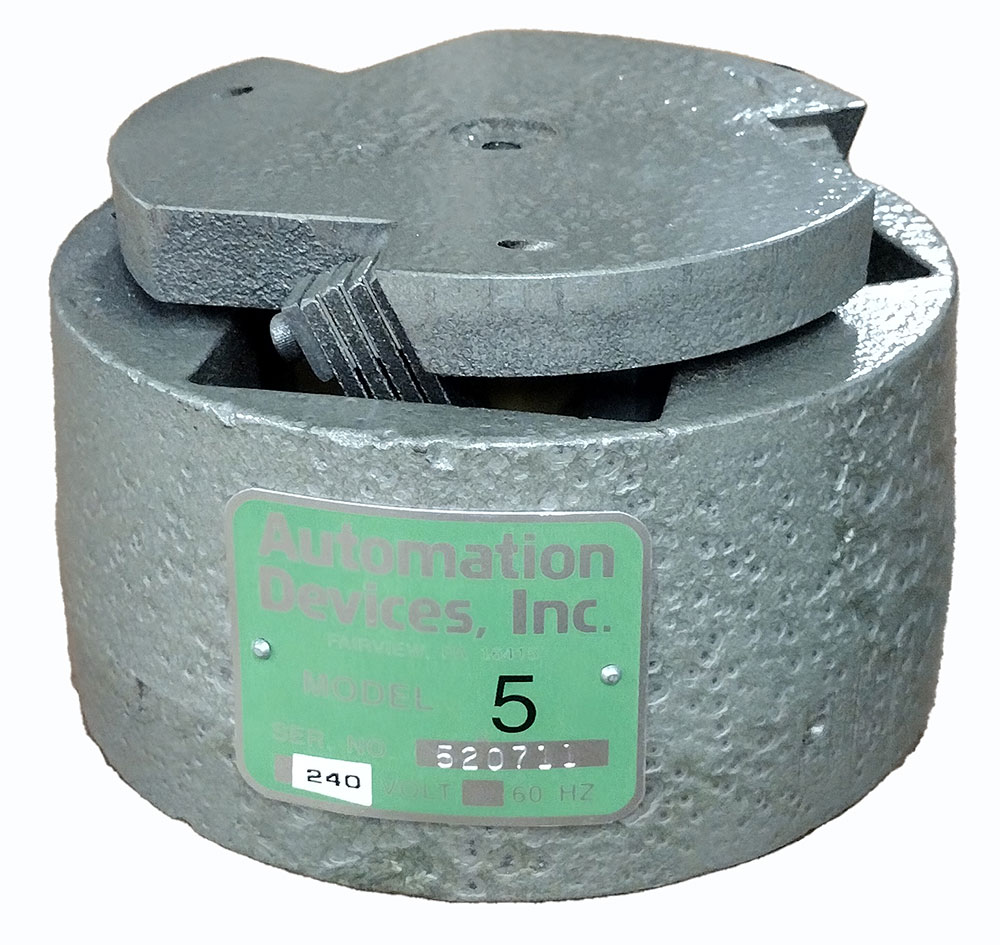

Model 5 standard base unit

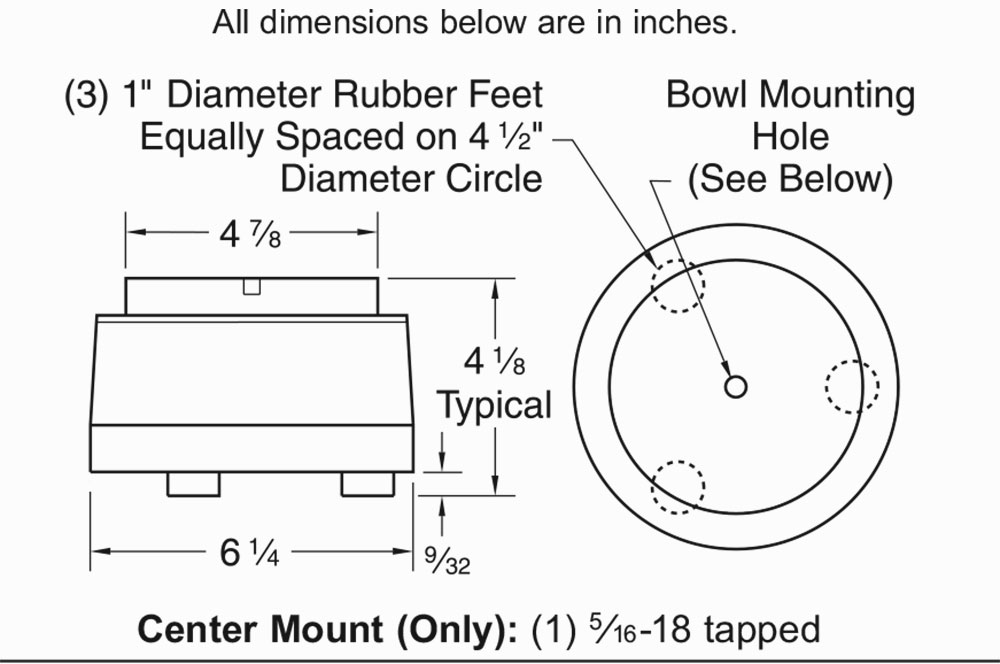

Model 5 standard base unit dimensions

All dimensions are in inches. Center mount (Only): (1) 5/16-18 tapped



Model Number Rotation Input Voltage Input Current Use Controller

05CC.1

CC 120 VAC 0.50A Model 6000.1

05CC.2

CC 240 VAC 0.25A Model 6000.2

05CK.1

CK 120 VAC 0.50A Model 6000.1

05CK.2

CK 240 VAC 0.25A Model 6000.2

*CC stands for Counter-clockwise
*CK stands for Clockwise

Spring Angle 25°
Shipping Weight 19 pounds
Foot Locator 7901
Single Stud Foot - Standard 0508
Single Stud Foot - Soft 0508S
Double Stud Foot 0510-4 or 0509
Locator Style Foot 0808
