Model 3 Feeder Base Unit for 3" - 4.5" Vibratory Bowls

RoHS compliant

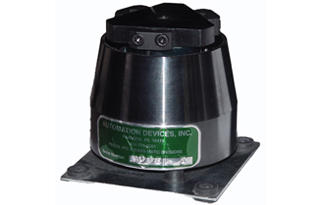

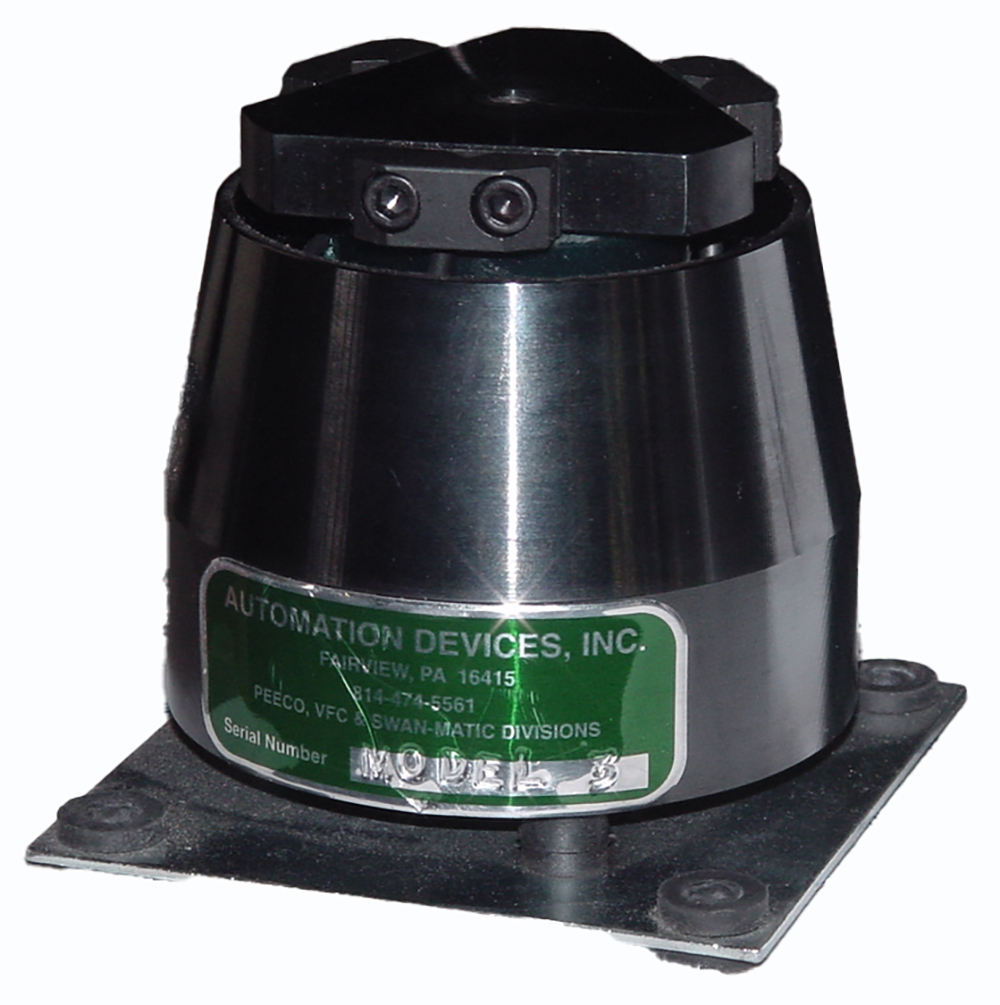

Model 3 base unit

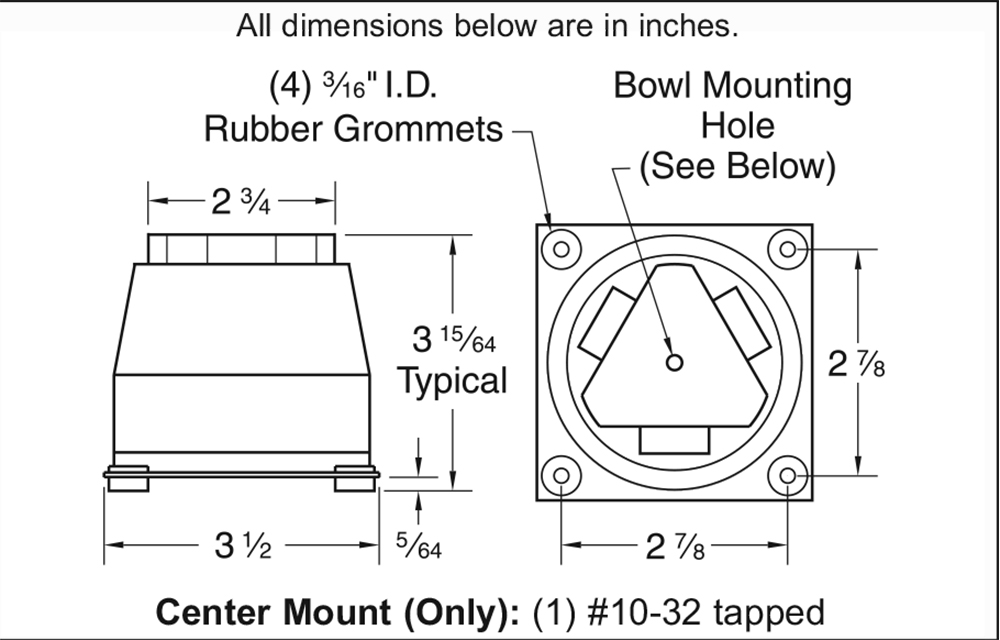

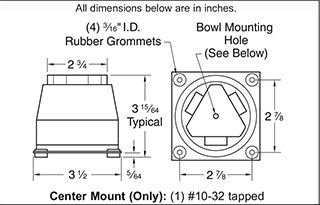

Model 3 base unit dimensions

All dimensions are in inches. Center mount (Only): (1) #10-32 tapped



Model Number Rotation Input Voltage Input Current Use Controller

03CC.1

CC 120 VAC 0.15A Model 6000.1

03CK.1

CK 120 VAC 0.15A Model 6000.1

*CC stands for Counter-clockwise
*CK stands for Clockwise

Spring Angle 25°
Shipping Weight 5 pounds
Double Stud Foot 0309



Model 3 Base Unit Resources

Model 3 Assembly
8/11/2016, 12:41 PM

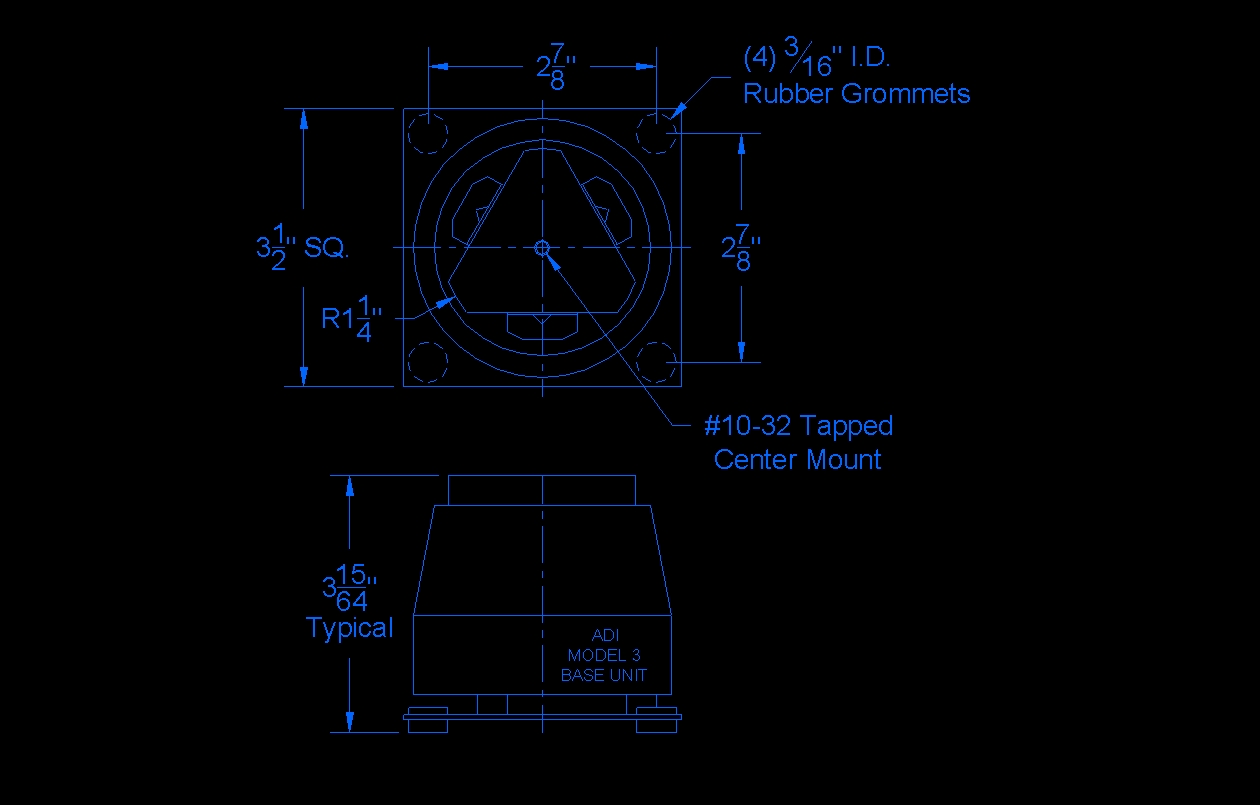

Model 3 Dimensional Drawing DWG
8/11/2016, 12:44 PM
Model 3 Dimensional Drawing JPEG
8/11/2016, 12:45 PM
