Model 20 Feeder Base Unit for 24" - 25" Vibratory Bowls

RoHS compliant

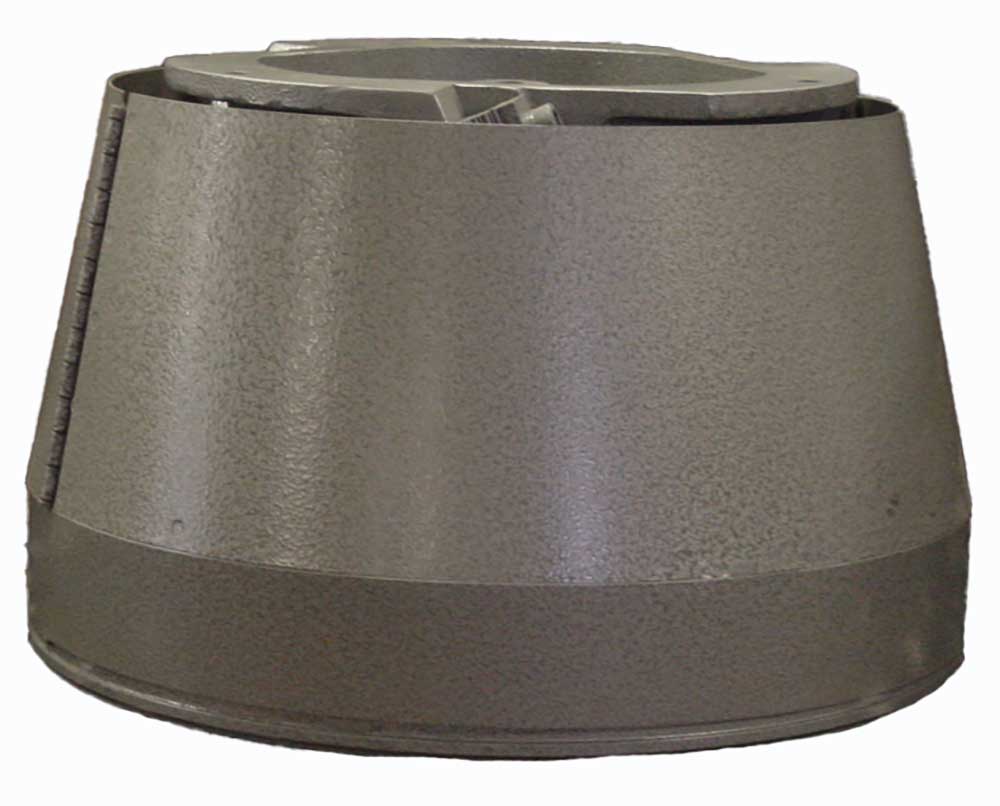

Model 20 standard base unit

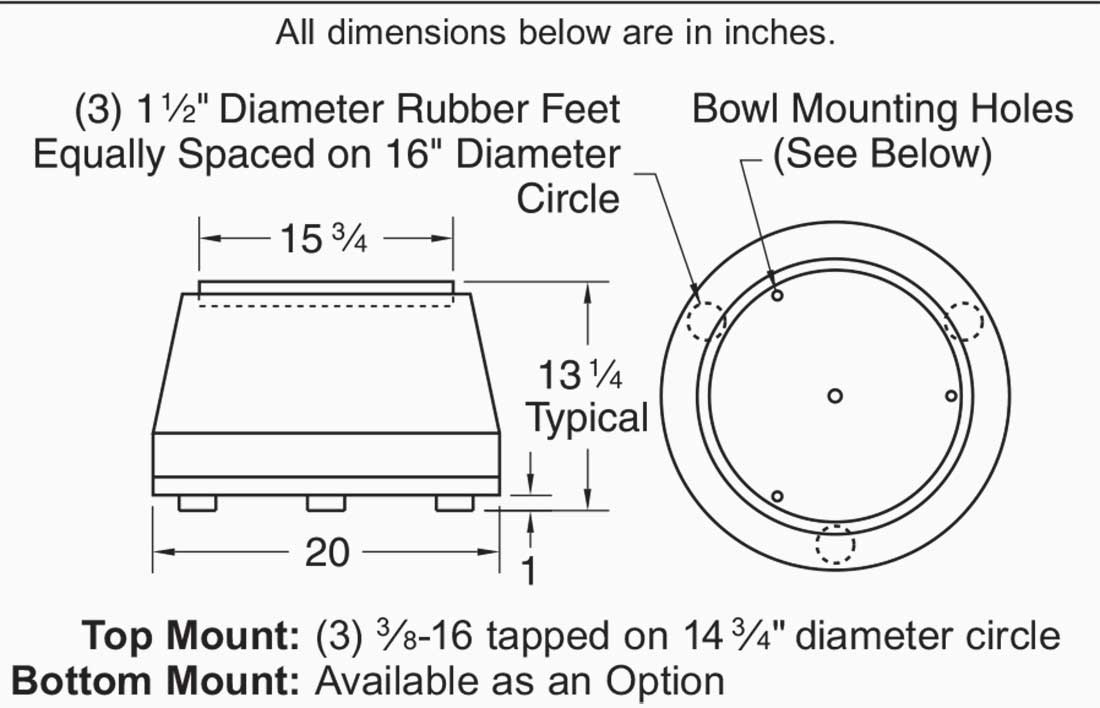

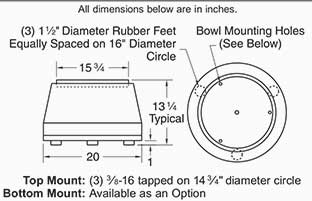

Model 20 standard base unit dimensions

All dimensions are in inches. Top Mount: (3) 3/8-16 tapped on 14 3/4'' diameter circle; Bottom Mount: Available as an Option



Model Number Rotation Input Voltage Input Current Use Controller

20CC.1

CC 120 VAC 7.0A Model 6000.1

20CC.1

CC 240 VAC 3.0A Model 6000.2

20CK.1

CK 120 VAC 7.0A Model 6000.1

20CK.2

CK 240 VAC 3.0A Model 6000.2

*CC stands for Counter-clockwise
*CK stands for Clockwise

Spring Angle 25°
Shipping Weight 294 pounds
Foot Locator 7951
Single Stud Foot - Standard 2008
Single Stud Foot - Soft
Double Stud Foot - Alternative
Bumper Style Foot - Hard
Bumper Style Foot - Soft
Locator Style Foot 3008



Model 20 Base Unit Resources

Model 20 Assembly
