Model 18XL Low Profile Base Unit for 18" - 30" Vibratory Bowls

RoHS compliant

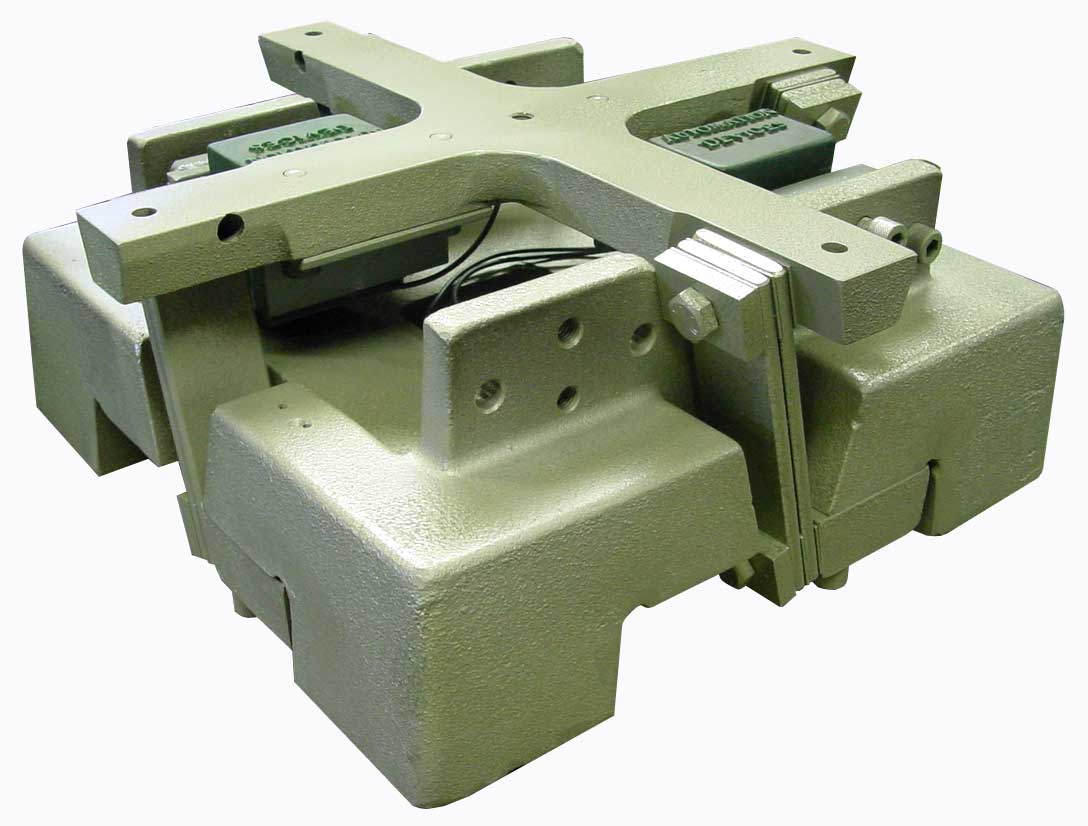

Model 18XL low profile base unit

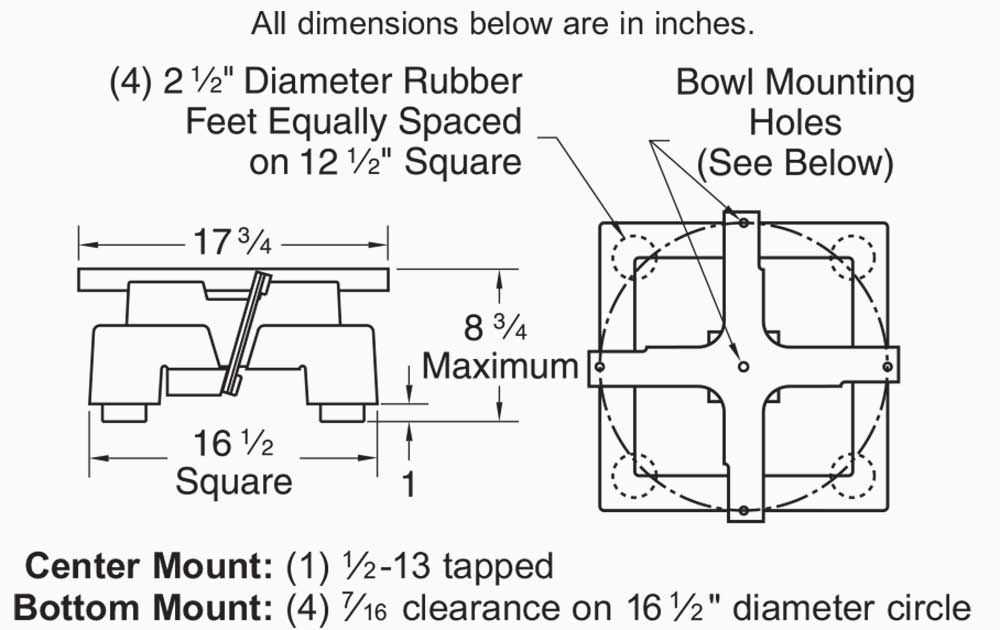

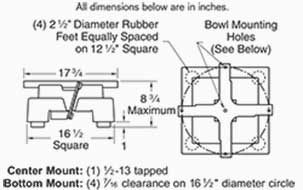

Model 18XL low profile base unit dimensions

All dimensions are in inches. Center Mount: (1) 1/2-13 tapped; Bottom Mount: (4) 7/16 clearance on 16 1/2'' diameter circle



Model Number Rotation Input Voltage Input Current Use Controller

18CC.1

CC 120 VAC 3.5A Model 6000.1

18CC.2

CC 240 VAC 2.5A Model 6000.2

18CK.1

CK 120 VAC 3.5A Model 6000.1

18CK.2

CK 240 VAC 2.5A Model 6000.2

*CC stands for Counter-clockwise
*CK stands for Clockwise

Spring Angle 15°
Shipping Weight 253 pounds
Foot Locator 7951
Single Stud Foot - Standard 2008
Locator Style Foot 3008
