Model 15 Feeder Base Unit for 15" - 24" Vibratory Bowls

RoHS

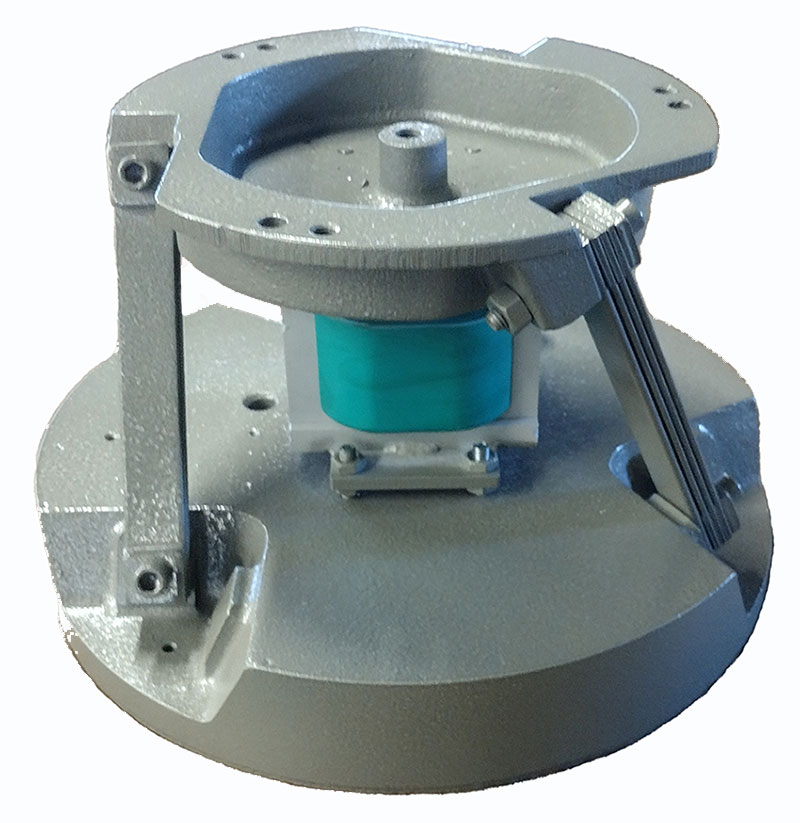

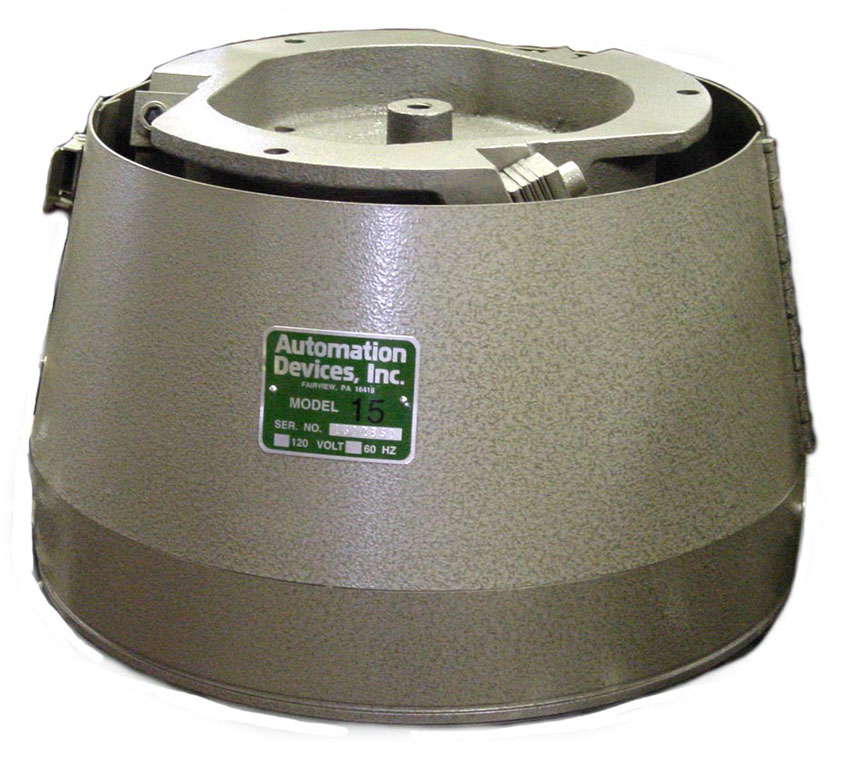

Model 15 standard base unit

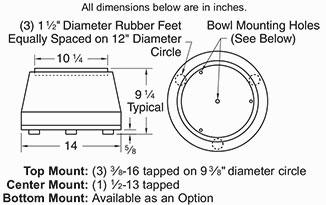

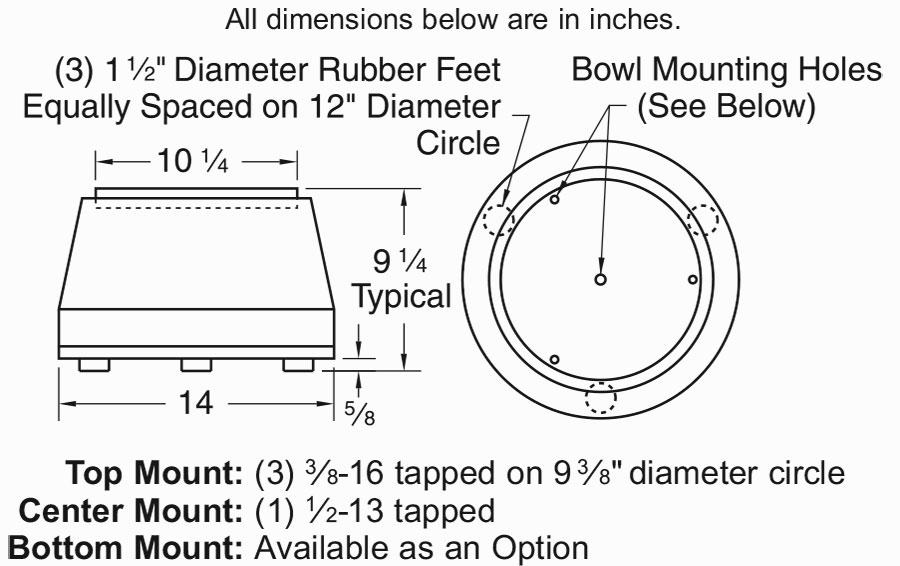

Model 15 standard base unit dimensions

All dimensions below are in inches. Top Mount: (3) 3/8-16 tapped on 9 3/8'' diameter circle; Center Mount: (1) 1/2-13 tapped; Bottom Mount: Available as an Option



Model Number Rotation Input Voltage Input Current Use Controller

15CC.1

CC 120 VAC 3.0A Model 6000.1

15CC.2

CC 240 VAC 1.5A Model 6000.2

15CK.1

CK 120 VAC 3.0A Model 6000.1

15CK.2

CK 240 VAC 1.5A Model 6000.2

*CC stands for Counter-clockwise
*CK stands for Clockwise

Spring Angle 25°
Shipping Weight 116 pounds
Foot Locator 7911
Single Stud Foot - Standard 0508
Single Stud Foot - Soft 0508S
Double Stud Foot - Alternative 0510-4
Bumper Style Foot - Hard 1008
Bumper Style Foot - Soft 1008S
Locator Style Foot 1508

Model 15 Base Unit Resources

Model 15 Assembly
8/11/2016, 12:58 PM
Model 15 Dimensional Drawing DWG
8/11/2016, 12:59 PM
