Inline / Linear Feeders

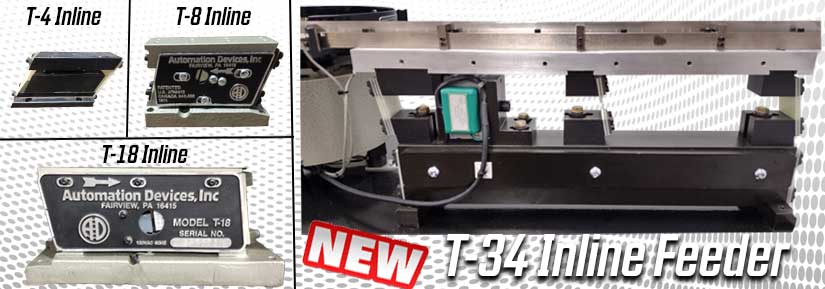

Inline feeder
What are Inline / Linear Feeders?

Inline feeders convey oriented parts in a linear motion across feeder tracks designed to transport a specific part shape or product. ADI's unique self-canceling design reduces the vibration transmitted to the mounting surface. Inline feeders are to be fastened directly to the machine base and requires no rubber feet for mounting. Reliable track alignment is obtained through the absence of rubber feet.



Adjustable: 120 pulses per second - Full Wave (AC Tuned)

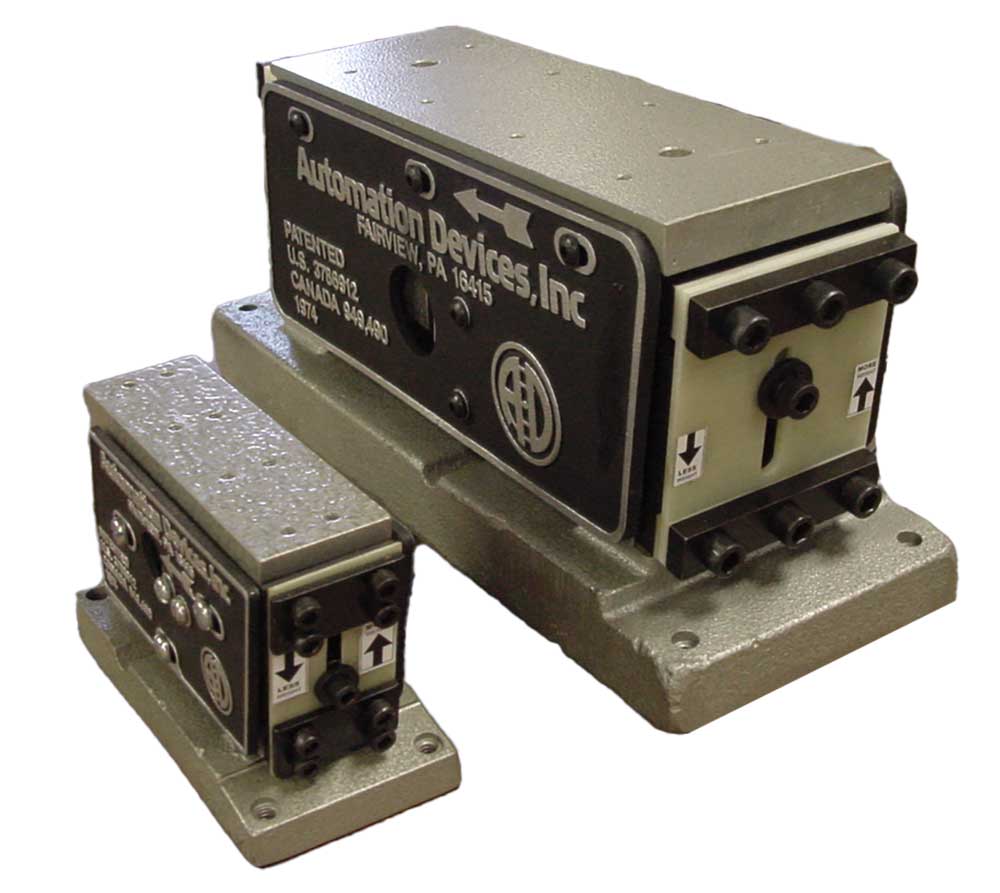

Adjustable inline feeder Single Screw Tuning

The Model 5100A and the Model 5300A Series of Adjustable Inline Feeders can be field-adjusted to accommodate lighter or heavier tracks weights by turning a single socket head screw. This Single Screw Tuning (SST) can compensate for a wide range of track weights. It is now possible for a Model 5100A to be tuned with a tracks weight as light as 4 ounces or as heavy as 48 ounces by sliding and tightening a single screw located on the outer spring bank of the feeder. Refer to the dimensional drawing to locate the screw for each series of Inline Feeders.

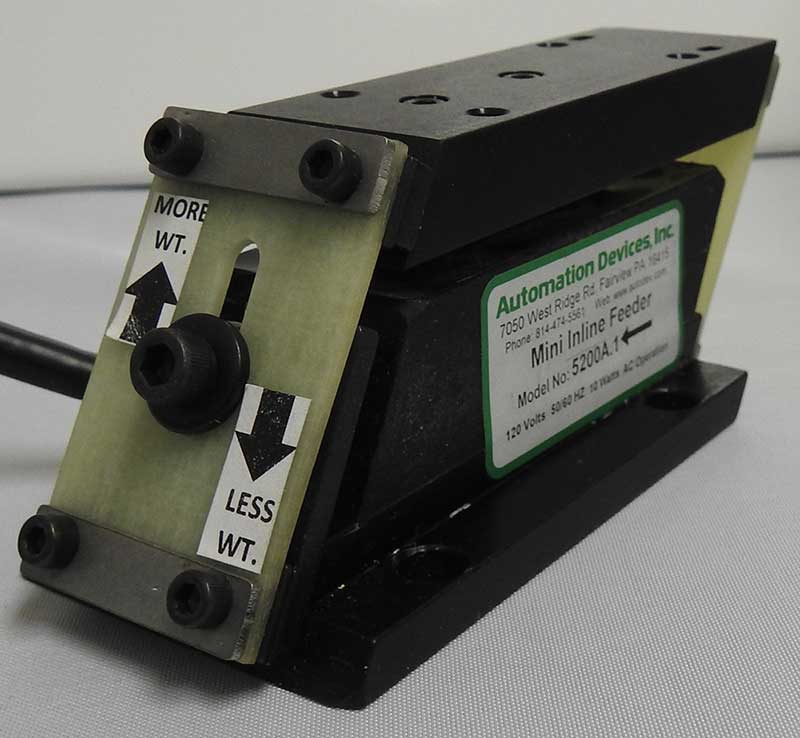

T4 small inline feeder

The Model 5200A (T-4) is the smallest of the Inline Feeder Series and services track lengths of up to 10” with weights up to 1lb. This inline feeder can be supplied in 120v or 220v, 60 Hz or 50 Hz. By effectively lengthening and shortening the working length of its fiberglass springs, the strength of the T-4 inline feeder can handle a wide range of weight and length modification of your track without the need for factory intervention.

Note: ADI must know the load rating to ensure a range of adjustment within the range of track weights to be used by the customer. Customers can also request for a unit to be tuned for a single track weight.





        Note: **T4 & T8 inlines using relay to remotely control off/on now requires a reducer kit.





Model Number Model Series Input Voltage Input Current Load Rating (MAX) Track Length (MAX) Use Controller

5100A.1

T8 120 VAC 60 Hz 0.15A 3 pounds (48 onces) 12 inches

6000.1

5100A.2

T8 240 VAC 60 Hz 0.07A

6000.2

5200A.1

T4 120 VAC 60Hz 0.20A 1 pound (16 ounces) 10 inches

6000.1

5200A.2

T4 240 VAC 60Hz 0.10A

6000.2

5300A.1

T18 120 VAC 60Hz 0.50A 6 pounds (96 ounces) 24 inches

6000.1

5300A.2

T18 240 VAC 60Hz 0.25A

6000.2

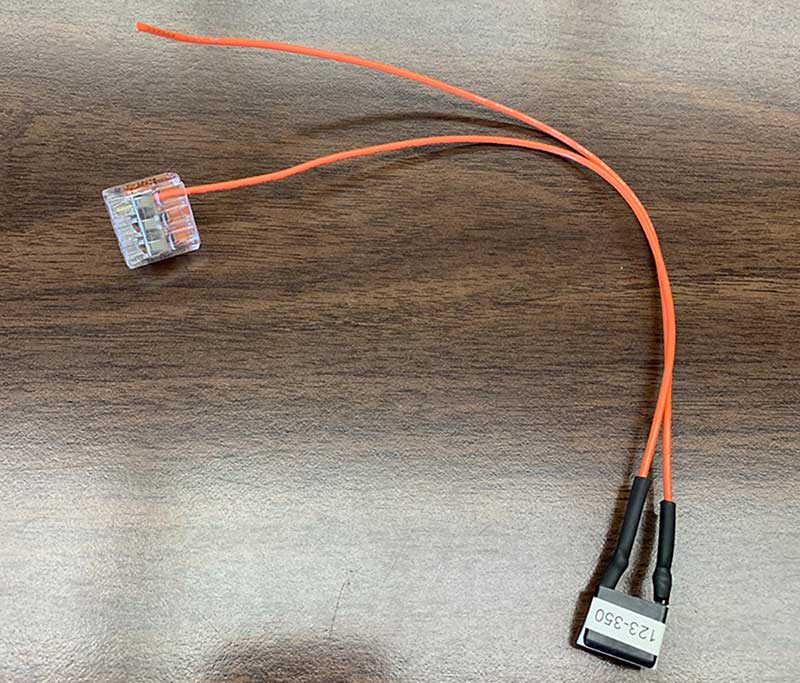

6000.2LCRK

T4 & T8

120 VAC or

240 VAC

----- ----- ------

------

Inline Feeder Dimensional Table »



Non-Adjustable: 120 pulses per second - Full Wave (AC Tuned)

Fixed spring inline feeders ensure optimal tuning is not lost due to tampering or unauthorized repairs.

 5100 fixed spring inline feeder AC tuned
 5200 fixed spring inline feeder AC tuned



Model Number Model Series Input Voltage Input Current Load Rating (MAX) Track Length (MAX) Use Controller

5100.1

T8 120 VAC 60 Hz 0.15A 3 pounds (48 onces) 12 inches

6000.1

5100.2

T8 240 VAC 60 Hz 0.07A

6000.2

5200.1

T4 120 VAC 60Hz 0.20A 1 pounds (16 ounces) 10 inches

9150

5200.2

T4 240 VAC 60Hz 0.10A

6000.2

Inline Feeder Dimensional Table »



Non-Adjustable: 60 pulses per second - Half Wave Rectified (DC Tuned)

5300 inline feeder DC tuned

Model Number Model Series Input Voltage Input Current Load Rating (MAX) Track Length (MAX) Use Controller

5300.1

T18 120 VAC 60 Hz 0.50A 6 pounds (96 onces) 24 inches

6000.1

5300.2

T18 240 VAC 60 Hz 0.25A

6000.2

Inline Feeder Dimensional Table »



Pneumatic Driven Inline Feeder

Model Number Model Series PSI Air Consumption Load Rating (MAX) Track Length (MAX)

5300.P

T18 65Hz @ 80 PSI 3.7 cfm @ 80 PSI 6 pounds (96 ounces) 24 inches

Inline Feeder Resources

5100 Inline Feeder
5100 Inline Feeder PDF
11/18/2021, 10:35 AM
5200 Inline Feeder
5200 Inline Feeder PDF
8/10/2021, 8:55 AM
5300 Assembly
5/24/2022, 10:41 AM
5300 Inline Feeder
5300 Inline Feeder PDF
12/22/2021, 10:31 AM
5300A Assembly
5/24/2022, 10:42 AM
Leakage Current Reduction Kit
3/11/2019, 1:38 PM
