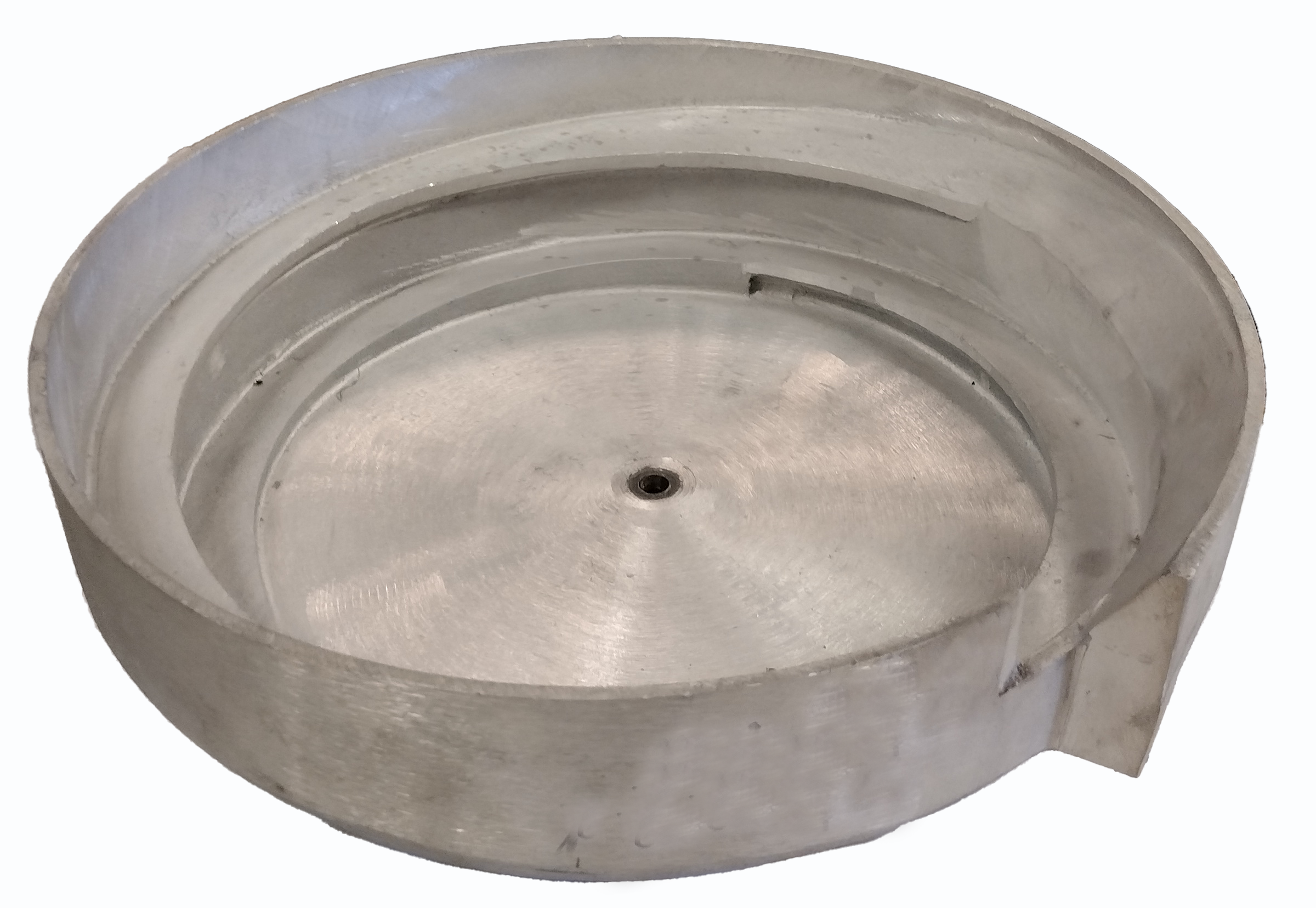

15" to 24" Vibratory Feeder Bowls For Use With Model 15 & 15FA Base Unit

Bowl Diameter

(Inches)

Track Width

(Inches)

Bowl Depth

(Inches)

Bowl Weight

(Pounds)

Bowl Part Number Track Configuration
Clockwise  Counterclockwise
 15 1 3 1/2 14

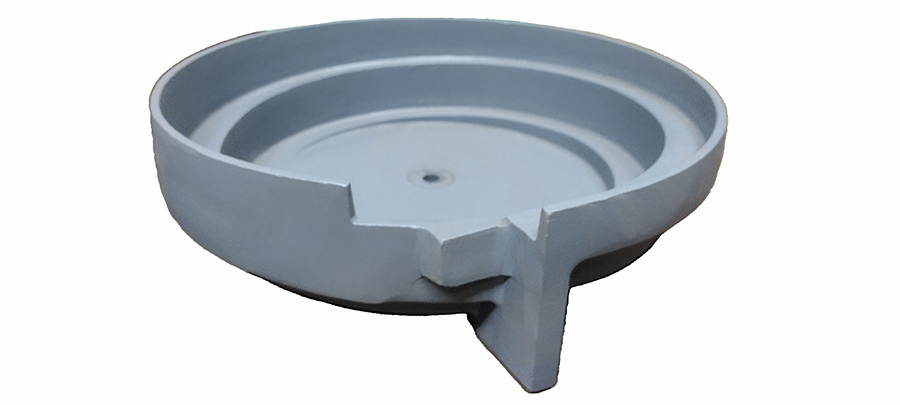

CB039

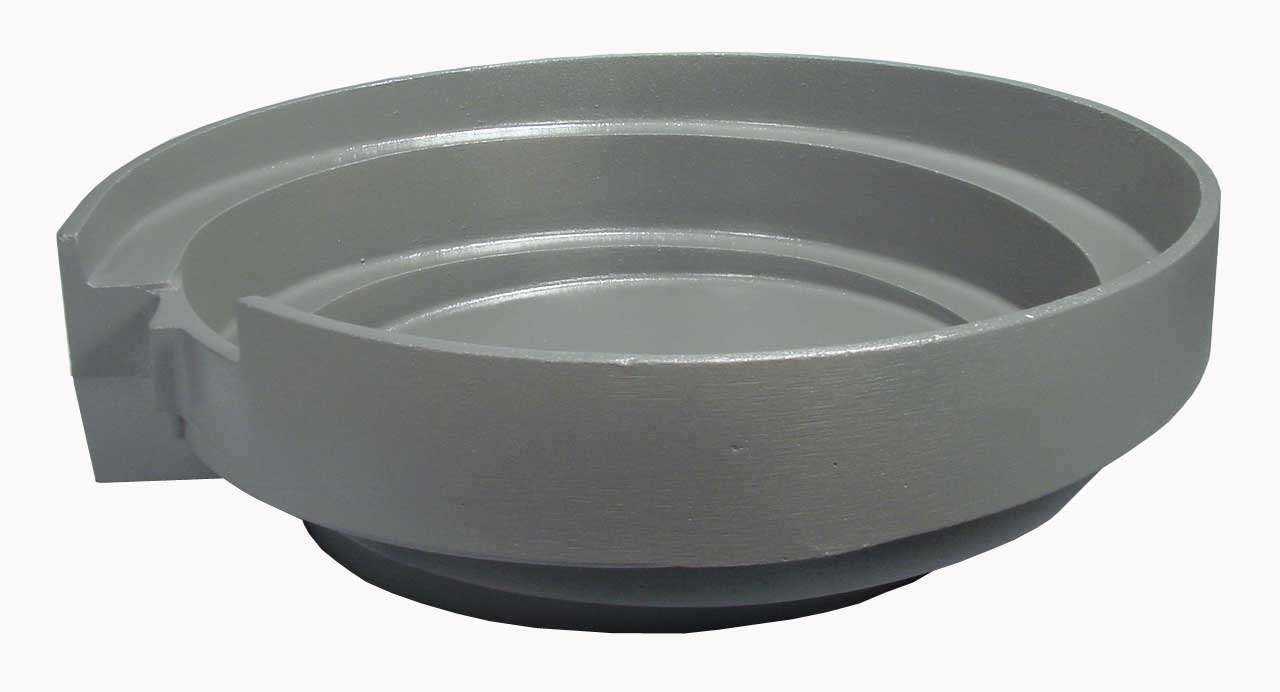

CB054

Positive Track
15 1 1/2 3 3/8 18 1/2

CB014

15º Negative Discharge (Starts Positive)
15 1 1/2 3 3/8 19

CB081

  15º Negative Discharge
15 1 7/8 3 1/2 18 1/2



 CB082

15º Negative Discharge
16 9/16 3 1/2 20




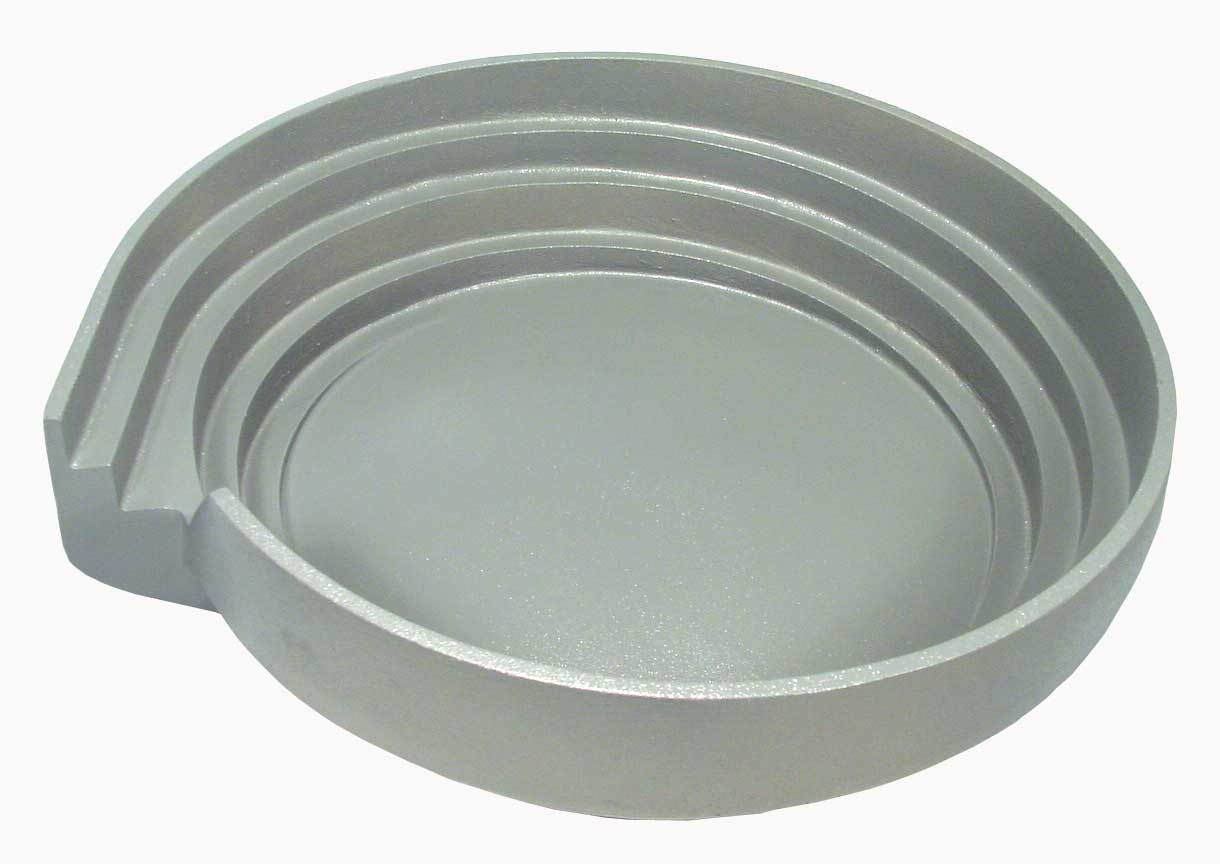

 CB019

 Dual Track
18 5/16 4 1/2 24

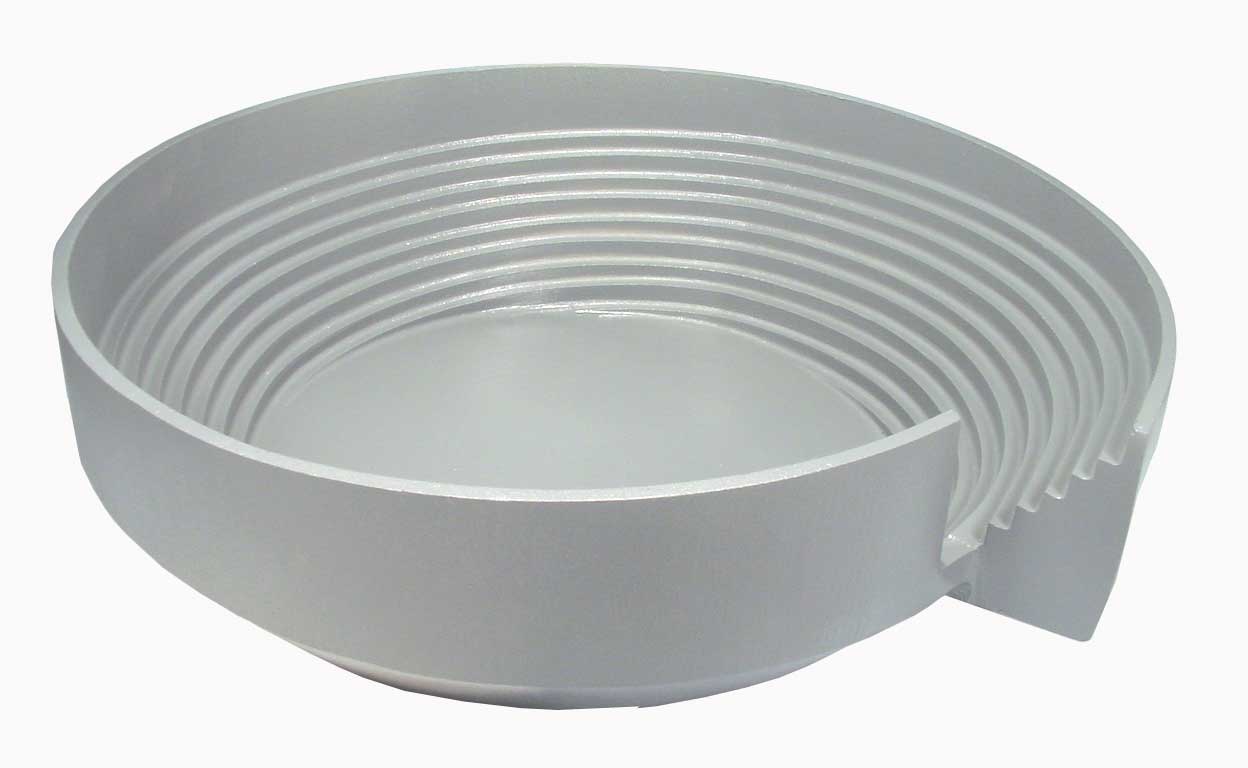

CB159




Six Track
18 3/8 4 1/2 24

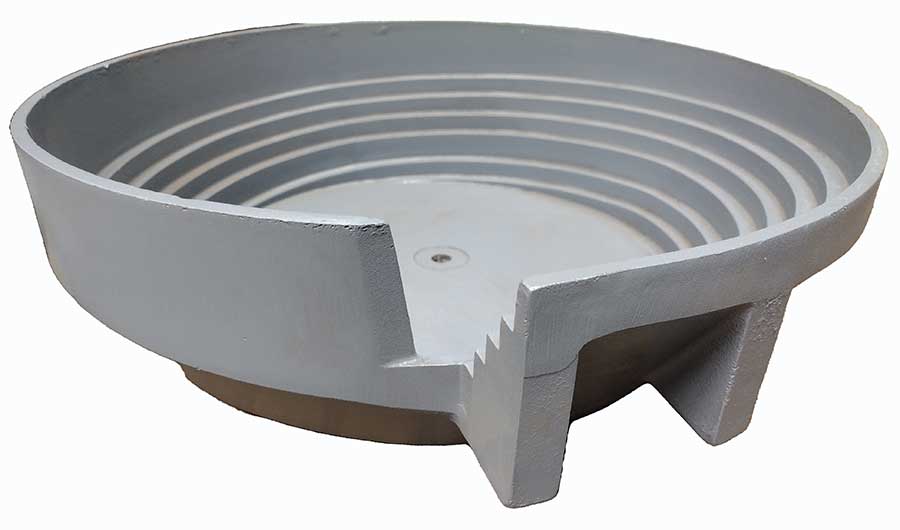

CB140



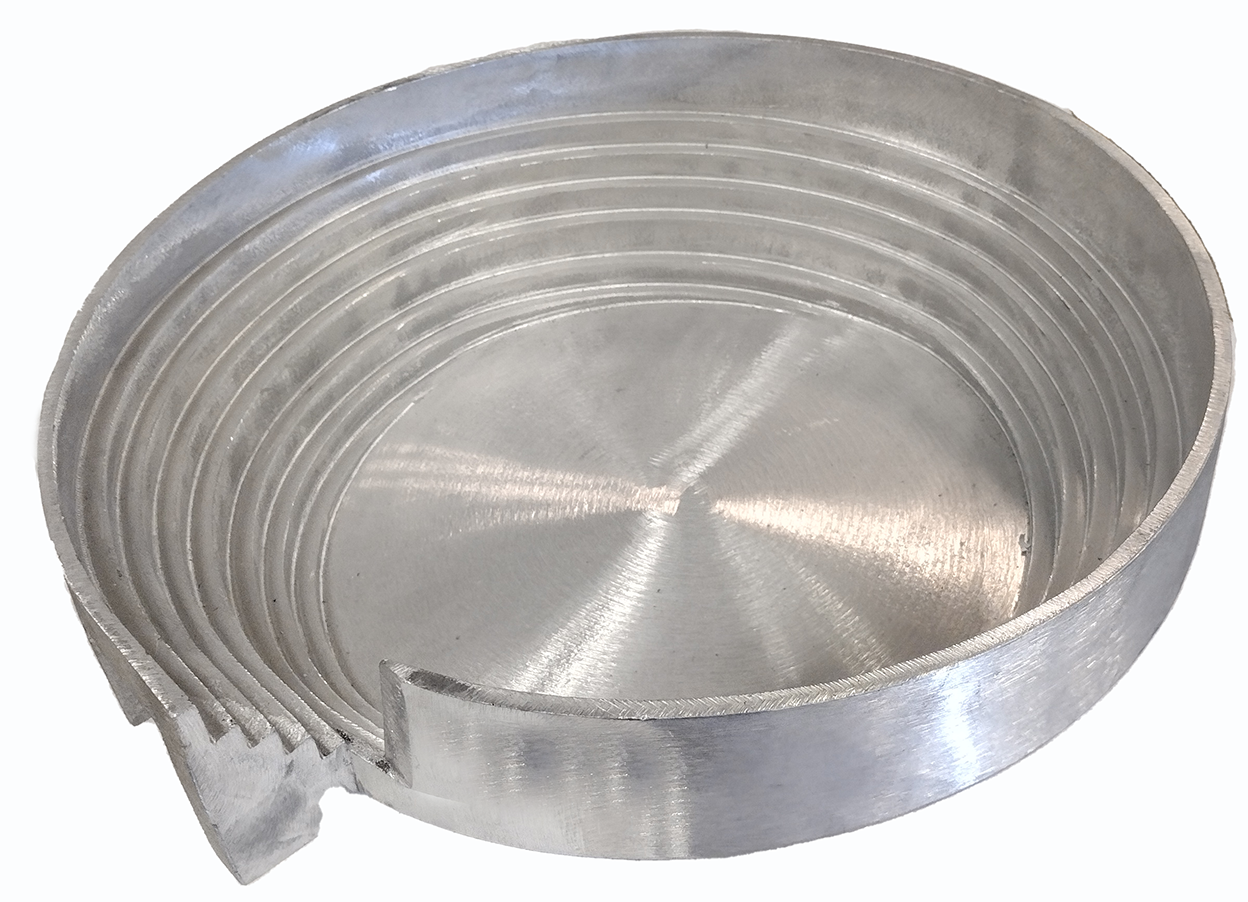

CB139

Quad Track
18 5/8 4 1/2 24

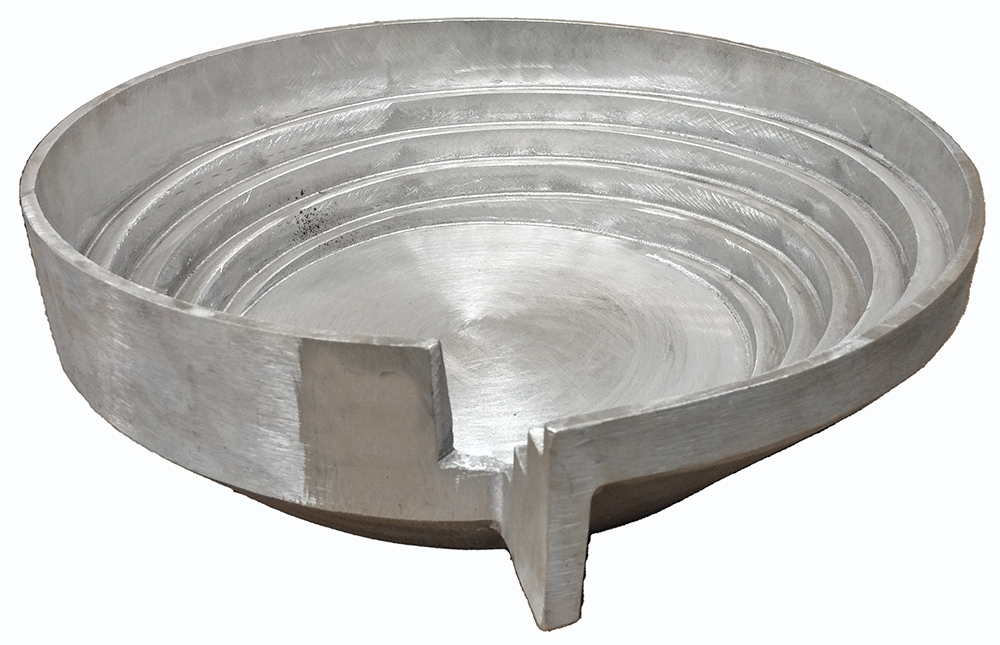

CB129

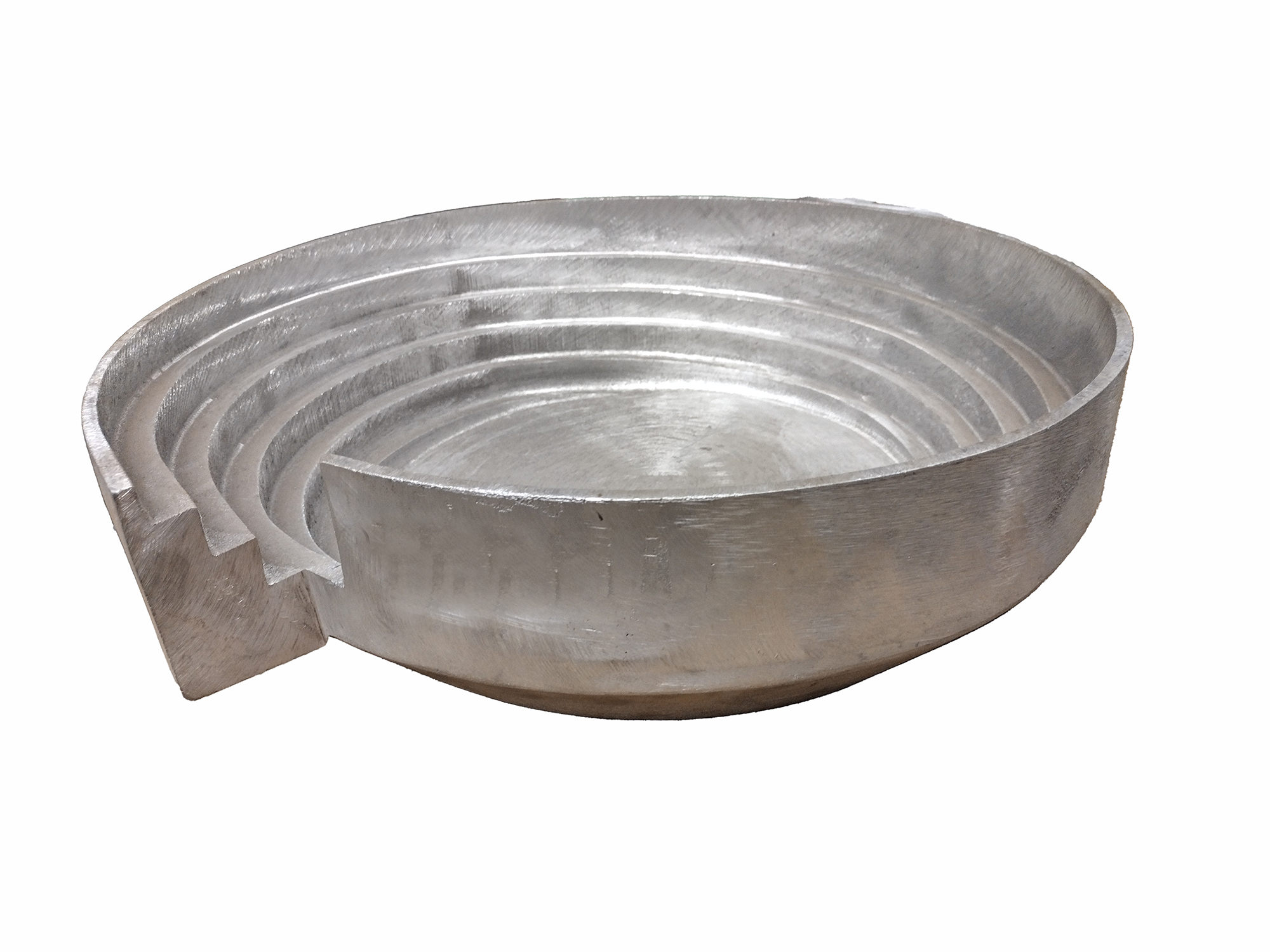

CB037

 Triple Track

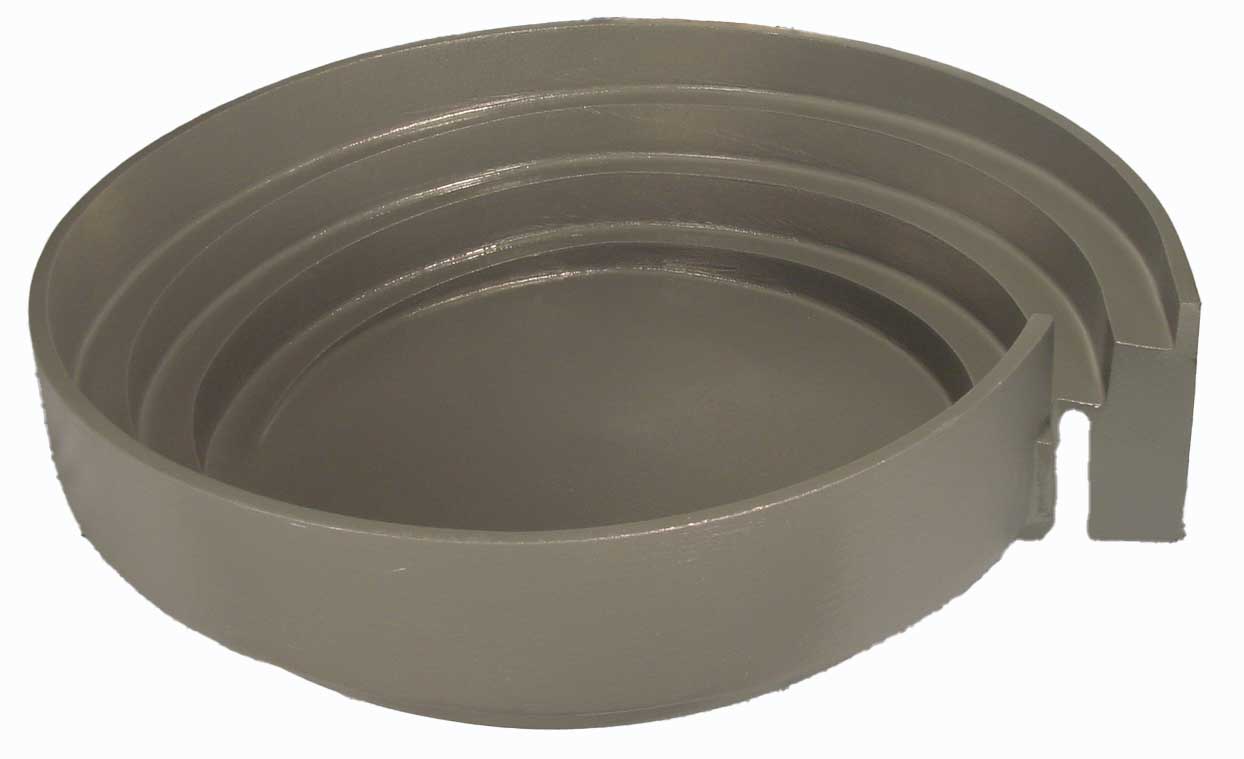

18 7/8 3 7/8 21 1/4 CB029

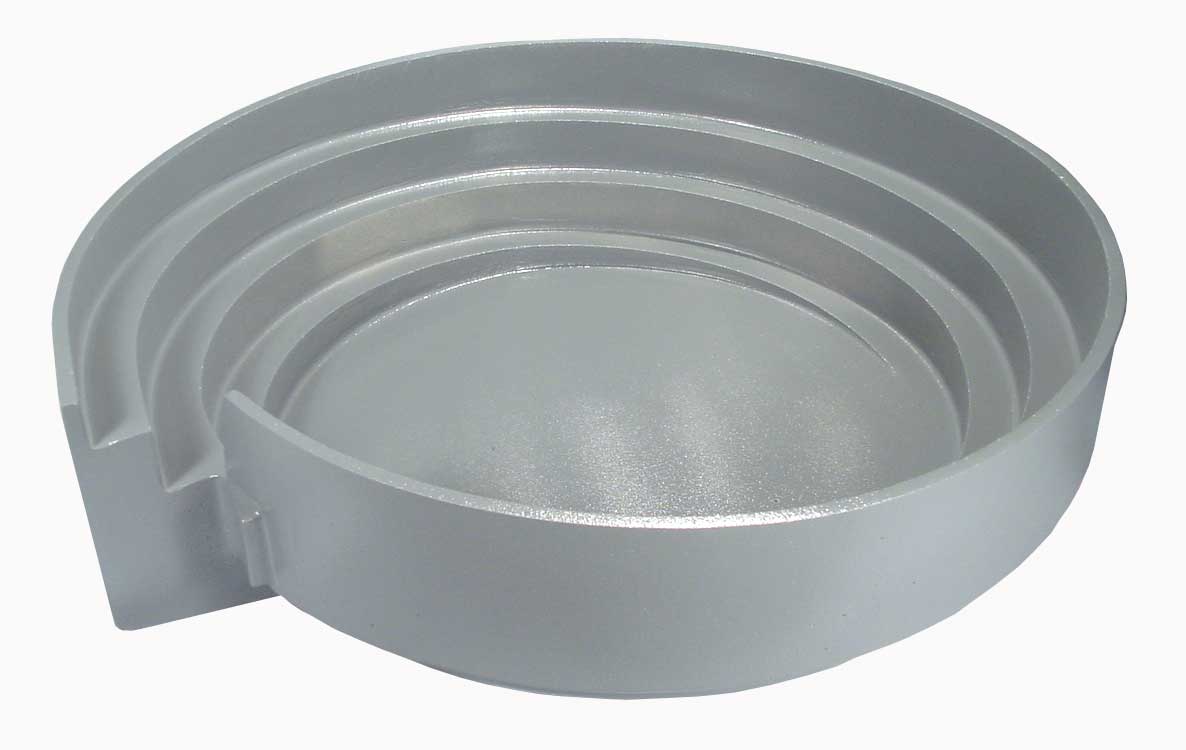

CB035

 Dual Track
18 7/8 3 7/8 21 1/2

CB041

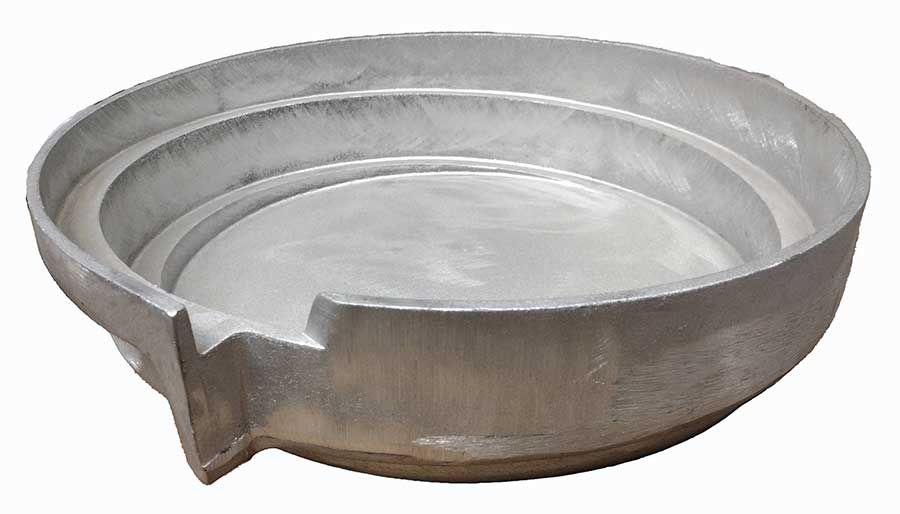

CB074

 Positive Track
18 7/8 3 7/8 27 CB106

CB109


60º V-Track with Pocket Cast in Discharge
18 7/8 4 20

CB135

CB118

90º V-Track with Pocket Cast in Discharge

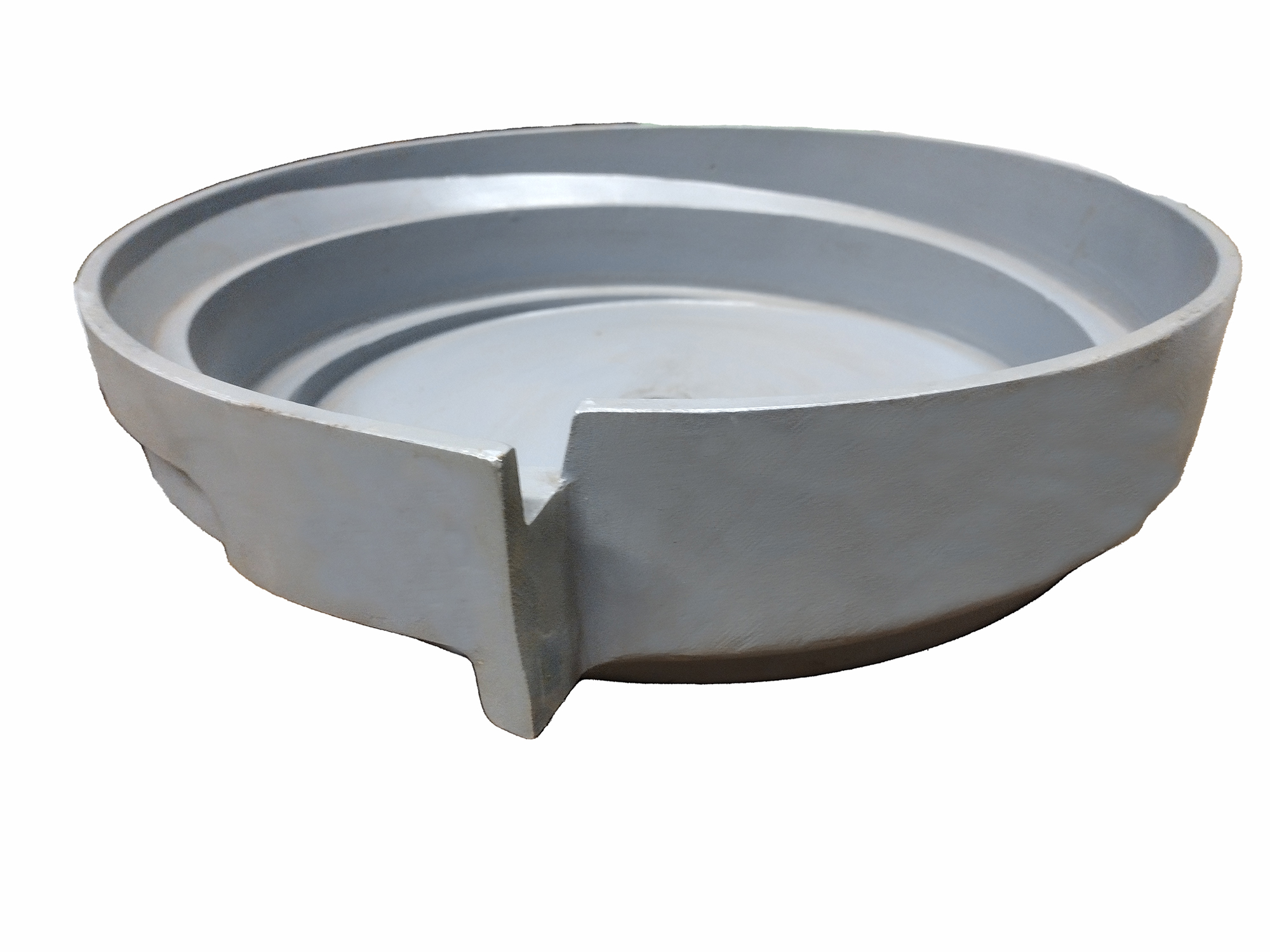

18 7/8 4 22

CB095

CB047

15º Negative Discharge

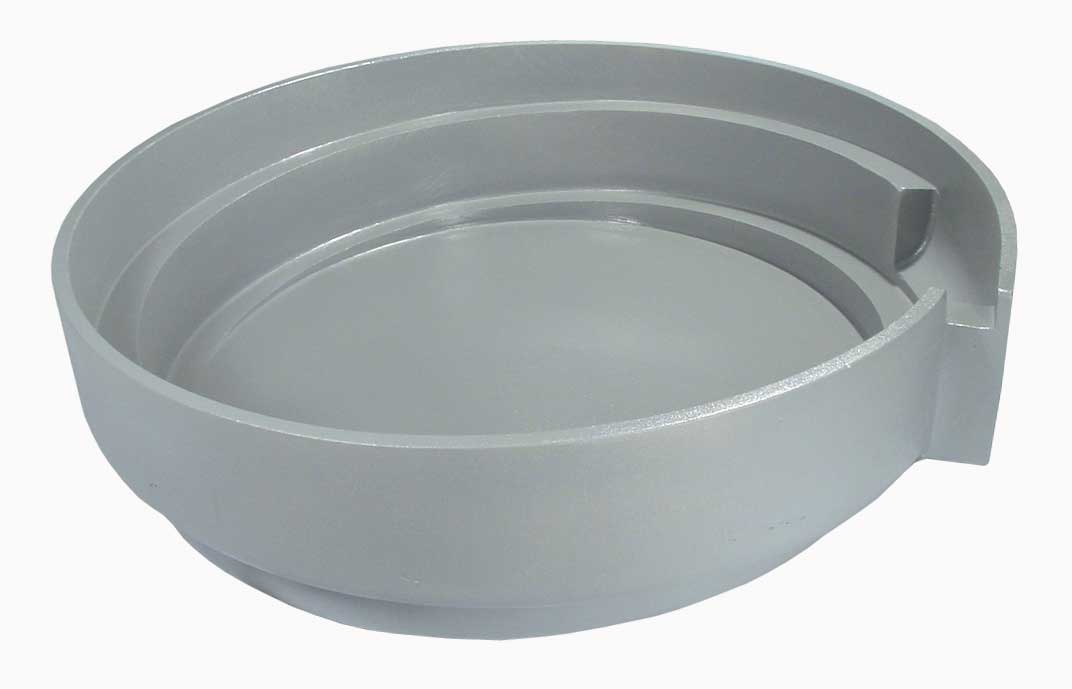

18 7/8 4 22 1/2 CB004




Positive Track with Extra Stock at Discharge
18 7/8 4 24 1/2 CB069

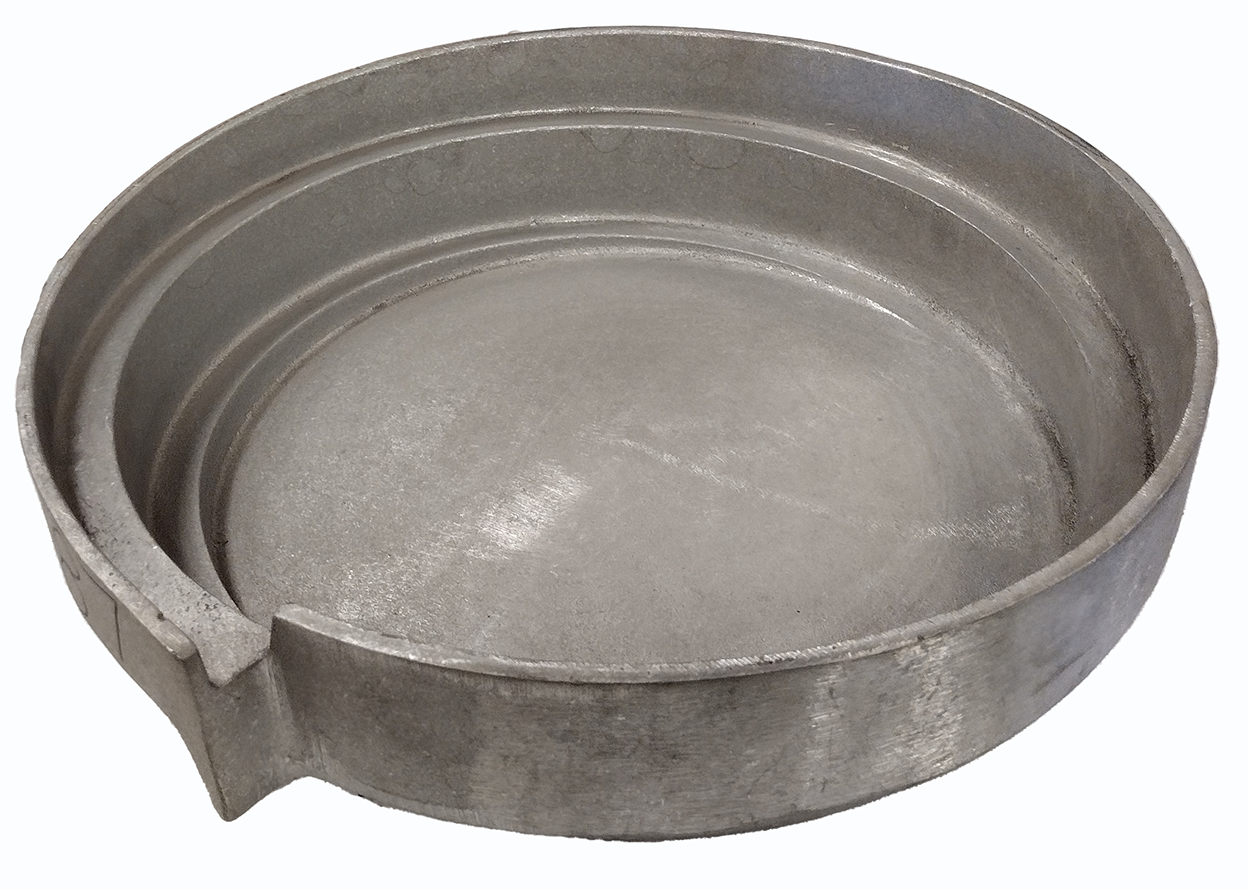

 CB087

Positive Track with Extra Stock at Discharge

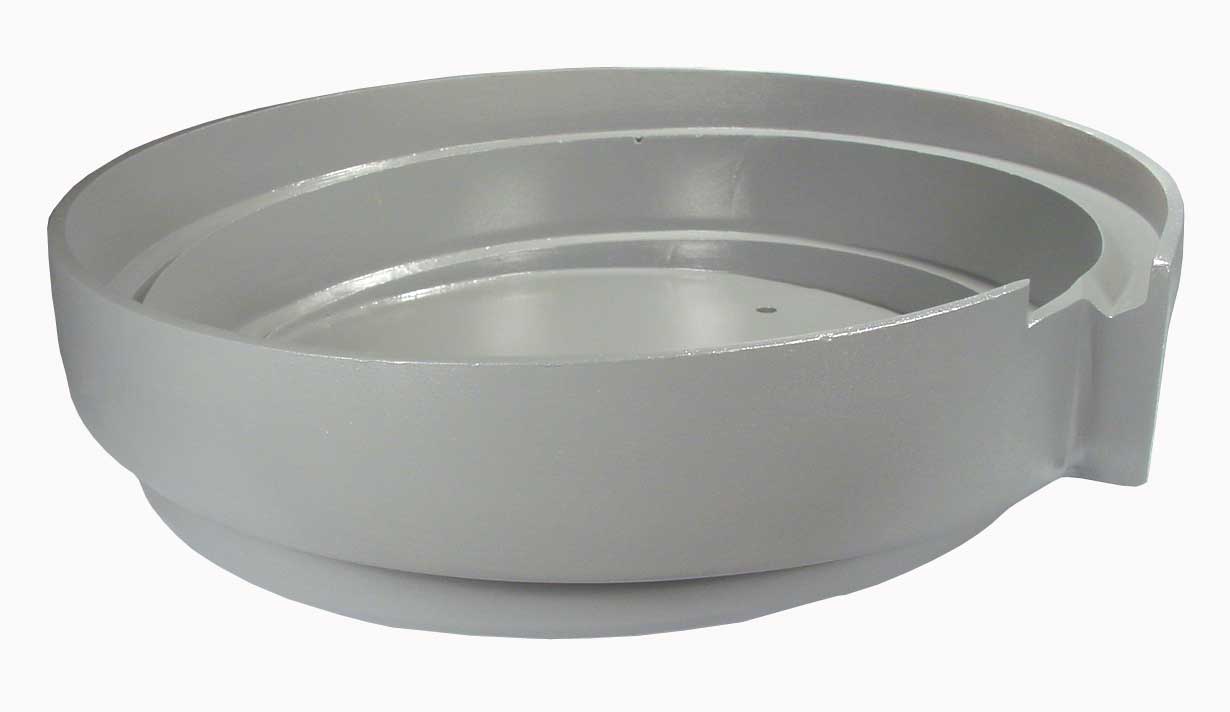

18 7/8 4 25 CB124

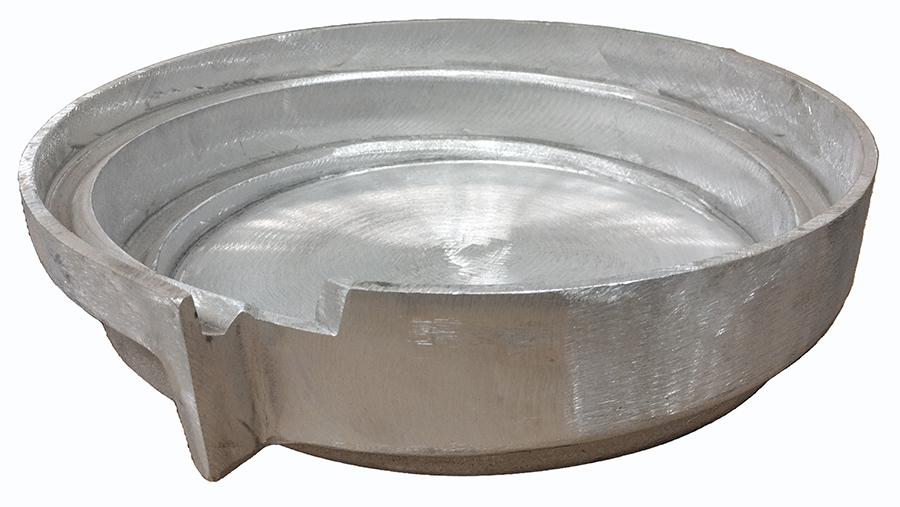

CB090

120º V-Track
18 1 1/4 3 7/8 19

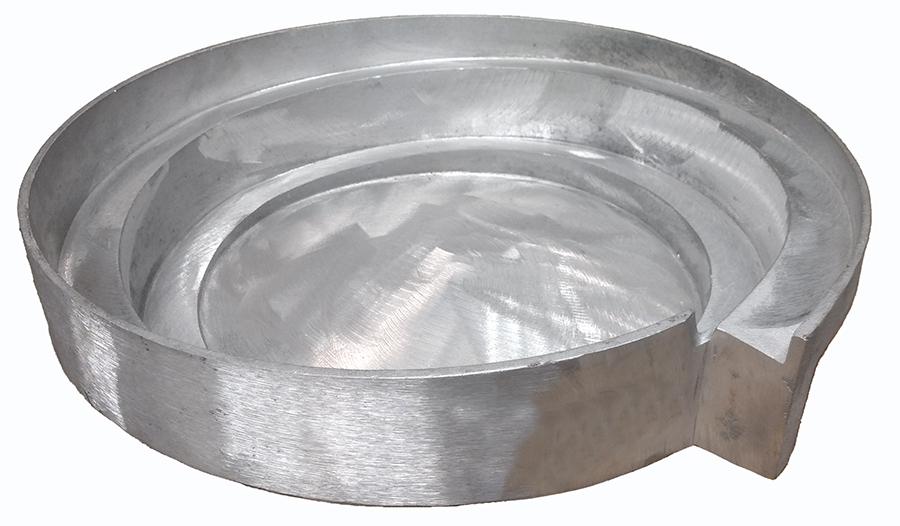

CB219

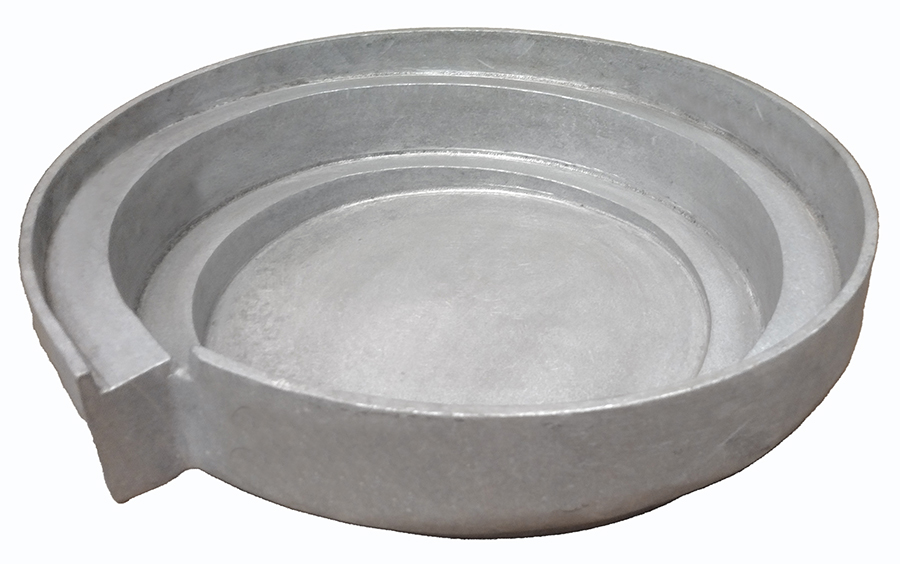

CB220

Positive Track

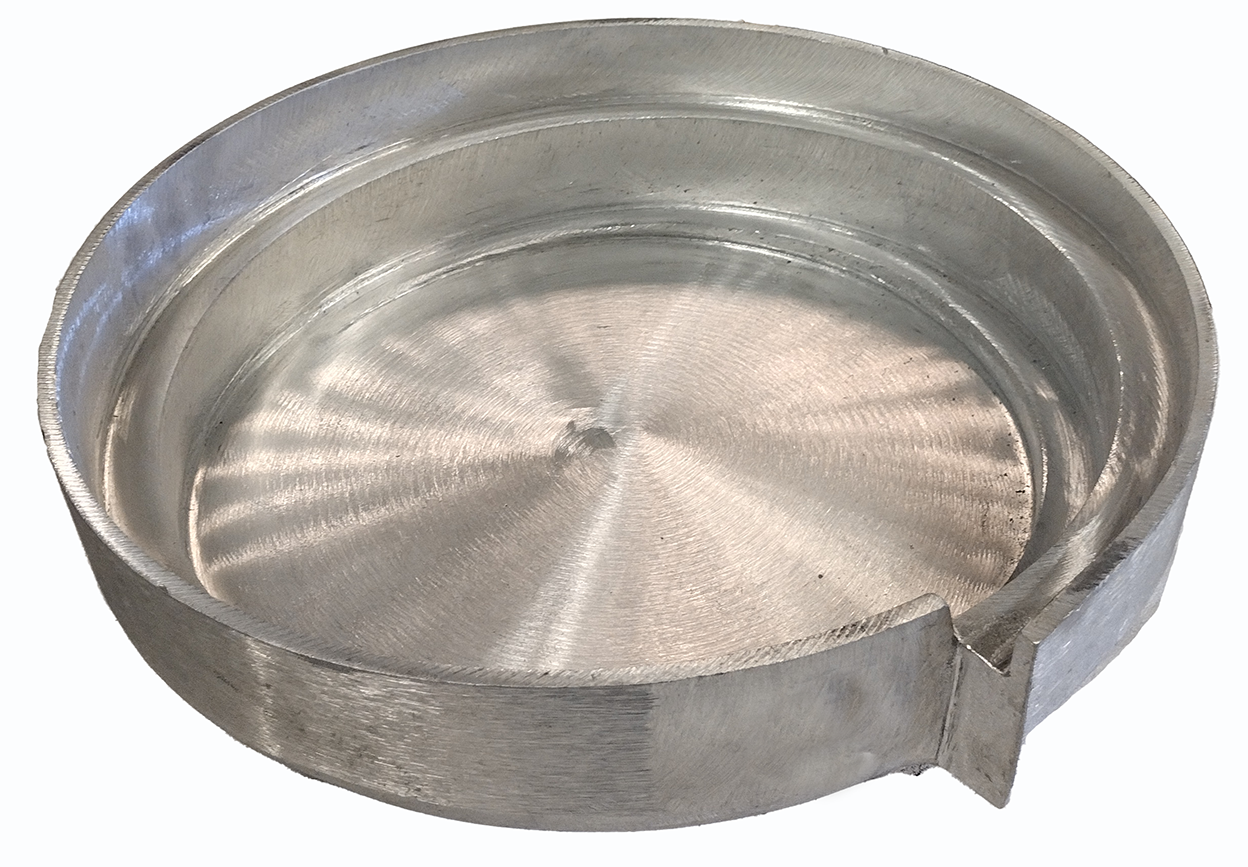

18 1 1/4 4 22 1/2  CB070

CB080

 15º Negative Discharge
18 1 3/8 4 1/16 27 CB071

  120º V-Track

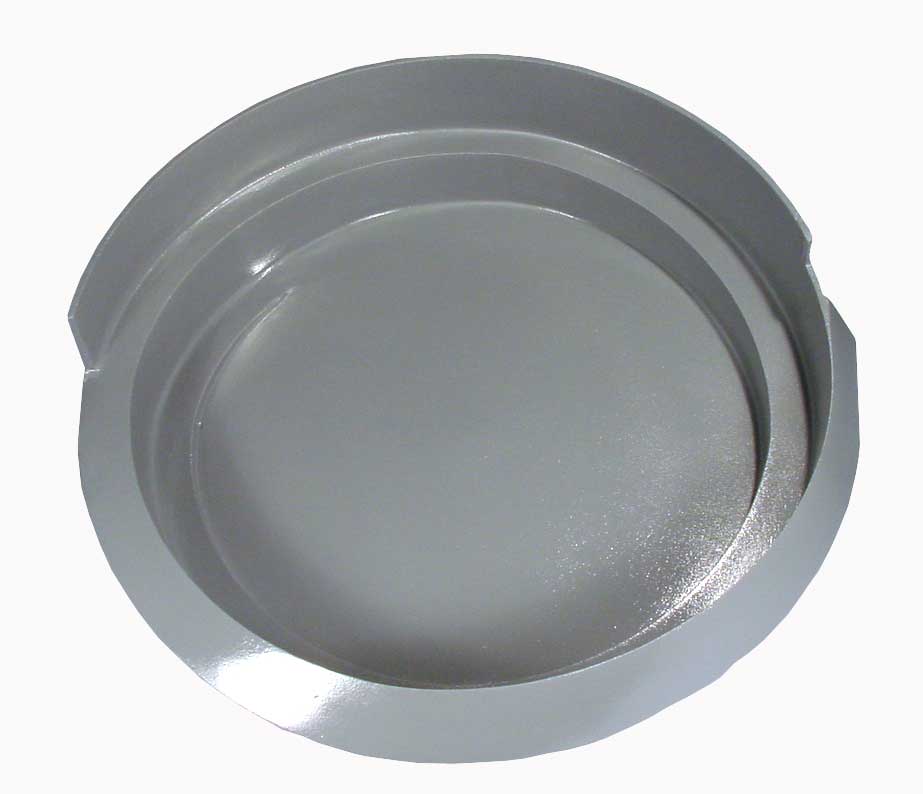

24 1 1/2 5 3/16 26 CB255

   120º V-Track (Lightweight Series)
24 1 1/2 5 3/16 26





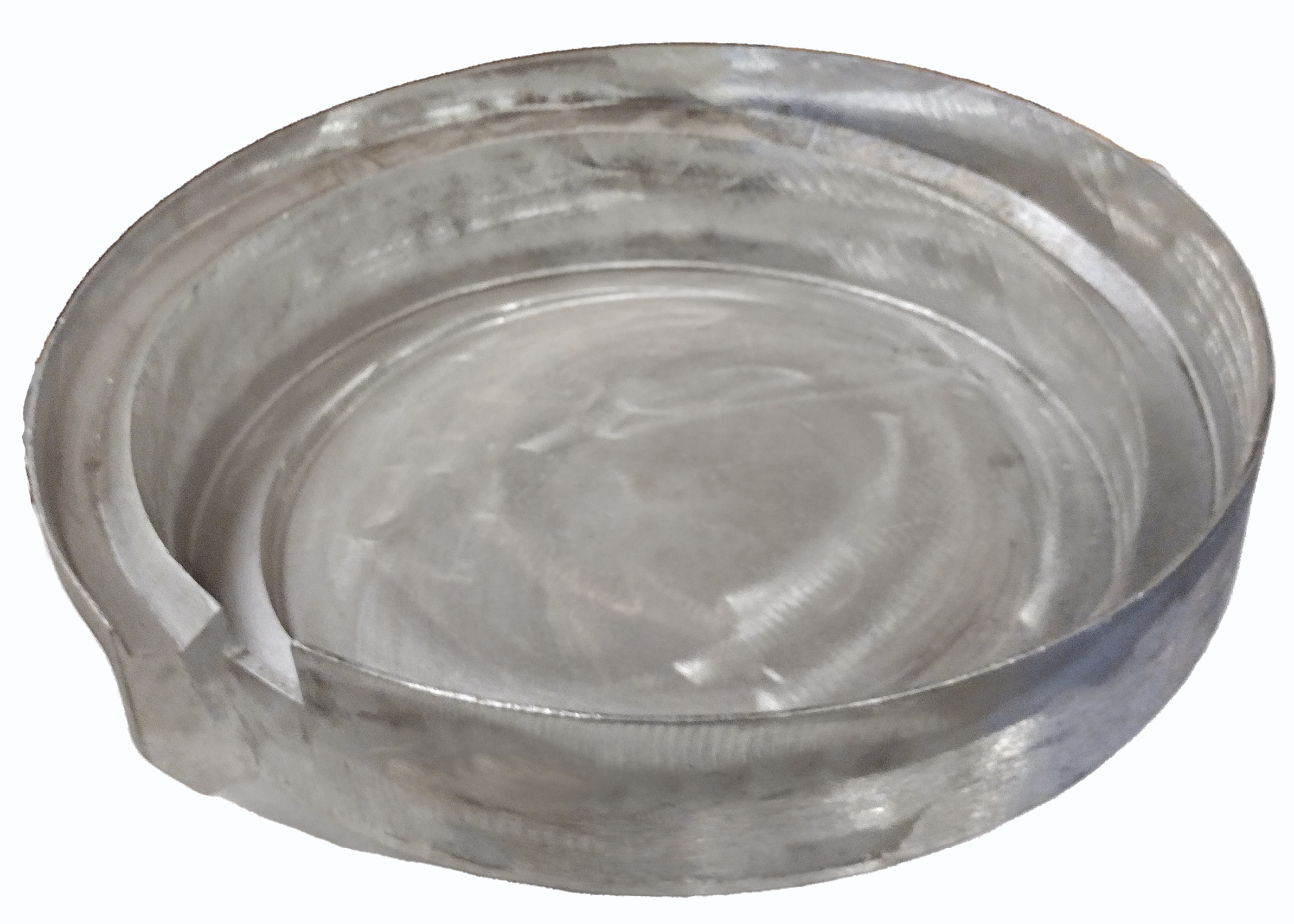

CB253

 120º V-Track (Lightweight Series)
24 1 1/2 5 1/4 24

CB168

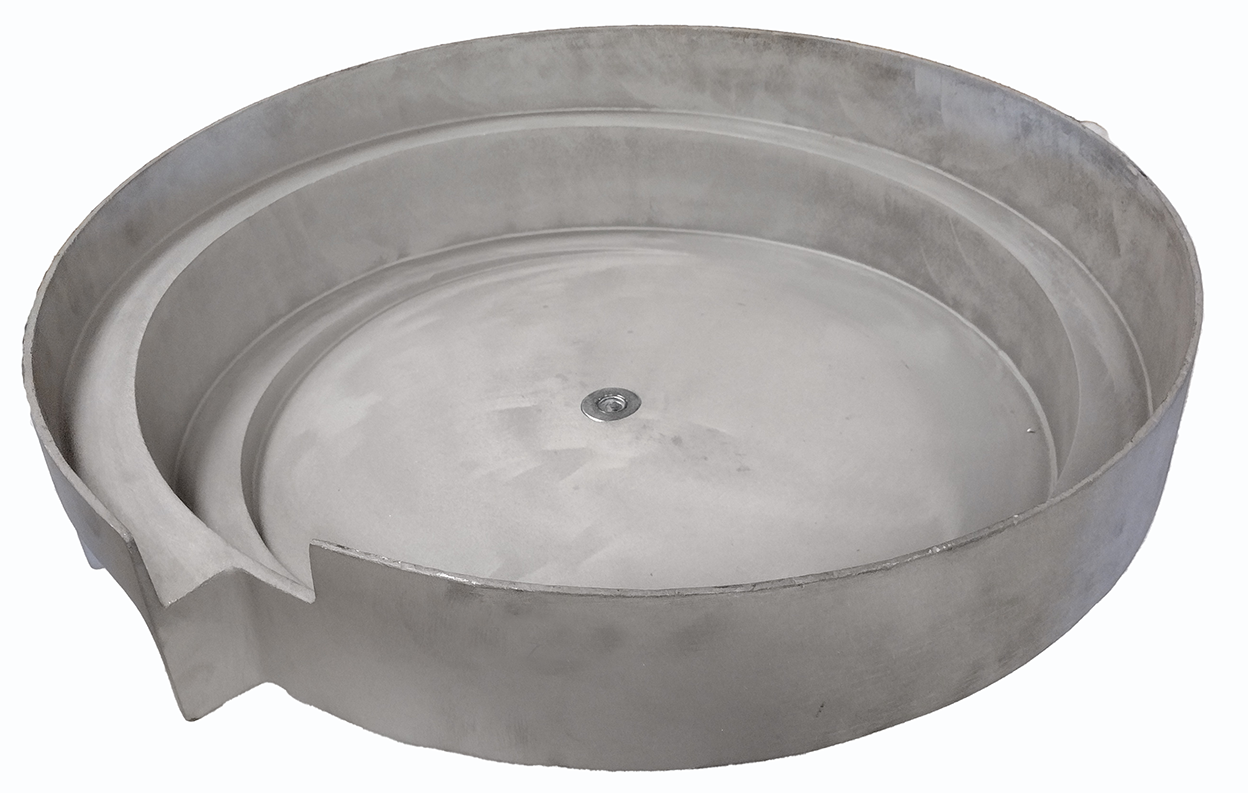

CB167

 Positive Track (Lightweight Series)
24 1 1/2 5 1/4 24

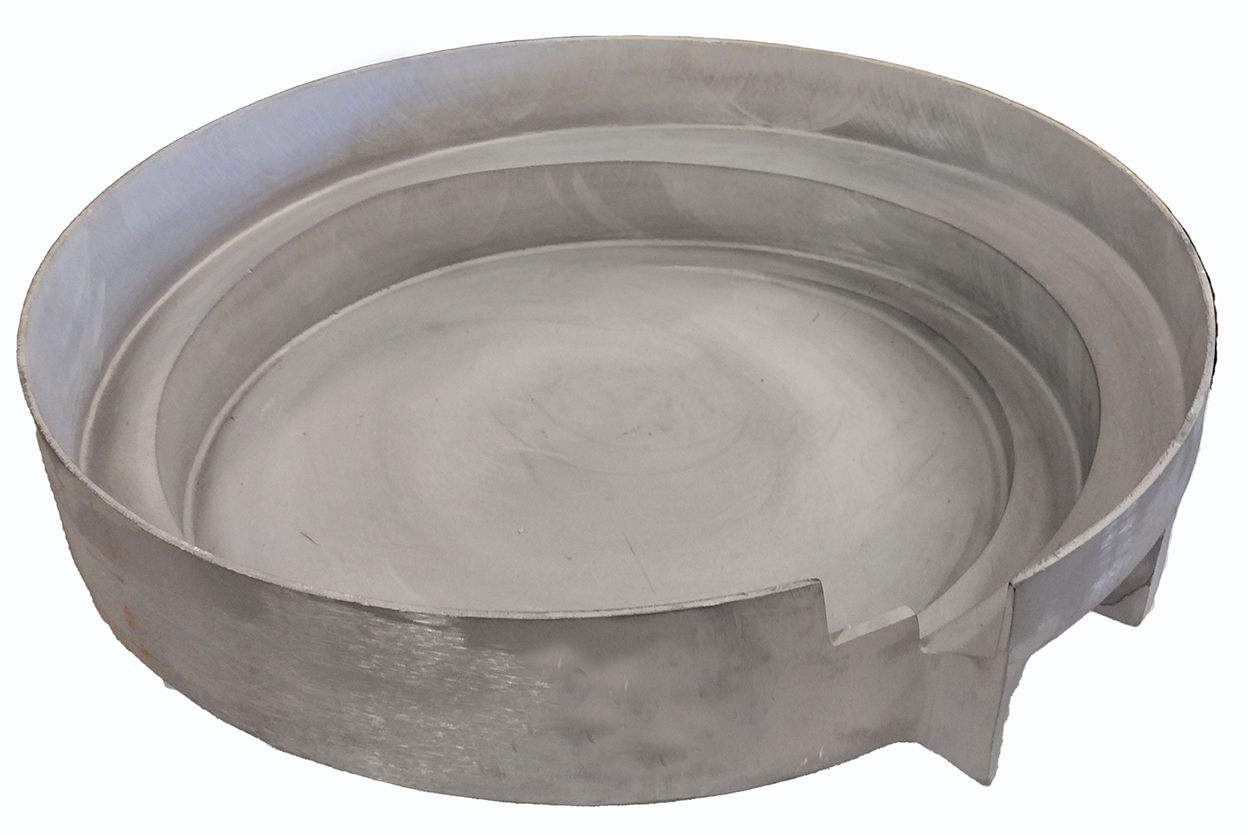

CB195

   30º Negative Discharge (Lightweight Series)

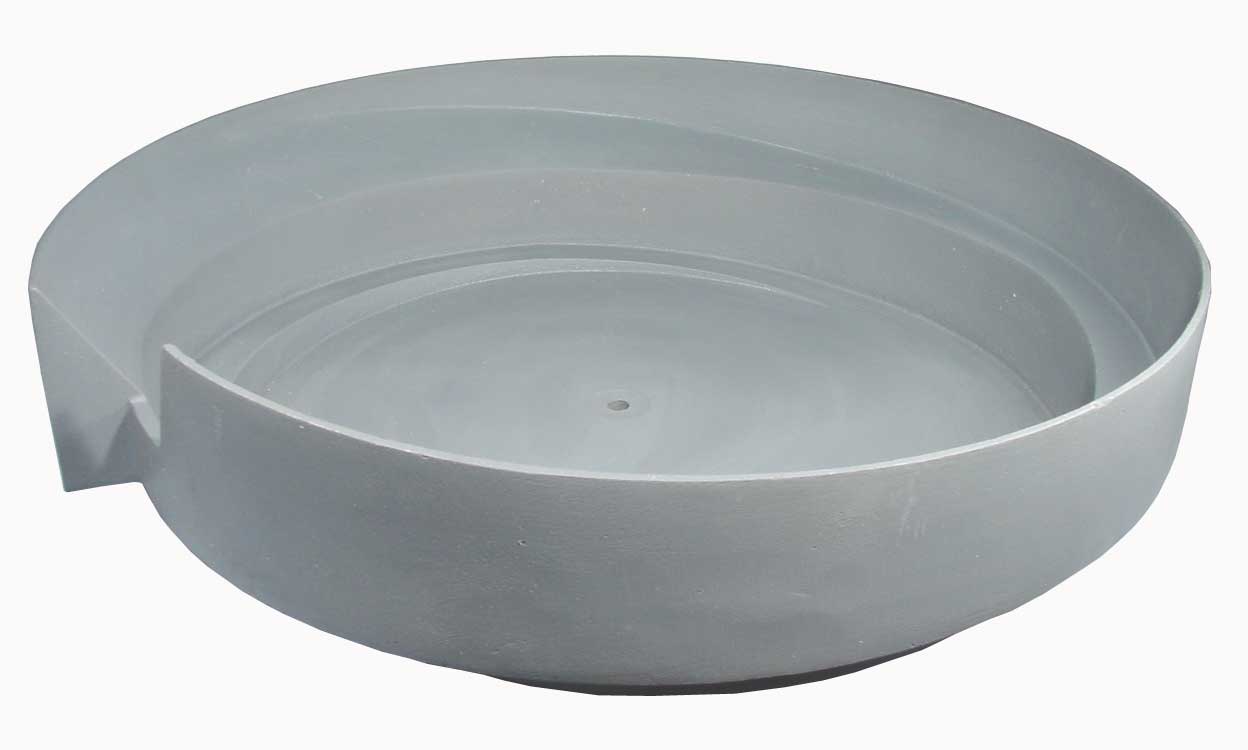

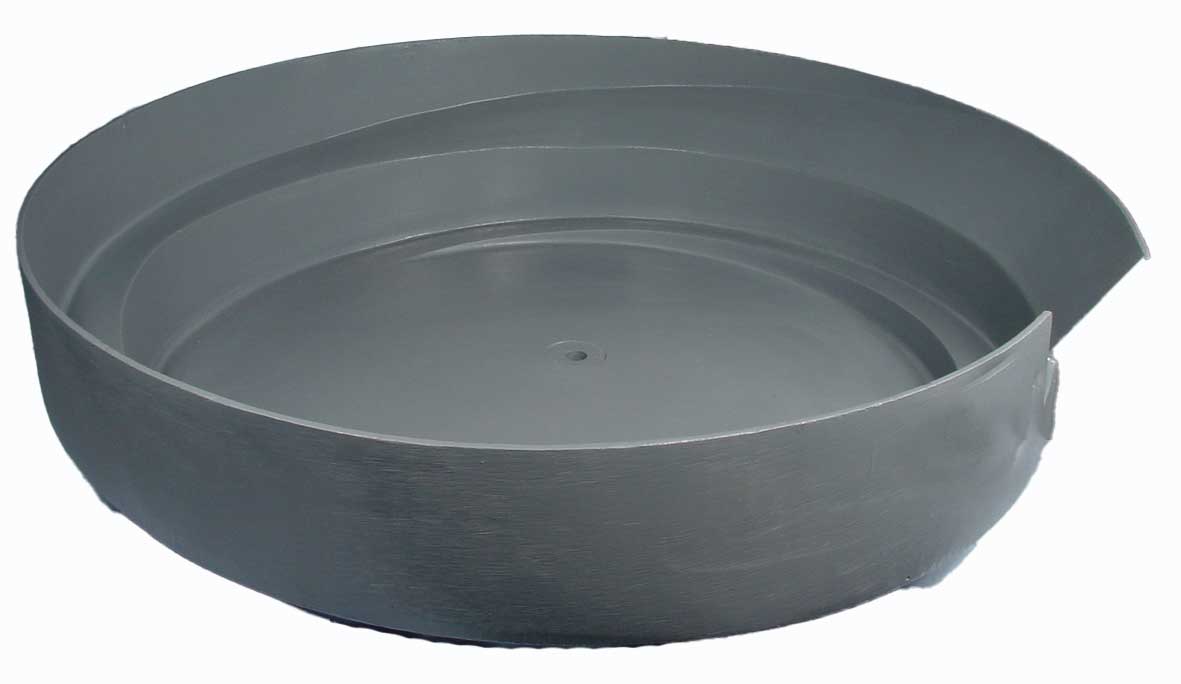

24 1 1/2 5 1/4 26 CB249

CB251

 60º Negative Discharge (Lightweight Series)

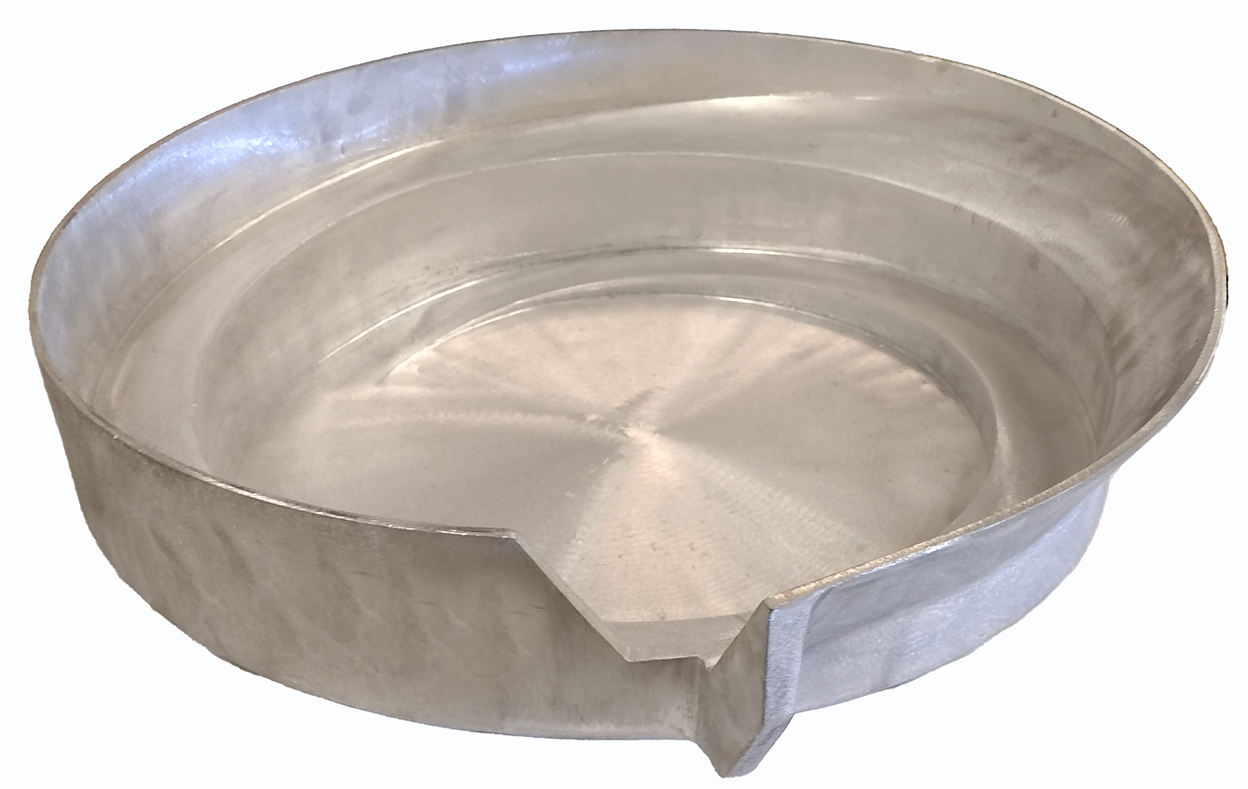

24 2 5 1/4 26  CB235

CB237

60º Negative Discharge (Lightweight Series)

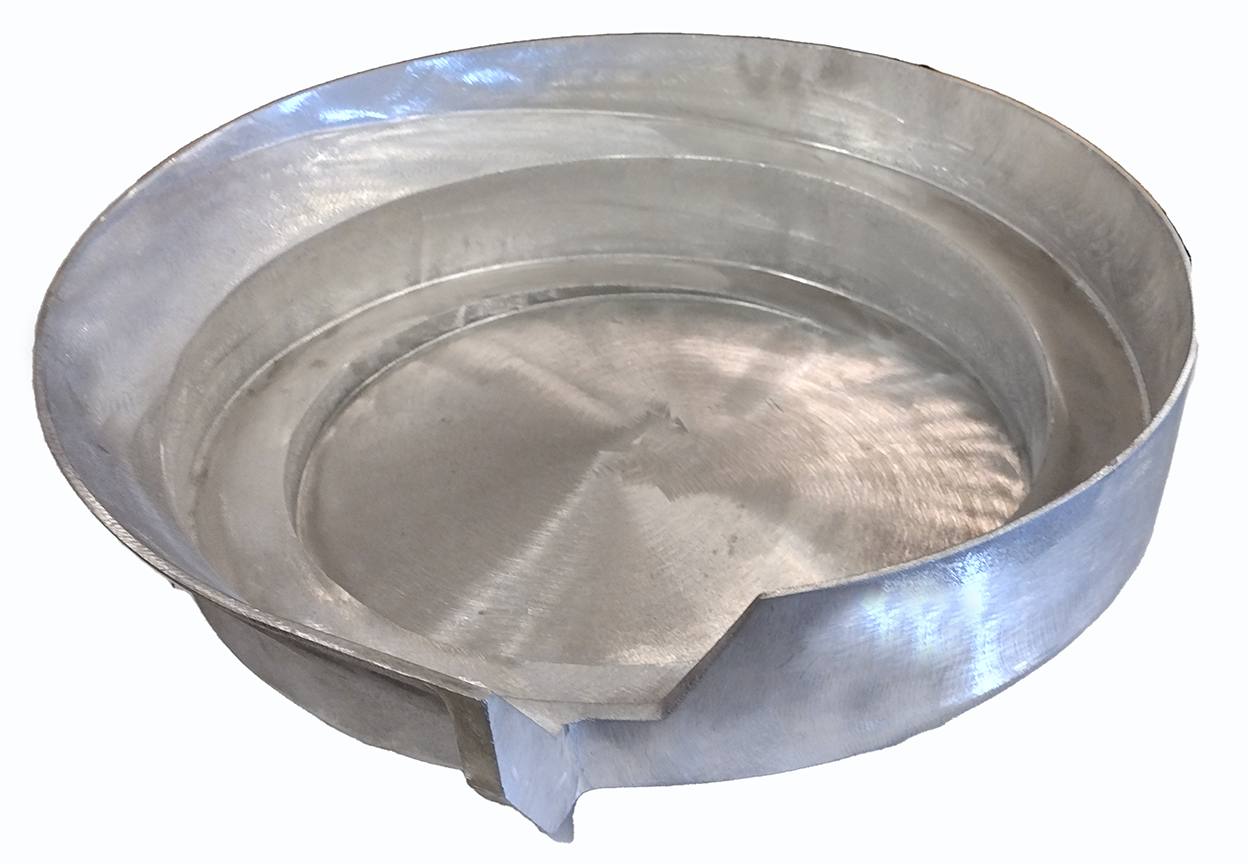

24 2 5 1/4 26  CB236

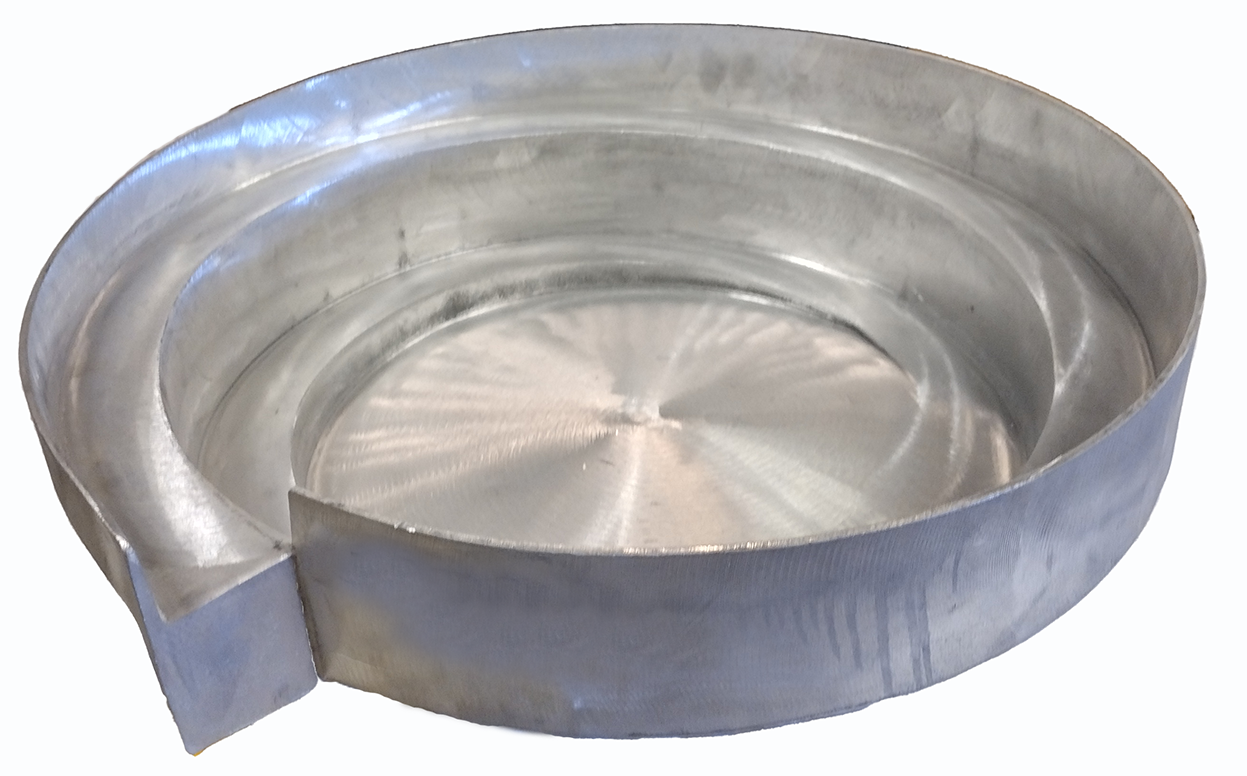

CB238

Positive Track (Lightweight Series)

Note: If a picture of the bowl you want is not available, please refer to the model's opposite clock operation as either picture is a mirror image of the other.



Dimensional Drawings for 15-24" Bowls (DWG)

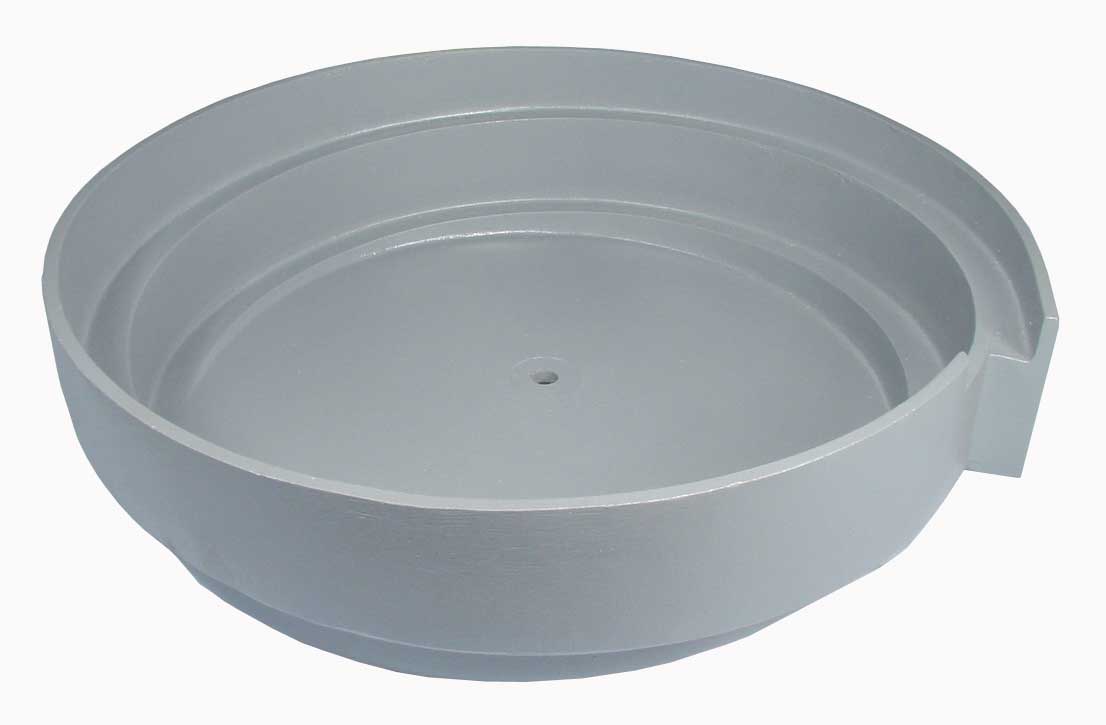

CB041
5/15/2017, 2:06 PM
CB090
5/15/2017, 2:07 PM
CB140
5/15/2017, 2:15 PM
CB167
5/15/2017, 2:17 PM

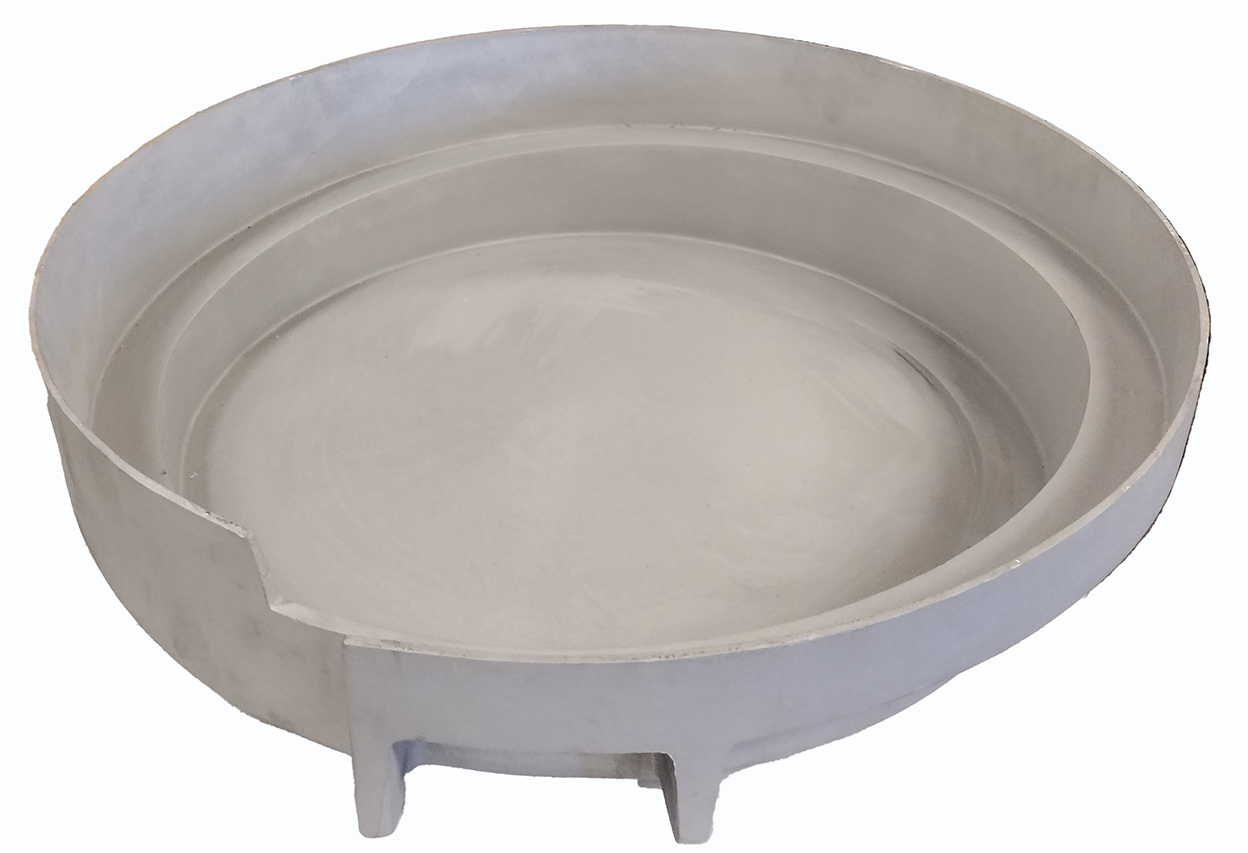

CB168
5/15/2017, 2:18 PM
CB219
5/15/2017, 2:18 PM
CB235
5/15/2017, 2:18 PM

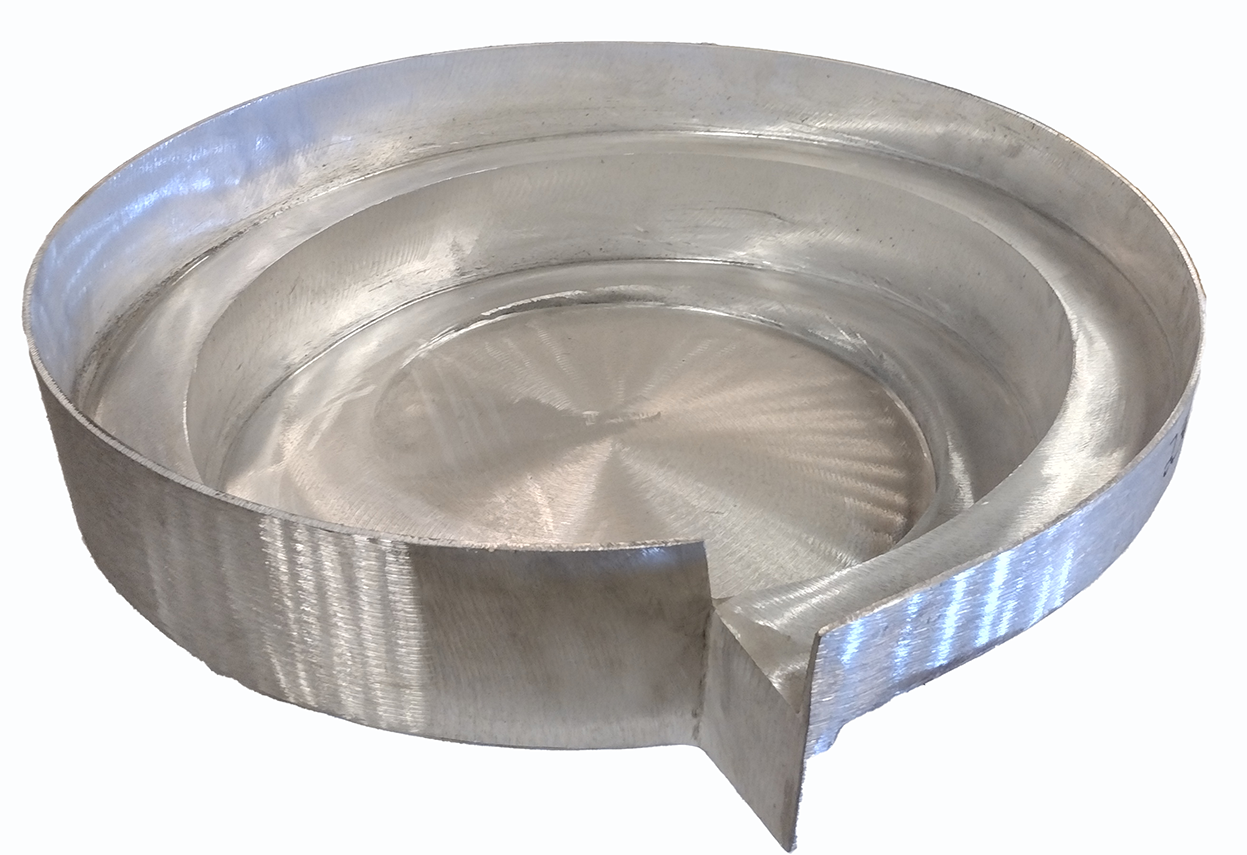

CB236
