10" to 18" Vibratory Feeder Bowls for Use With Model 10 & 10FA Base Unit

Bowl Diameter

(Inches)

Track Width

(Inches)

Bowl Depth

(Inches)

Bowl Weight

(Pounds)

Bowl Part Number Track Configuration
Clockwise  Counterclockwise
 10 5/16  2 1/16 6 1/2

CB057

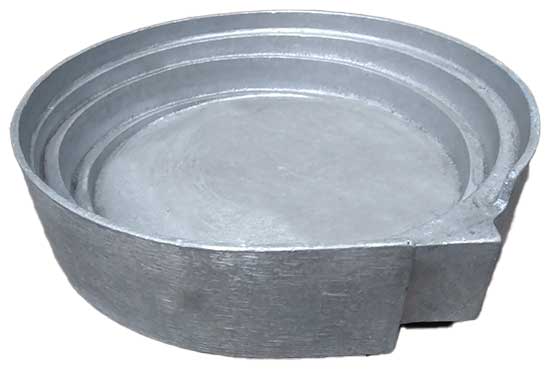

CB034

Positive Track
10 7/16 2 1/16 6 1/2

CB058

CB053

Positive Track
11 3/4 2 7

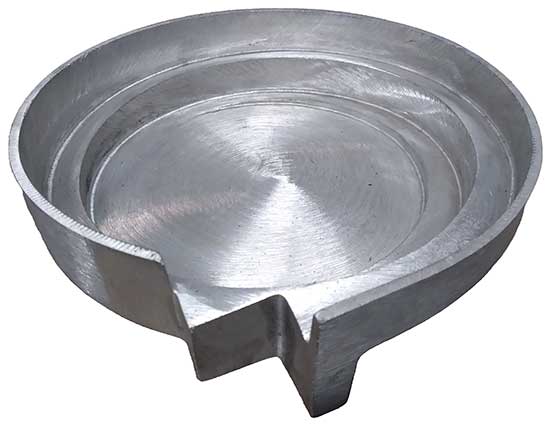

CB088

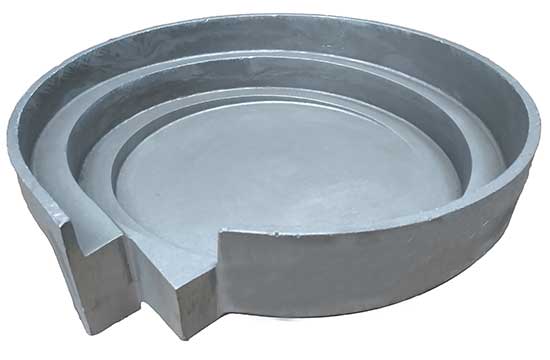

CB038

Positive Track
11 3/4 2 1/4 7

CB089

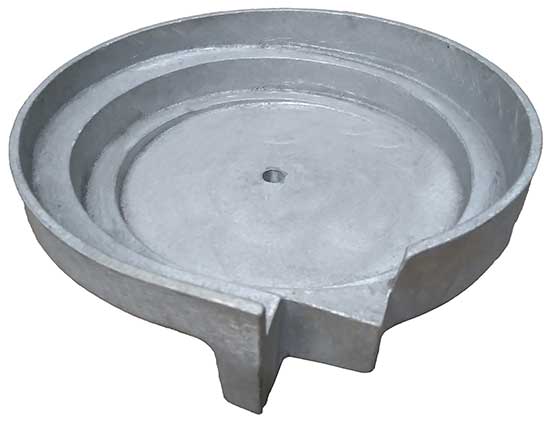

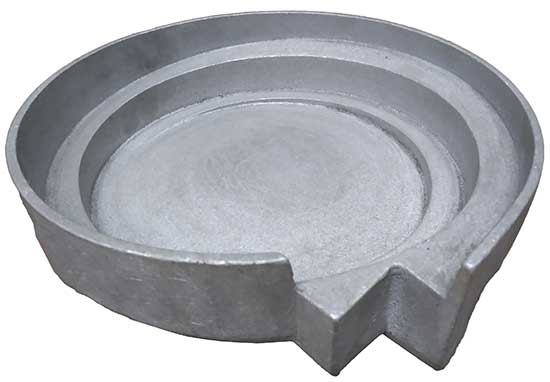

CB056

15º Negative Discharge (Starts Positive)
12 1/4 3 7 1/2

CB055

Quad Radius Track
12 3/16 3 1/8 8 1/4

CB126

Triple Track
12 3/16 3 1/8 8 1/2

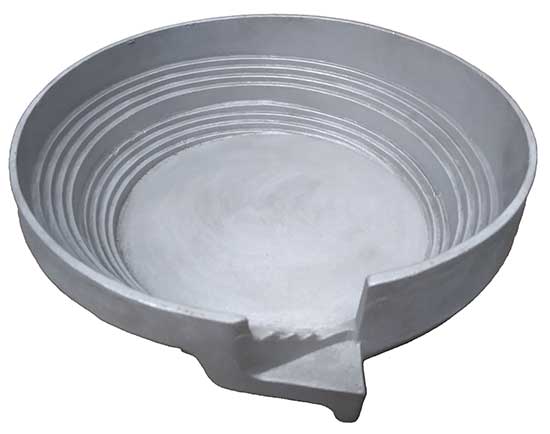

CB083

Quad Track
12 3/8 3 1/4 8 1/2

CB104

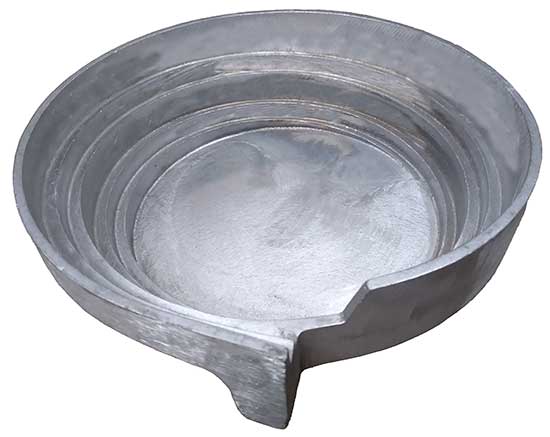

CB040

Dual Track
12 5/8 3 1/2 9 1/2

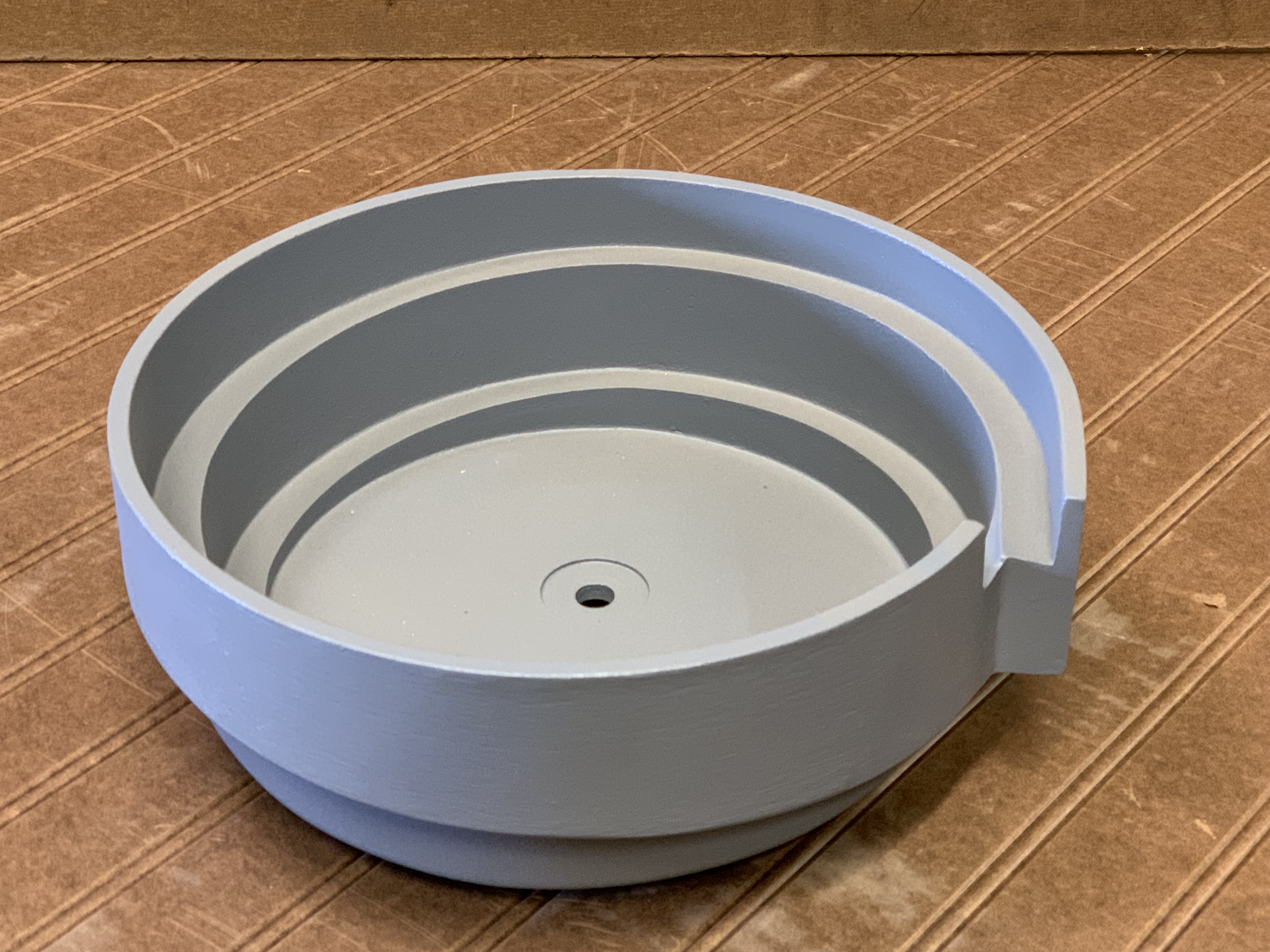

CB131

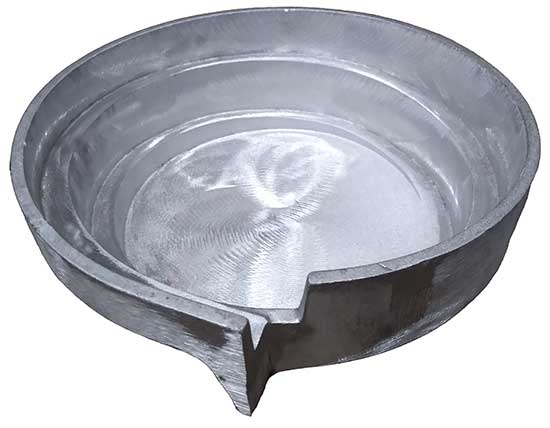

CB130

Positive Track
12 5/8 3 1/2 9 1/2

CB163

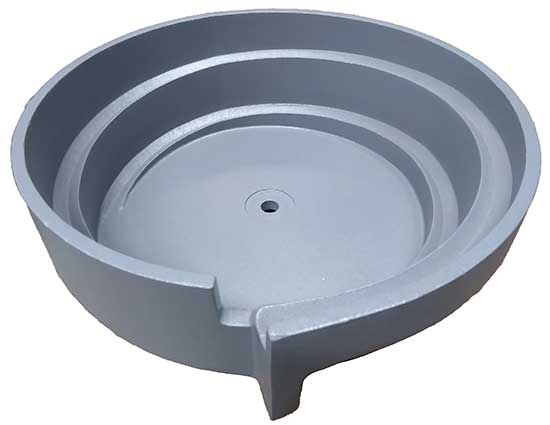

CB138

120º V-Track
12 5/8 3 1/2 9 1/2

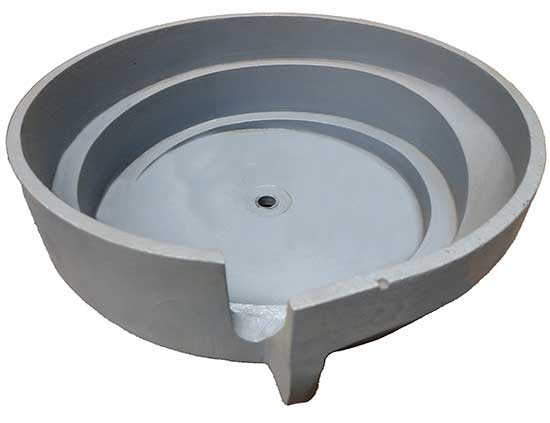

CB153

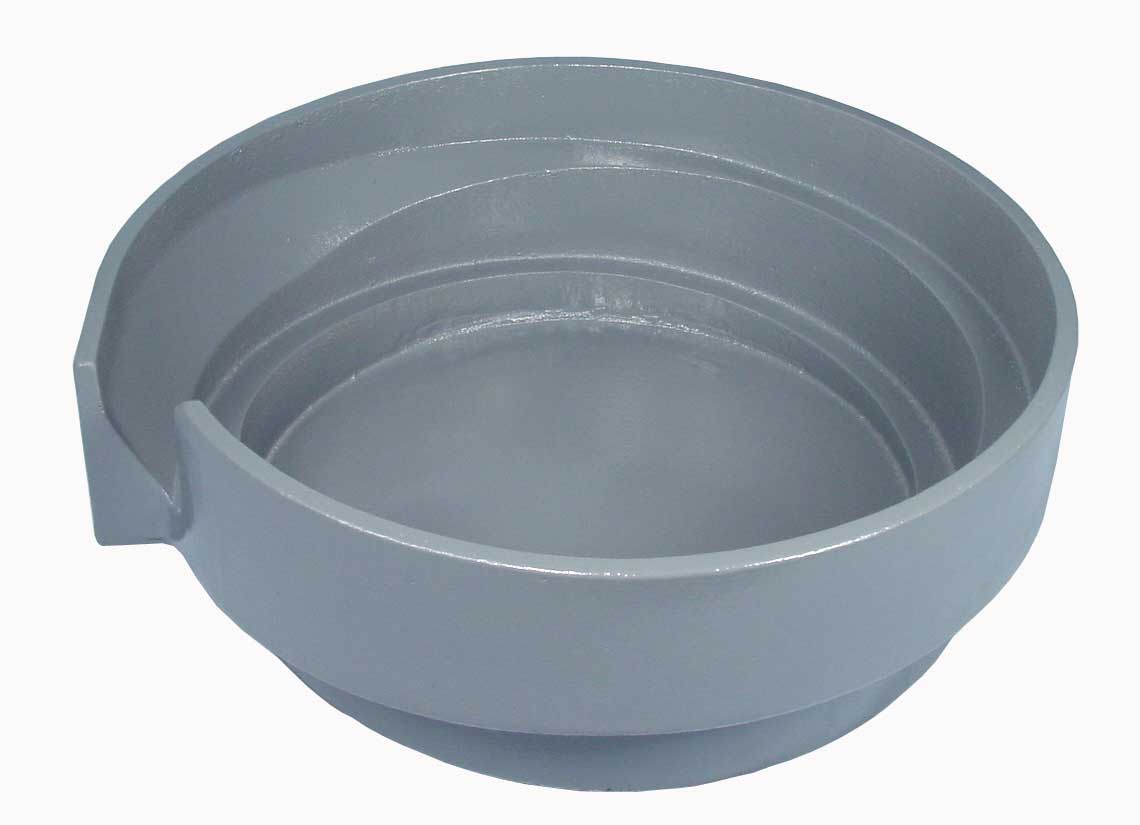

CB148

60º Negative Discharge
12 5/8 3 1/2 9 1/2

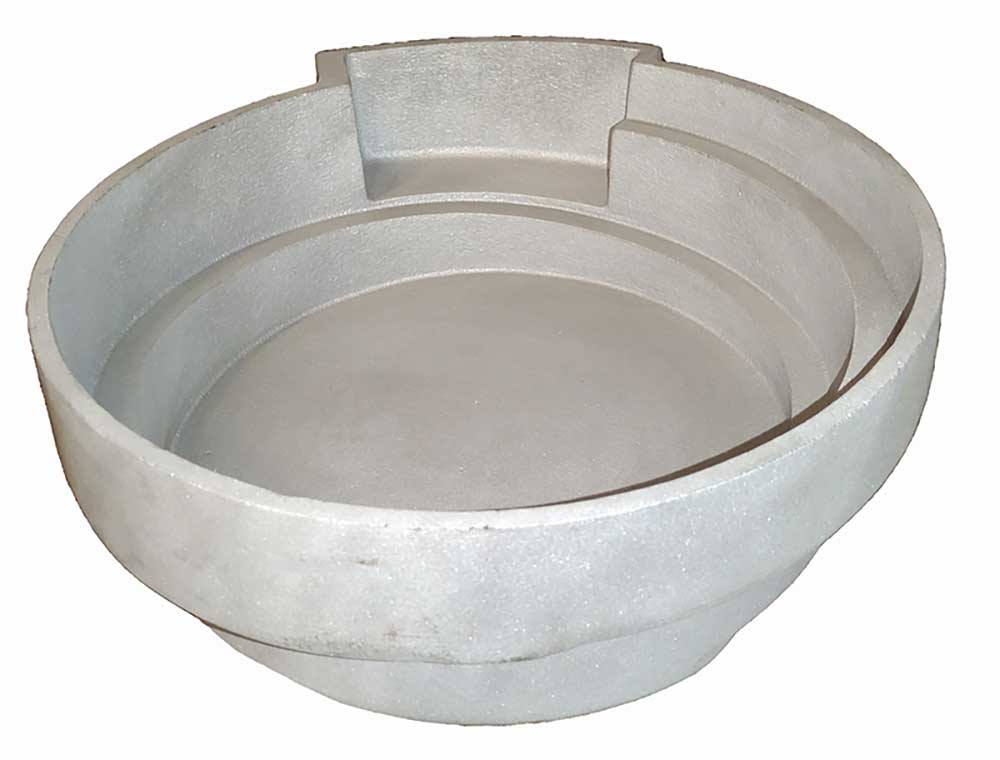

CB174

Positive Track with Pocket Cast in Discharge
14 3/4 3 1/8 9 1/4

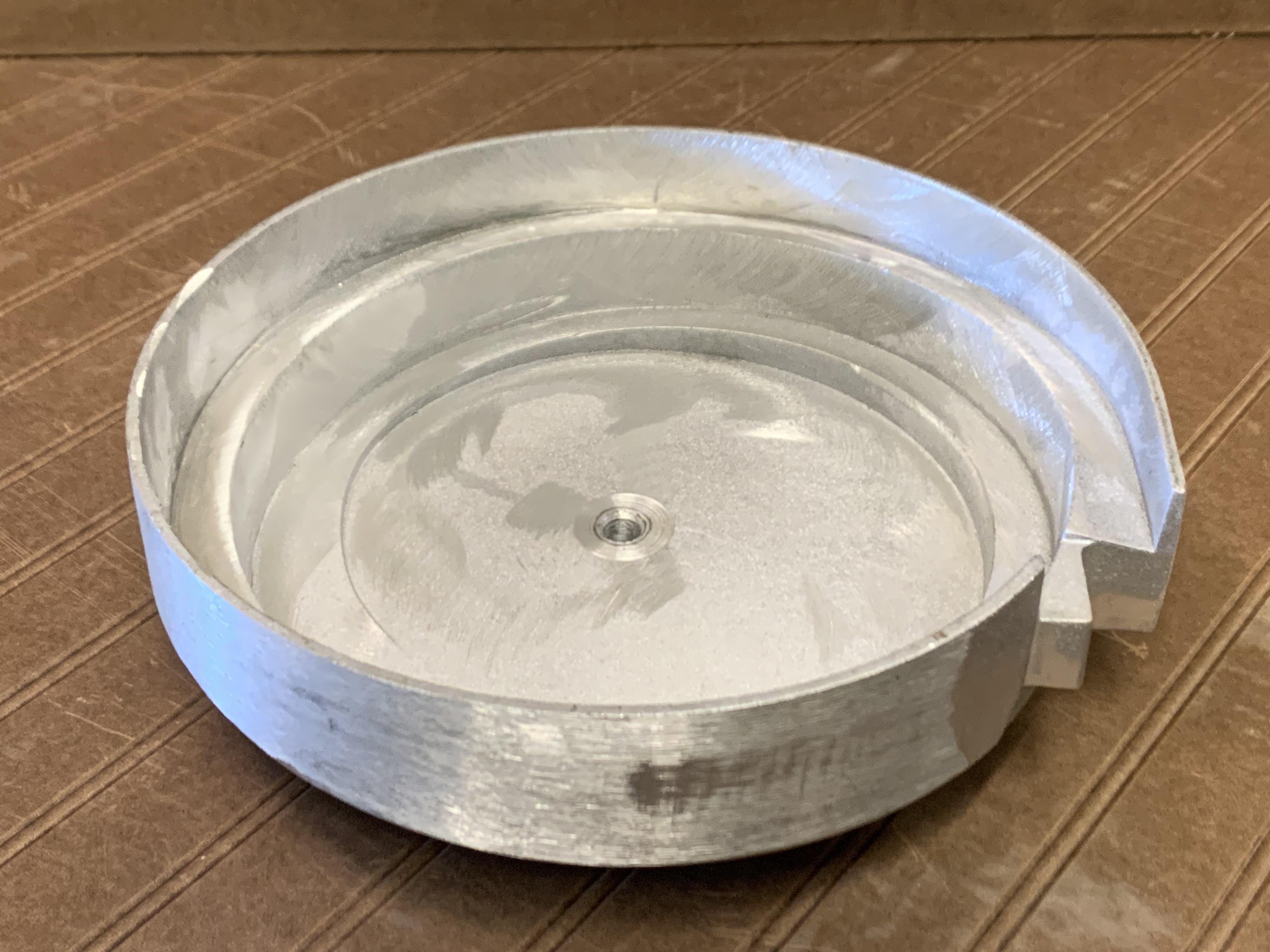

CB196

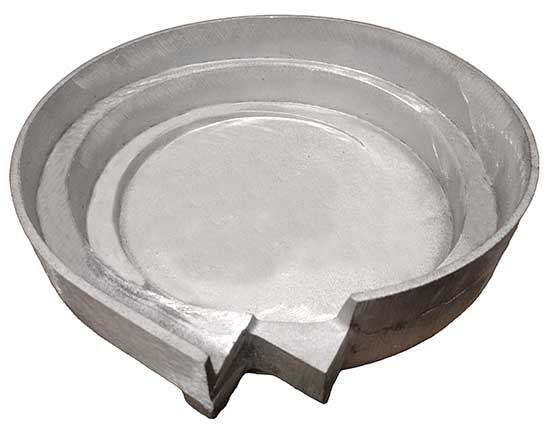

CB203

Positive Track
18 1 3 1/2 13 1/2

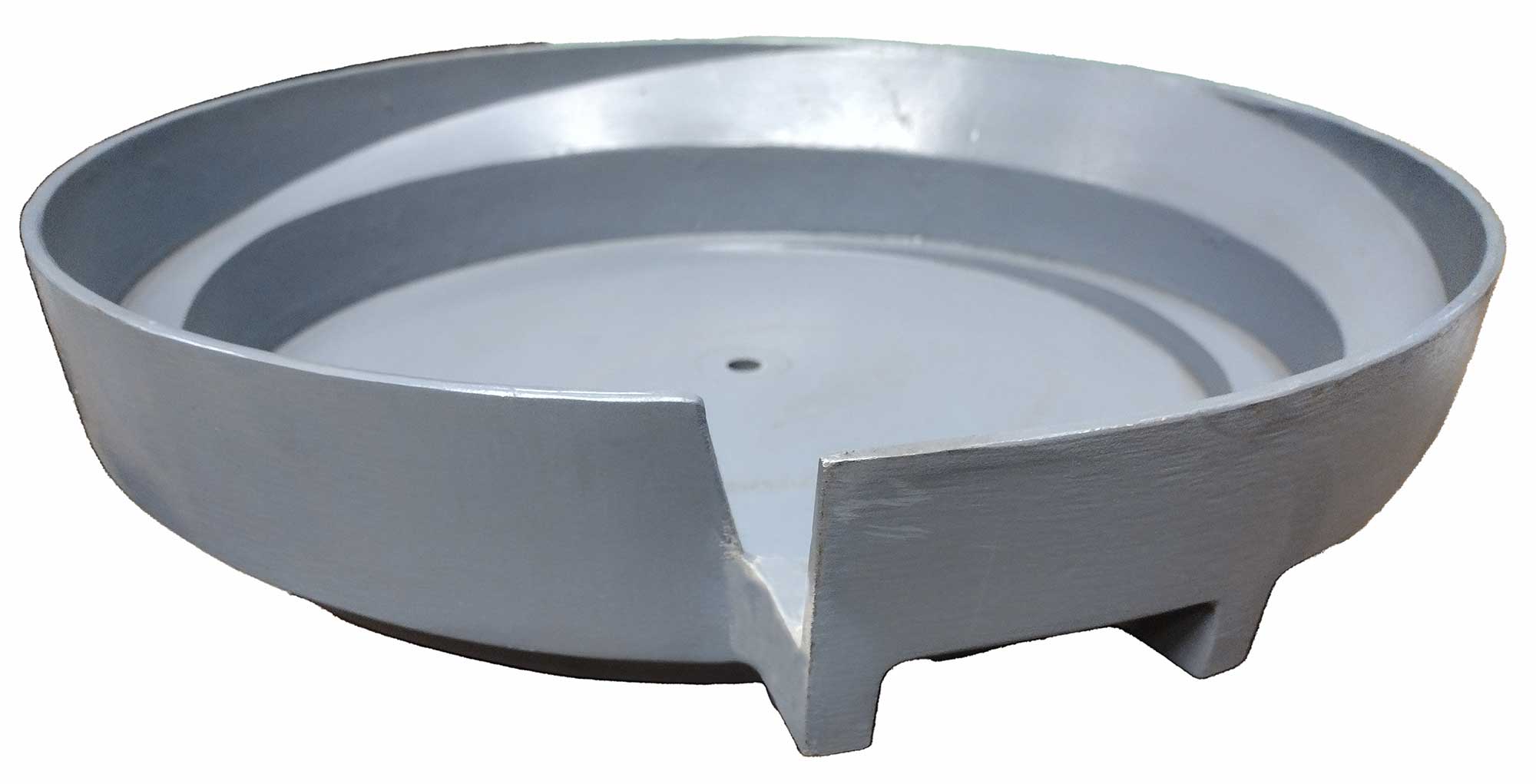

CB364

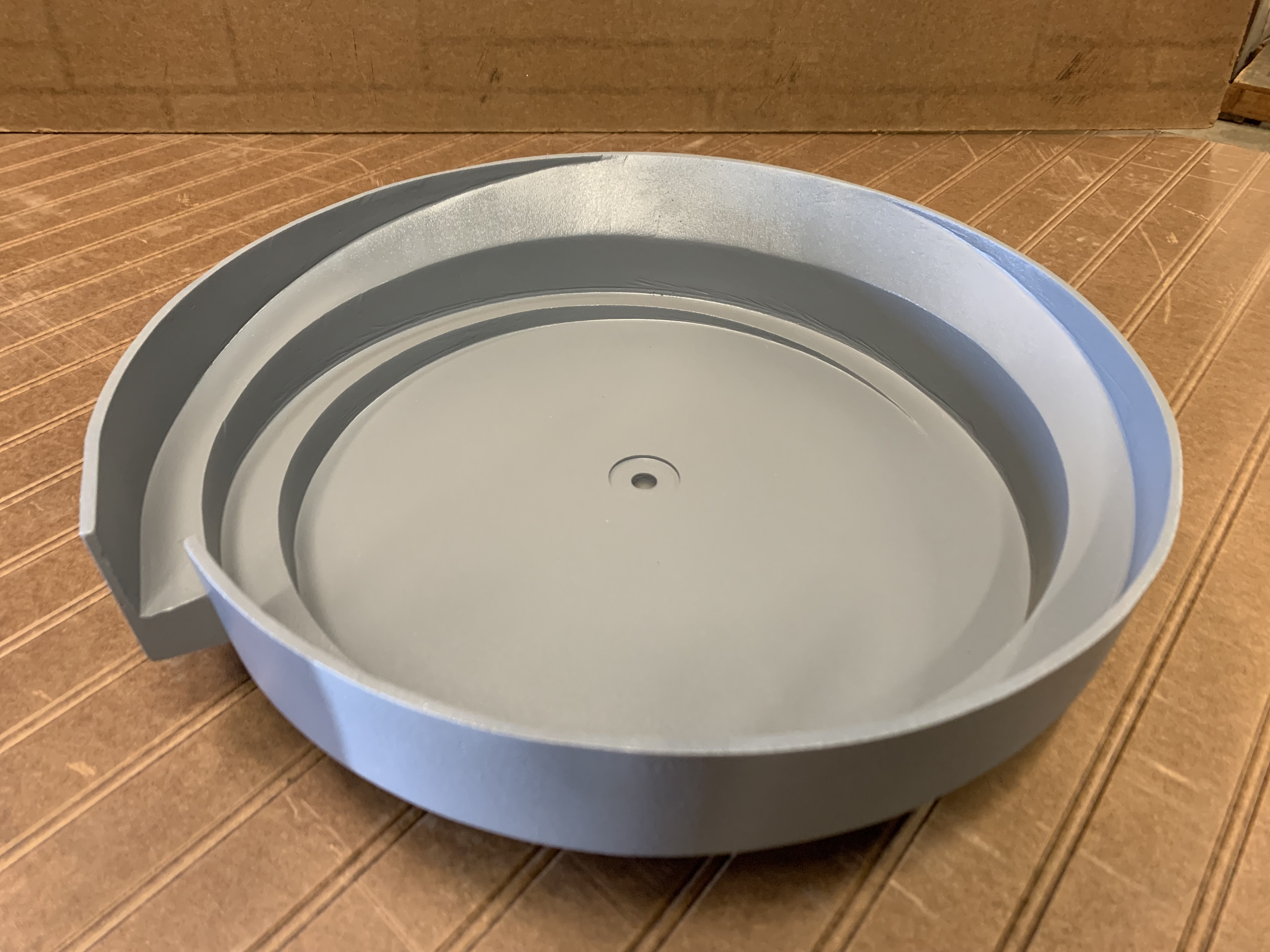

CB365

60º Negative (Starts and Ends Positive) (Lightweight Series)
18 1 4 13 1/2

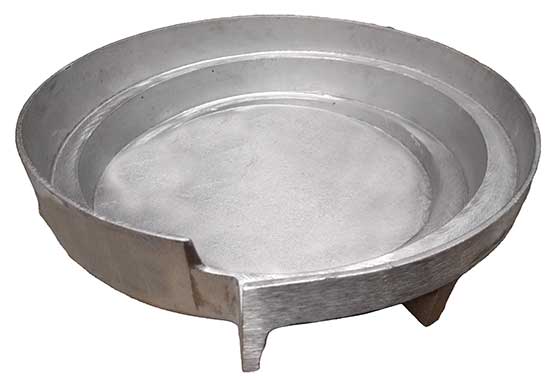

CB154

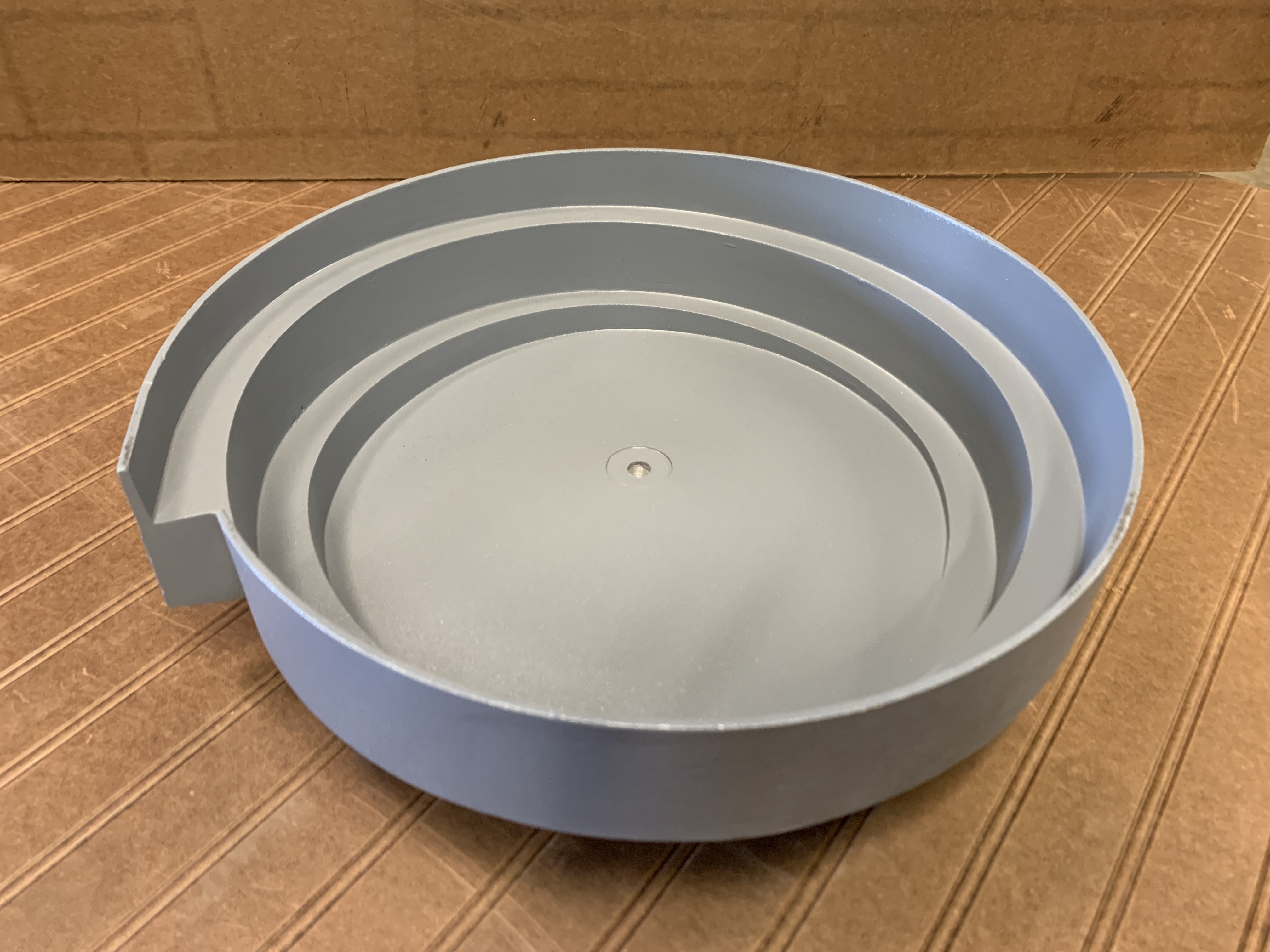

CB152

Positive Track (Lightweight Series)
18 1 4 13 1/2

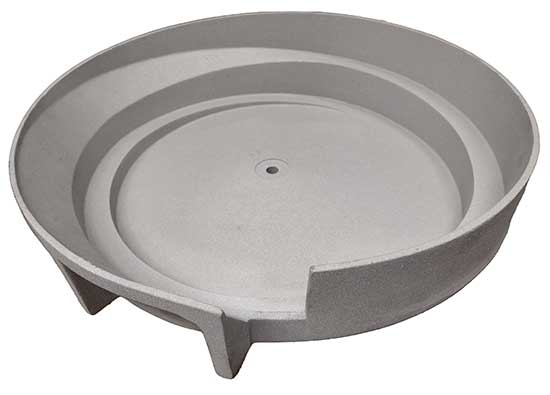

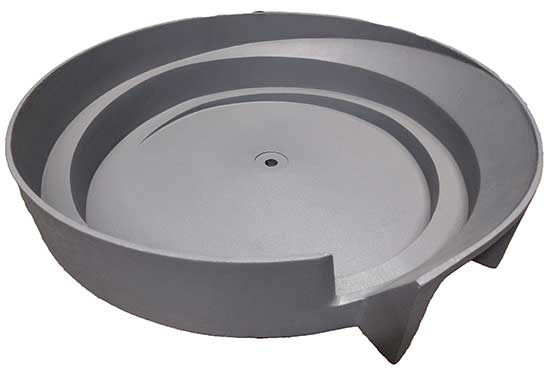

CB204

CB197

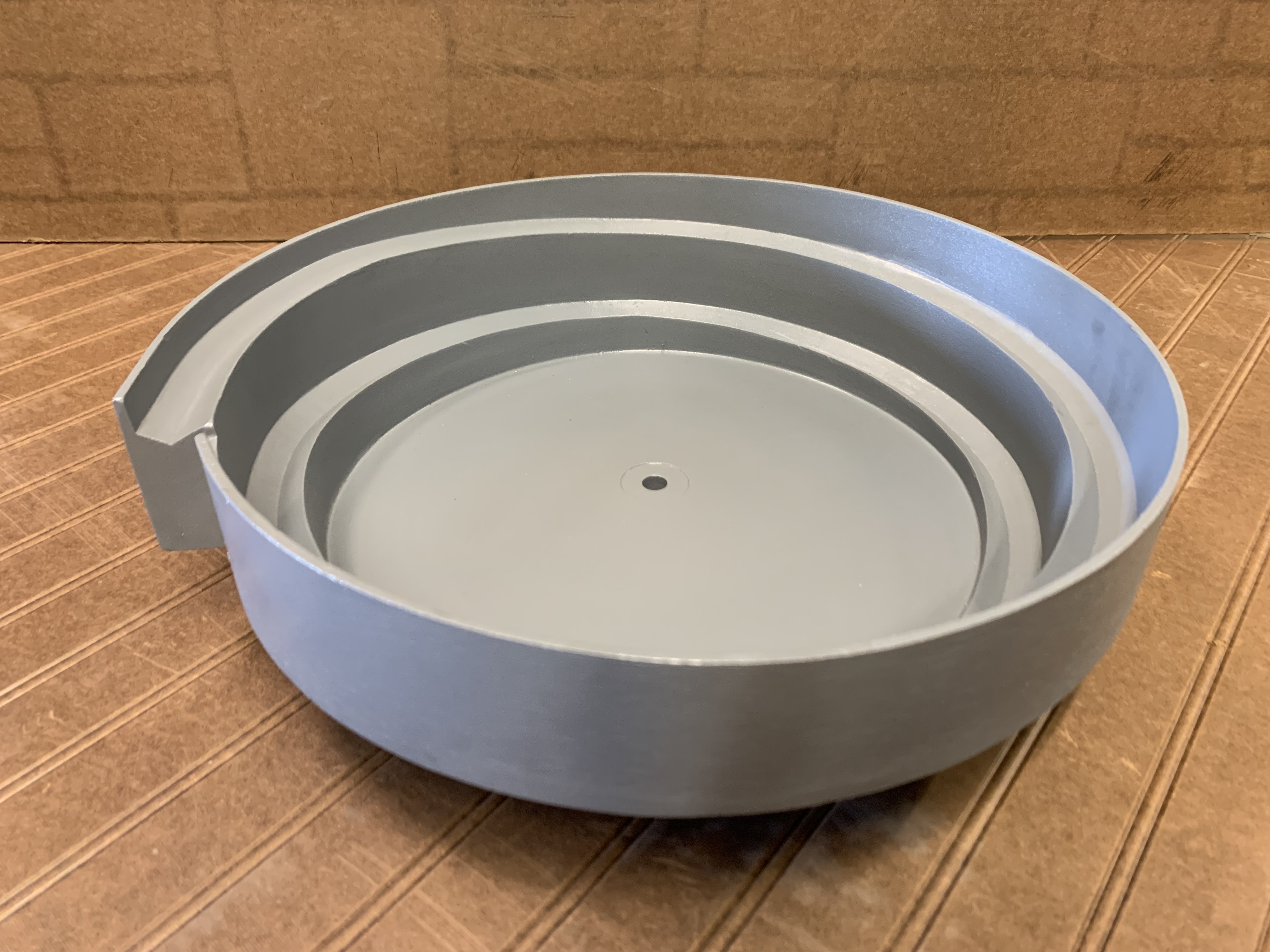

60º Negative Discharge (Lightweight Series)

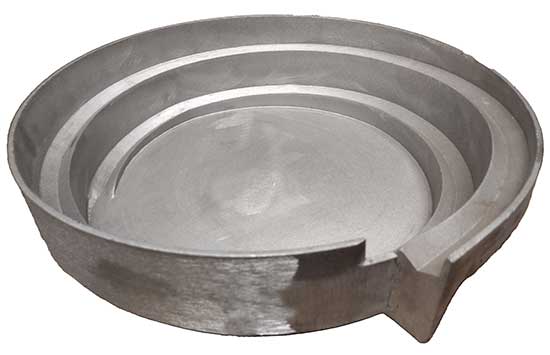

18 1 4 13 1/2

CB205

CB198

120º V-Track (Lightweight Series)
18 1 4 13 1/2

CB256

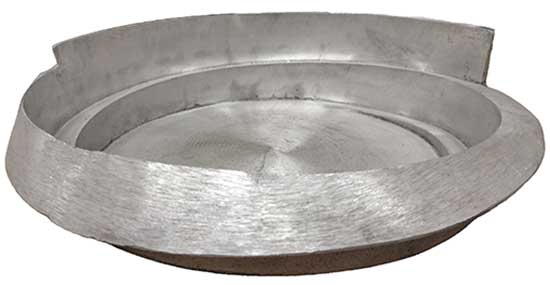

CB255

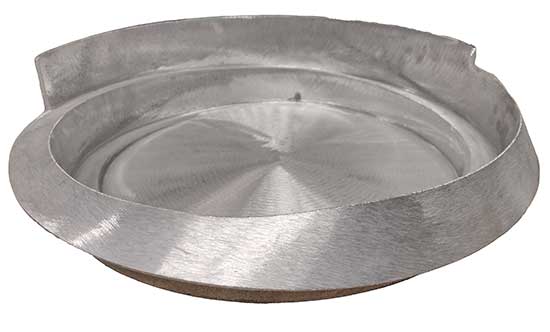

60º High Positive (Lightweight Series)
18 1 4 16 1/2

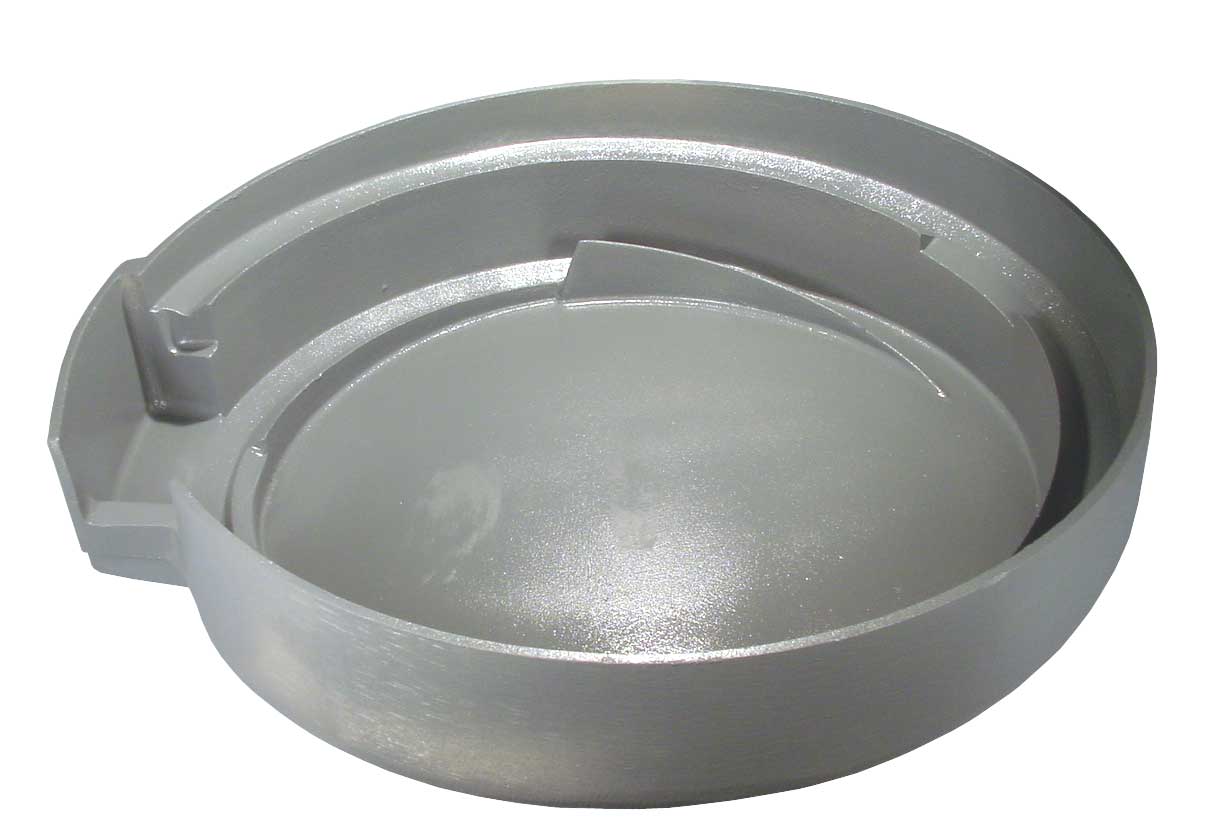

CB239

CB241

120º V-Track with Pocket Cast in Discharge

Note: If a picture of the bowl you want is not available, please refer to the model's opposite clock operation as either picture is a mirror image of the other.



Dimensional Drawings for 10-18" Bowls (DWG)

CB034
5/15/2017, 12:53 PM
CB038
5/15/2017, 12:54 PM

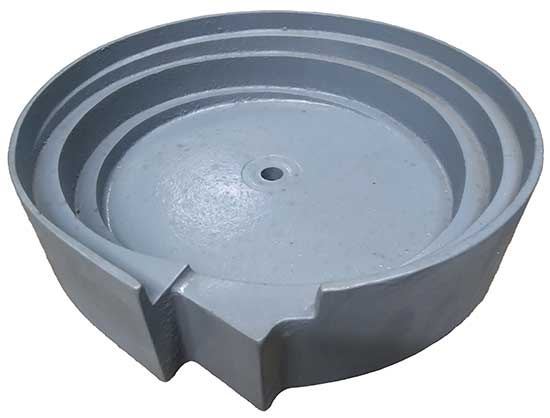

CB053
5/15/2017, 1:39 PM
CB056
5/15/2017, 12:54 PM

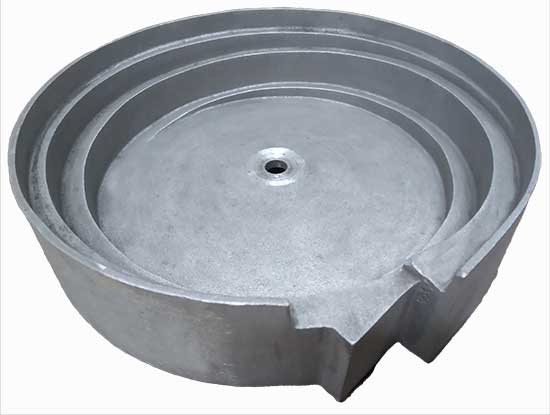

CB058
5/15/2017, 12:55 PM
CB083
5/15/2017, 12:56 PM
CB088
5/15/2017, 12:56 PM
CB089
5/15/2017, 12:57 PM
CB130
5/15/2017, 12:57 PM
CB131
5/15/2017, 12:58 PM

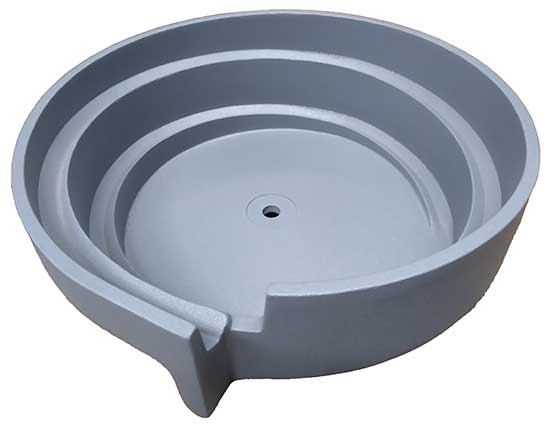

CB138
