Direction of Drive Unit

Depending on the setup of your automation system you will want your bowl to feed parts in either a clockwise or counter clockwise direction. The pictures below illustrate how to determine which way the driver unit will move your part.

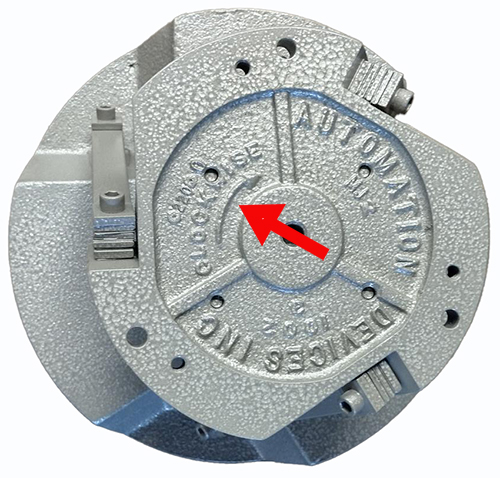

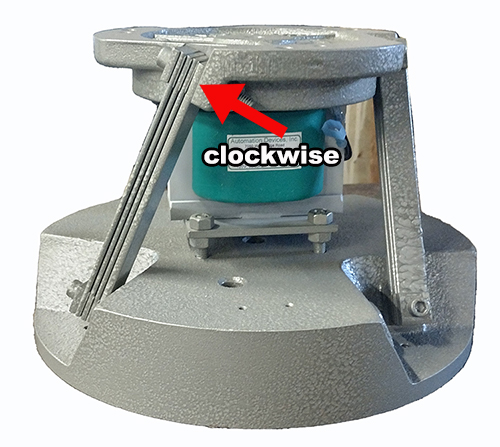

Driver Unit Top Clockwise                   Drive unit side view clockwise

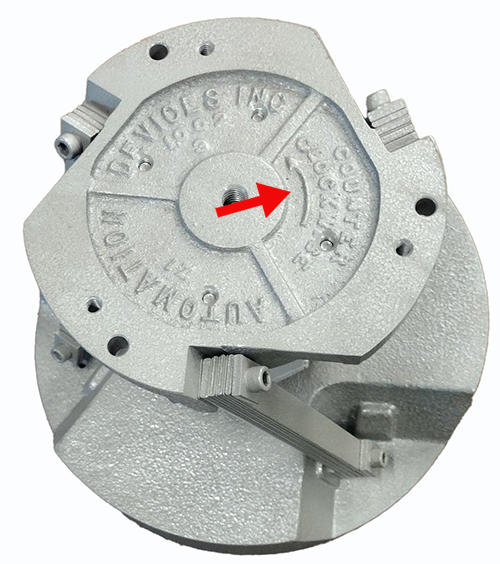

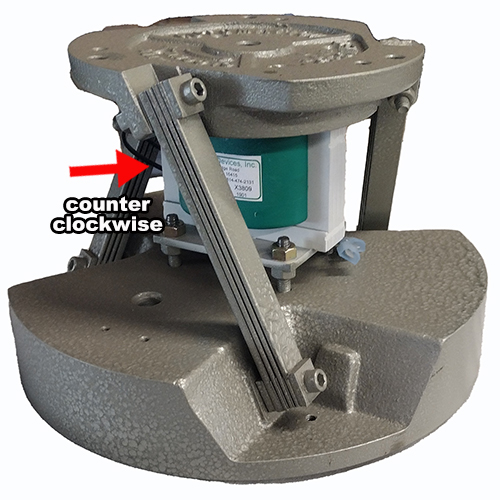

Drive unit top counter clockwise        Drive unit side counter clockwise
